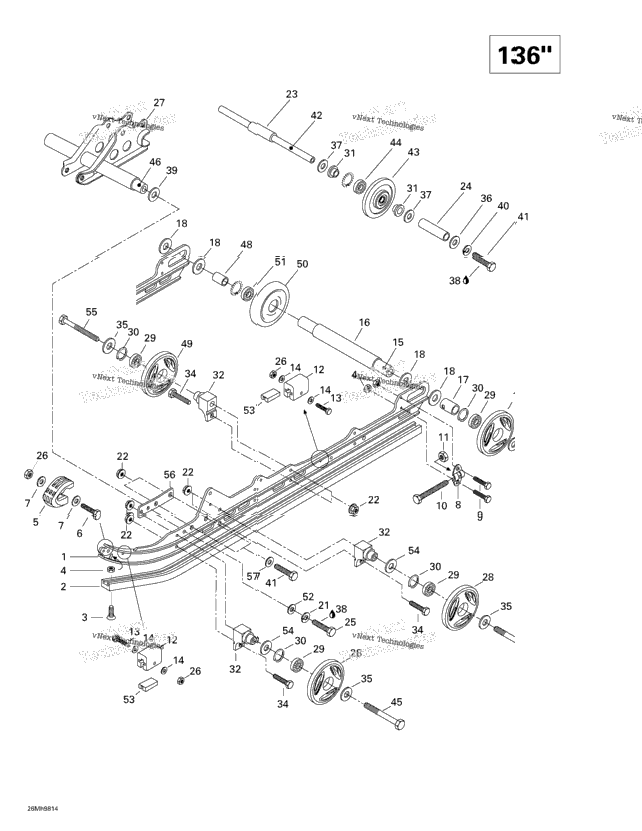

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 503181700 | Runner Formula III 600 LT. | ||
| 2 | 560315500 | Runner Shoe Formula III 600 LT. | 2 |
| 2 | 216362560 | Countersunk Phillips Screw M6 x 25 Formula III 600 LT. | 2 |
| 6 | 228561045 | Elastic Stop Nut M6 Formula III 600 LT. | 6 |
| 572075400 | RUNNER PROTECTOR Formula III 600 LT. | ||
| 222052565 | SCREW-HEX.CAP DIN.933 Formula III 600 LT. | ||
| 4 | 391301600 | Washer Formula III 600 LT. | 4 |
| 503155300 | Tensioner Formula III 600 LT. | ||
| 4 | 222062065 | Hex. Screw M6 x 20 Formula III 600 LT. | 4 |
| 732601017 | Hex. Screw M10 x 110 Formula III 600 LT. | ||
| 2 | 228501045 | Elastic Stop Nut M10 Formula III 600 LT. | 2 |
| 570063000 | Rubber Stopper Formula III 600 LT. | ||
| 222054065 | SCREW-HEX.CAP DIN.931 Formula III 600 LT. | ||
| 8 | 391301700 | Washer Formula III 600 LT. | 8 |
| 1 | 503160700 | Rear Axle Formula III 600 LT. | 1 |
| 503139500 | Interior Spacer Long Formula III 600 LT. | ||
| 2 | 503154800 | Outer Spacer Formula III 600 LT. | 2 |
| 4 | 504108200 | SHIM Formula III 600 LT. | 4 |
| 570066732 | Bond Wheel 165 (Yellow) Formula III 600 LT. | ||
| 2 | 503183300 | Washer Formula III 600 LT. | 2 |
| 224721218 | Lock Washer 12 mm Formula III 600 LT. | ||
| 16 | 228781045 | Elastic Flange Stop Nut M8 Formula III 600 LT. | 16 |
| 503153100 | Spacer Formula III 600 LT. | ||
| 503160200 | External Spacer Formula III 600 LT. | ||
| 222024065 | Hex. Screw M12 x 40 Formula III 600 LT. | ||
| 6 | 228551045 | Elastic Stop Nut M5 Formula III 600 LT. | 6 |
| 503185000 | Welded Shock Support Formula III 600 LT. | ||
| 570066632 | Wheel 135 (Yellow) Formula III 600 LT. | ||
| 8 | 405404500 | Ball Bearing 6205 Formula III 600 LT. | 8 |
| 371901700 | CIRCLIP Formula III 600 LT. | ||
| 4 | 414888400 | Cushion Formula III 600 LT. | 4 |
| 503174600 | SUPPORT Formula III 600 LT. | ||
| 2 | 222088565 | Hex. Screw M8 x 85 Formula III 600 LT. | 2 |
| 6 | 222082565 | Hex. Screw M8 x 25 Formula III 600 LT. | 6 |
| 6 | 503183100 | Washer Formula III 600 LT. | 6 |
| 503169900 | Washer (Black) Formula III 600 LT. | ||
| 4 | 503154000 | WASHER Formula III 600 LT. | 4 |
| 1 | 413707400 | Loctite 271, 10cc Formula III 600 LT. | 1 |
| 503175400 | Hardened Washer Formula III 600 LT. | ||
| 2 | 224781140 | Lock Washer 8 mm Formula III 600 LT. | 2 |
| 6 | 222083065 | Hex. Screw M8 x 30 Formula III 600 LT. | 6 |
| 503160000 | Wheel Support Axle Formula III 600 LT. | ||
| 2 | 572018900 | IDLER WHEEL Includes 43 - 44. Formula III 600 LT. | 2 |
| 2 | 405404500 | Ball Bearing 6205 Formula III 600 LT. | 2 |
| 2 | 222089065 | Hex. Screw M8 x 90 Formula III 600 LT. | 2 |
| 503174900 | Lower Axle Formula III 600 LT. | ||
| 732601002 | Hex. Screw Formula III 600 LT. | ||
| 503139600 | Interior Spacer Short Formula III 600 LT. | ||
| 2 | 570066622 | Bonded Wheel 135 Formula III 600 LT. | 2 |
| 1 | 572045800 | Wheel 165 Includes 50 - 51. Formula III 600 LT. | 1 |
| 1 | 405404500 | Ball Bearing 6205 Formula III 600 LT. | 1 |
| 2 | 224021251 | Flat Washer 12 mm Formula III 600 LT. | 2 |
| 4 | 572084800 | Reinforcement Stopper Formula III 600 LT. | 4 |
| 503173700 | WASHER Formula III 600 LT. | ||
| 2 | 222088065 | Hex. Screw M8 x 80 Formula III 600 LT. | 2 |
| 503171200 | Reinforcement Plate Formula III 600 LT. | ||
| 4 | 224081171 | Flat Washer 8 mm Formula III 600 LT. | 4 |
