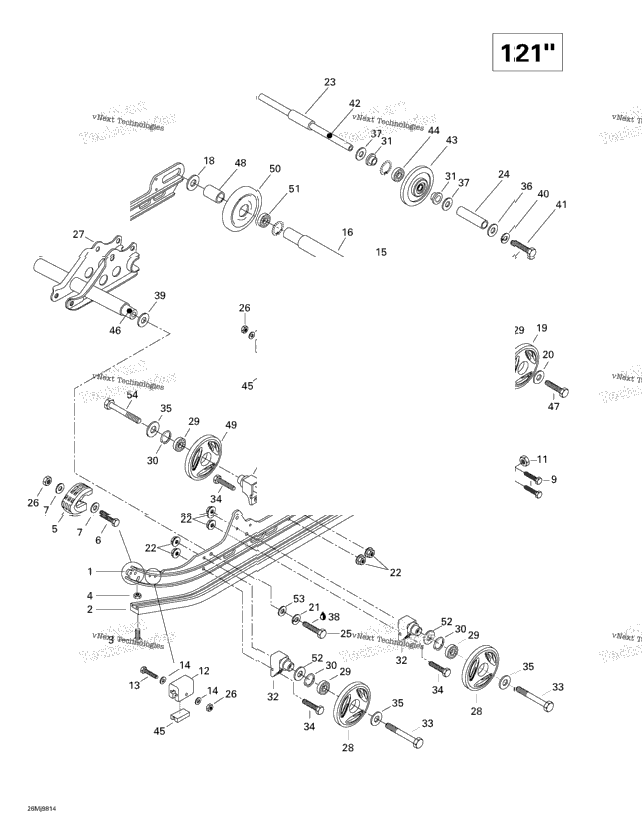

Каталог / Snowmobile / Ski-Doo / 1998 / Formula III 600 R/700 R / Rear Suspension (121’’)

Список запчастей

№	Артикул	Название	Кол-во
	503181600	Runner (121") Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
2	560103200	Runner Shoe (121") Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
2	216362560	Countersunk Phillips Screw M6 x 25 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
6	228561045	Elastic Stop Nut M6 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	6
	572075400	RUNNER PROTECTOR Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
	222052565	SCREW-HEX.CAP DIN.933 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
4	391301600	Washer Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	4
	503155300	Tensioner Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
4	222062065	Hex. Screw M6 x 20 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	4
	732601017	Hex. Screw M10 x 110 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
2	228501045	Elastic Stop Nut M10 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
	570063000	Rubber Stopper Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
	222054065	SCREW-HEX.CAP DIN.931 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
8	391301700	Washer Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	8
1	503160700	Rear Axle Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	1
	503139500	Interior Spacer Long Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
2	503154800	Outer Spacer Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
4	504108200	SHIM Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	4
	570066732	Bond Wheel 165 (Yellow) Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
2	503183300	Washer Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
	224721218	Lock Washer 12 mm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
12	228781045	Elastic Flange Stop Nut M8 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	12
	503153100	Spacer Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
	503160200	External Spacer Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
	222023565	SCREW-HEX.CAP M12 X 35 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
6	228551045	Elastic Stop Nut M5 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	6
	503182800	Welded Shock Support Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
	570066632	Wheel 135 (Yellow) Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
8	405404500	Ball Bearing 6205 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	8
	371901700	CIRCLIP Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
4	414888400	Cushion Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	4
	503174600	SUPPORT Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
4	222088565	Hex. Screw M8 x 85 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	4
6	222082565	Hex. Screw M8 x 25 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	6
6	503183100	Washer Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	6
	503169900	Washer (Black) Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
4	503154000	WASHER Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	4
1	413707400	Loctite 271, 10cc Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	1
	503175400	Hardened Washer Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
2	224781140	Lock Washer 8 mm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
2	222083065	Hex. Screw M8 x 30 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
	503160000	Wheel Support Axle Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
2	572018900	IDLER WHEEL Includes 43 - 44. Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
2	405404500	Ball Bearing 6205 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
4	572084800	Reinforcement Stopper Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	4
	503174800	Lower Axle Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
	732601002	Hex. Screw Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
	503139600	Interior Spacer Short Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
2	570066622	Bonded Wheel 135 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
1	572045800	Wheel 165 Includes 50 - 51. Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	1
1	405404500	Ball Bearing 6205 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	1
	503173700	WASHER Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
2	224021251	Flat Washer 12 mm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
2	222088065	Hex. Screw M8 x 80 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.	2
