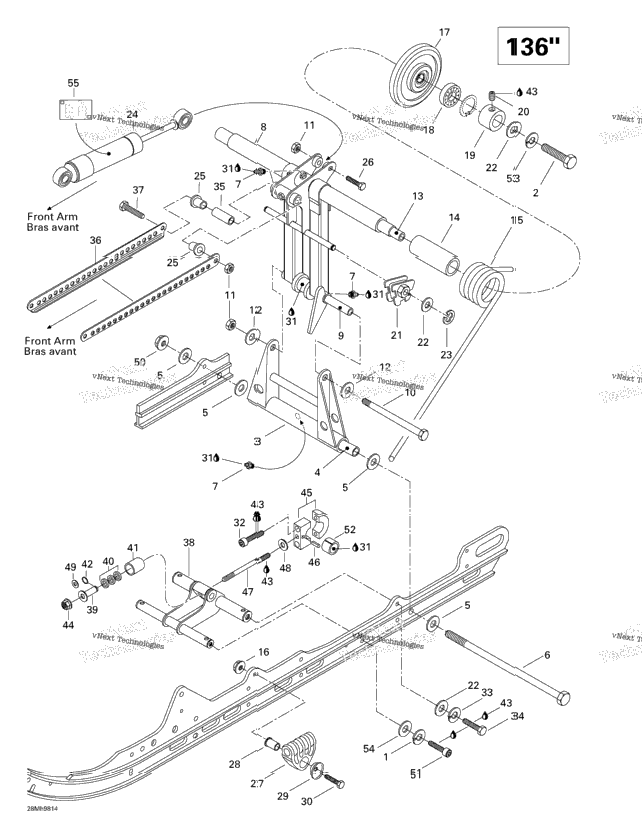

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 Formula III 600 LT. | ||
| 2 | 222003565 | Hex. Screw M10 x 35 Formula III 600 LT. | 2 |
| 503169200 | Pivot Welded Arm Formula III 600 LT. | ||
| 503154703 | Lower Axle Pivot Formula III 600 LT. | ||
| 4 | 224081201 | FLAT WASHER Formula III 600 LT. | 4 |
| 1 | 732601198 | Long Bolt M8 Formula III 600 LT. | 1 |
| 4 | 408200700 | Grease Fitting Formula III 600 LT. | 4 |
| 503171500 | Welded Rear Arm Formula III 600 LT. | ||
| 1 | 503144300 | Upper Axle, Pivot Arm Formula III 600 LT. | 1 |
| 1 | 732601197 | Bolt M8, Short Formula III 600 LT. | 1 |
| 3 | 228581045 | Elastic Stop Nut M8 Formula III 600 LT. | 3 |
| 2 | 224081171 | Flat Washer 8 mm Formula III 600 LT. | 2 |
| 503168700 | Rear Cross Shaft Formula III 600 LT. | ||
| 2 | 572080700 | Bushing Formula III 600 LT. | 2 |
| 415010500 | RH Spring Formula III 600 LT. | ||
| 415010600 | LH Spring Formula III 600 LT. | ||
| 2 | 228761045 | Elastic Flange Nut M6 Formula III 600 LT. | 2 |
| 572091400 | Idler Wheel Includes 17 - 18. Formula III 600 LT. | ||
| 2 | 405404500 | Ball Bearing 6205 Formula III 600 LT. | 2 |
| 2 | 503168800 | Retaining Ring Formula III 600 LT. | 2 |
| 2 | 222560865 | Socket Set Screw M6 Formula III 600 LT. | 2 |
| 1 | 572030800 | LH ADJUST CAM Formula III 600 LT. | 1 |
| 1 | 572030900 | RH ADJUST CAM Formula III 600 LT. | 1 |
| 6 | 224001211 | Flat Washer 10 mm Formula III 600 LT. | 6 |
| 371907100 | e Circlip Formula III 600 LT. | ||
| 415102200 | Shock Formula III 600 LT. | ||
| 415052300 | Plastic Cushion Formula III 600 LT. | ||
| 1 | 222085065 | Hex. Screw M8 x 50 Formula III 600 LT. | 1 |
| 2 | 572056600 | Spring Support Formula III 600 LT. | 2 |
| 503152700 | SPRING AXLE GUIDE Formula III 600 LT. | ||
| 517041700 | Retainer Washer Formula III 600 LT. | ||
| 2 | 222065065 | Hex. Screw M6 x 50 (Europe) Formula III 600 LT. | 2 |
| 413706100 | LITHIUM GREASE, 400 GR Formula III 600 LT. | ||
| 2 | 222983065 | Socket Head Screw M8 x 30 Formula III 600 LT. | 2 |
| 2 | 222003065 | Hex. Screw M10 x 30 Formula III 600 LT. | 2 |
| 503171600 | Tie Rod Shaft Formula III 600 LT. | ||
| 503170900 | Tie Rod Formula III 600 LT. | ||
| 1 | 222089065 | Hex. Screw M8 x 90 Formula III 600 LT. | 1 |
| 503176500 | Bracket Weld Formula III 600 LT. | ||
| 503172900 | Bushing Formula III 600 LT. | ||
| 3 | 570049600 | RUBBER STOPPER Formula III 600 LT. | 3 |
| 503103600 | Cup Formula III 600 LT. | ||
| 371910700 | Circlip Formula III 600 LT. | ||
| 1 | 413707400 | Loctite 271, 10cc Formula III 600 LT. | 1 |
| 1 | 228701045 | Flange Elastic Nut M10 Formula III 600 LT. | 1 |
| 580653800 | Pivot Block Ass'y Includes 45 - 48. Formula III 600 LT. | ||
| 732804011 | Rolled Pin M3 x 18 Formula III 600 LT. | ||
| XXXX | Not Available As Spare Part - Threaded Rod Formula III 600 LT. | ||
| XXXX | Not Available As Spare Part - Washer Formula III 600 LT. | ||
| 503183400 | WASHER Formula III 600 LT. | ||
| 1 | 228781045 | Elastic Flange Stop Nut M8 Formula III 600 LT. | 1 |
| 2 | 222903565 | Socket Head Screw M10 x 35 Formula III 600 LT. | 2 |
| 1 | 415027800 | CUSHION Formula III 600 LT. | 1 |
| 2 | 213000003 | Lock Washer 10 mm Formula III 600 LT. | 2 |
| 503176700 | Hardened Washer 10 mm Formula III 600 LT. | ||
| 418001500 | Shock Decal Formula III 600 LT. |
