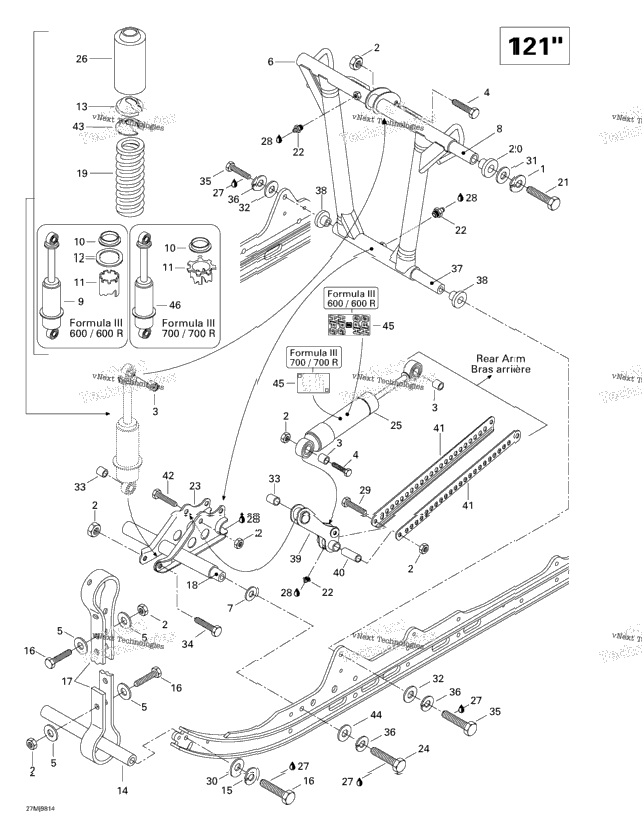

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 213000003 | Lock Washer 10 mm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 2 |
| 9 | 228581045 | Elastic Stop Nut M8 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 9 |
| 3 | 414936000 | Bushing Formula III 600. Formula III 600 R. | 3 |
| 2 | 222084065 | Hex. Screw M8 x 40 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 2 |
| 8 | 517078700 | WASHER Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 8 |
| 503176000 | Welded Front Arm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 503175400 | Hardened Washer Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 503159000 | UPPER AXLE Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 415033500 | Shock Includes 9 - 12. Formula III 600. Formula III 600 R. | ||
| 415052800 | Spring Guide Formula III 600. Formula III 600 R. | ||
| 1 | 503165100 | GUIDE_SPRING Formula III 700. Formula III 700 R. | 1 |
| 415052700 | Cam Formula III 600. Formula III 600 R. | ||
| 503169000 | Cam Formula III 700. Formula III 700 R. | ||
| 415052900 | Thrust Washer Formula III 600. Formula III 600 R. | ||
| 1 | 503140600 | Spring Stopper Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 1 |
| 1 | 503151600 | Axle Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 1 |
| 2 | 224781140 | Lock Washer 8 mm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 2 |
| 6 | 222083065 | Hex. Screw M8 x 30 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 6 |
| 570038800 | Stopper Strap Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 503174800 | Lower Axle Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 415103600 | Spring Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 2 | 415027900 | Cushion Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 2 |
| 2 | 222006065 | Hex. Screw M10 x 60 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 2 |
| 3 | 408200700 | Grease Fitting Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 3 |
| 503182800 | Welded Shock Support Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 222023565 | SCREW-HEX.CAP M12 X 35 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 415101800 | Shock Formula III 600. Formula III 600 R. | ||
| 415101900 | Shock Formula III 700. Formula III 700 R. | ||
| 1 | 517280900 | Protector Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 1 |
| 1 | 413707400 | Loctite 271, 10cc Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 1 |
| 413706100 | LITHIUM GREASE, 400 GR Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 1 | 222087565 | Hex. Screw M8 x 75 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 1 |
| 2 | 224081171 | Flat Washer 8 mm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 2 |
| 2 | 224001211 | Flat Washer 10 mm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 2 |
| 2 | 224021251 | Flat Washer 12 mm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 2 |
| 414917900 | Cushion Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 1 | 222085565 | Hex. Screw M8 x 55 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 1 |
| 222026065 | Hex. Screw M12 x 60 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 224721218 | Lock Washer 12 mm Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 503182000 | Shaft Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 415026300 | Cushion Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 503158500 | Lever Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 503158600 | Tie Rod Shaft Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 503158700 | Tie Rod Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | ||
| 1 | 222085065 | Hex. Screw M8 x 50 Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 1 |
| 1 | 503141600 | Cap Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R. | 1 |
| 414871400 | HPG Decal Formula III 600. Formula III 600 R. | ||
| 418001500 | Shock Decal Formula III 700. Formula III 700 R. | ||
| 415101700 | Shock Formula III 700. Formula III 700 R. | ||
| 1 | 503189649 | BUSHING (NOT SHOWN) | 1 |
| 503189363 | Bushing |
