Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

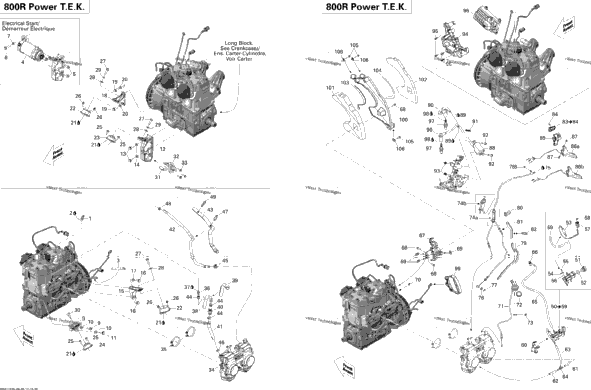

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293700045 | ELBOW FITTING 90 | 1 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 515176858 | Starter Ass'y Electric Start | 1 |
| 2 | 250000248 | Torx Screw M8 X 25, Scotch Grip Electric Start | 2 |
| 1 | 207583544 | Hex Flange Screw M8 X 35, Scotch Grip Electric Start | 1 |
| 1 | 250200008 | Flat Washer With Teflon 8 mm Electric Start | 1 |
| 1 | 512060478 | Rear Support, PTO | 1 |
| 1 | 250000248 | Torx Screw M8 X 25, Scotch Grip | 1 |
| 2 | 234281474 | Conical Spring Washer M8 | 2 |
| 1 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 1 |
| 1 | 512060561 | Front Support, PTO | 1 |
| 2 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 1 | 512060559 | Rear Support, MAG | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 234281474 | Conical Spring Washer M8 | 1 |
| 1 | 512060469 | Front Support, MAG | 1 |
| 293550033 | SUSPENSION GREASE, 10 X 400 G | ||
| 2 | 512060457 | Rubber Mount | 2 |
| 1 | 512060387 | Rubber Mount | 1 |
| 1 | 512060448 | Rubber Mount | 1 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 3 | 207583086 | Hex. Flange Screw M8 X 30, Scotch Grip | 3 |
| 3 | 503183200 | Yellow, Washer | 3 |
| 1 | 250000361 | Hex. Screw M8 | 1 |
| 1 | 512060577 | STOPPER | 1 |
| 1 | 512060576 | Stopper Support | 1 |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 | 3 |
| 403138805 | CARBURATOR KIT, TM40-B397 | ||
| 2 | 512059835 | Gemi Clamp | 2 |
| 1 | 512060196 | MALE CONNECTOR 1/8-27 NPT | 1 |
| 1 | 512060357 | HOSE FORMED ENGINE OUTLET | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 512059324 | Valve 5/16” | 1 |
| 1 | 512060353 | Hose Formed | 1 |
| 1 | 512060347 | HOSE FORMED | 1 |
| 3 | 414655700 | Spring Clamp | 3 |
| 1 | 293650214 | Norma Spring Clamp | 1 |
| 1 | 293650125 | Oetiker Clamp | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293650046 | Oetiker Clamp | 1 |
| 1 | 512060002 | PRESSURE MANIFOLD ASS'Y Includes 50 to 59 | 1 |
| 1 | 270600009 | CAP | 1 |
| 1 | 293300042 | O-RING | 1 |
| 1 | 515175701 | PRESSURE MANIFOLD HARNESS | 1 |
| 1 | 415061600 | SOLENOID LOCK | 1 |
| 1 | 241140060 | Screw K40 X 10 | 1 |
| 404161825 | STARTER JET | ||
| 1 | 515175670 | Female Terminal Housing, 2 Circuits | 1 |
| 1 | 515175675 | Female Lock, 2 Circuits | 1 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 512060229 | DPM SUPPORT | ||
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 414729300 | T-FITTING | 1 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 512060298 | Solenoid Support | 1 |
| 3 | 207652044 | Hex.Flange Screw M5 X 20 | 3 |
| 3 | 250000079 | Panel Nut M5 X 0.8 | 3 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 512060153 | Choke Cable | 1 |
| 1 | 512060016 | Plastic Nut | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 512060547 | Throttle Cable | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 234081100 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 414753500 | Circlip | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 512060313 | Protector | 1 |
| 512060198 | Upper Housing Ass'y Includes 83 to 84 | ||
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 1 | 512060430 | Lower Housing | 1 |
| 1 | 512060616 | Throttle Handle | 1 |
| 2 | 732601143 | Flange Screw | 2 |
| 1 | 512059968 | Ignition Coil | 1 |
| 2 | 512060291 | Cable | 2 |
| 1 | 410914600 | Plastic Clip, Spark Plug Wire | 1 |
| 2 | 207663044 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 512060278 | COIL SUPPORT | 1 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 512060684 | CALIBRATED MODULE, 800R POWERT.E.K. | ||
| 2 | 415128524 | Spark Plug NGK BR9ECS | 2 |
| 1 | 512060136 | Starter Grip | 1 |
| 1 | 512060338 | Noise Shield | 1 |
| 1 | 512060341 | Inner Noise Foam | 1 |
| 1 | 512060342 | Outer Noise Foam | 1 |
| 1 | 512060574 | Heat Shield | 1 |
| 1 | 512060575 | Heat Shield | 1 |
