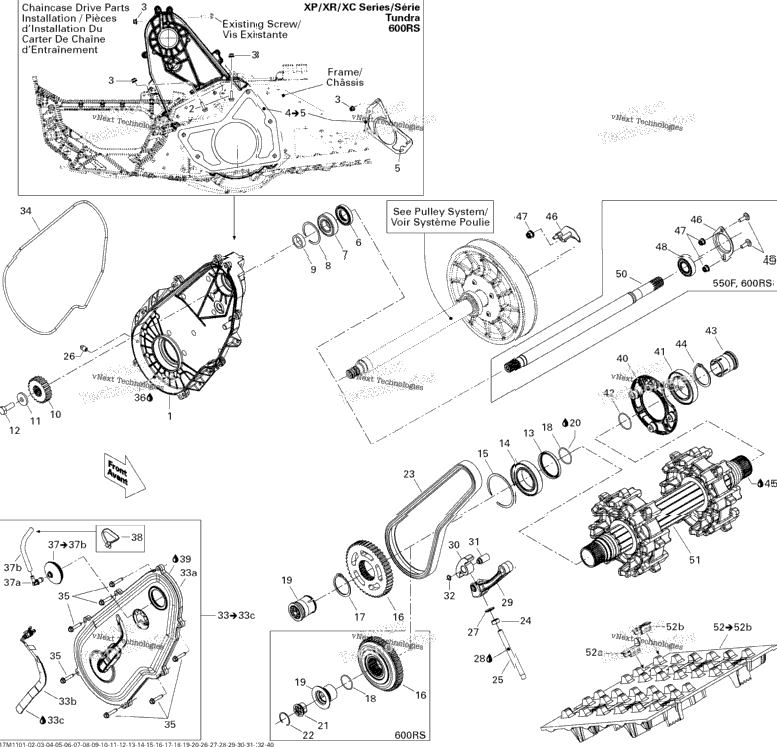

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 504152914 | Chaincase | 1 |
| 3 | 207662034 | Hex. Flange Screw M6 X 20 | 3 |
| 8 | 233261434 | Flange Elastic Nut M6 | 8 |
| 1 | 518325816 | Plate Includes 4 to 5 | 1 |
| XXXX | Not Available As Spare Part - Clinch Stud M6 X 20 | ||
| 1 | 415049300 | Oil Seal | 1 |
| 1 | 293350055 | Ball Bearing | 1 |
| 1 | 504152576 | Circlip | 1 |
| 1 | 504152628 | Shim | 1 |
| 1 | 504096200 | Sprocket, 21 Teeth 21 T, 146'', 163'' Track | 1 |
| 1 | 504152030 | Sprocket, 19 Teeth 19 T, 154'' Track | 1 |
| 1 | 504152784 | Spring Washer M10 | 1 |
| 1 | 207103044 | Hex. Screw M10 X 30 | 1 |
| 1 | 504152571 | Seal | 1 |
| 1 | 293350059 | Ball Bearing | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504152581 | Sprocket, 49 Teeth 49 T, 163''Track | 1 |
| 1 | 504152593 | Sprocket, 45 Teeth 45 T, 146'', 154''Track | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 293300122 | O-Ring | 1 |
| 1 | 504152619 | Magnetic Cap | 1 |
| 293550033 | SUSPENSION GREASE, 10 X 400 G | ||
| XXX | Not Available As Spare Parts | ||
| 1 | 504152579 | Drive Chain, 102 Links 102 Chain Link, 146'', 154''Track | 1 |
| 1 | 504152630 | Drive Chain, 106 Links 106 Chain Link, 163''Track | 1 |
| 1 | 232006414 | Hex. Nut M10 X 1.5 | 1 |
| 1 | 504152602 | Adjustment Screw | 1 |
| 1 | 504152636 | Magnetic Plug 1/8 - 27 NPTF | 1 |
| 1 | 250200100 | Bonded Washer | 1 |
| 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML | ||
| 1 | 504152685 | Chain Tensioner | 1 |
| 1 | 504152739 | Slider Chain | 1 |
| 1 | 504152841 | Tensioner Axle | 1 |
| 1 | 504152282 | Circlip | 1 |
| 1 | 504152916 | Chaincase Cover Ass'y Includes 33 to 33c | 1 |
| 1 | 504152917 | Chaincase Cover | 1 |
| 1 | 504152896 | Rotation Sensor | 1 |
| 1 | 219704460 | Was 293800066 Sealant Loctite 5900, 300 ml | 1 |
| 1 | 293300130 | Tight Seal | 1 |
| 7 | 250000360 | Hex. Flange Screw M6 X 1.0 X 30 | 7 |
| 1 | 504152860 | Cap Not Included 37a: 414580700, 37b 415080200 | 1 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 504152949 | Housing Bearing | 1 |
| 1 | 504152974 | Bearing Housing | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 504153083 | Drive Axle Ass'y | 1 |
| 1 | 504152990 | Track Ass'y 16'' X 146'' X 2.25'' Includes 52 to 52b | 1 |
| 1 | 504152991 | Track Ass'y 16'' X 154'' X 2.25'' Includes 52 to 52b | 1 |
| 1 | 504152992 | Track Ass'y 16'' X 163'' X 2.25'' Includes 52 to 52b | 1 |
| 26 | 415129222 | Track Guide | 26 |
| 26 | 504152652 | Cleat | 26 |
