Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

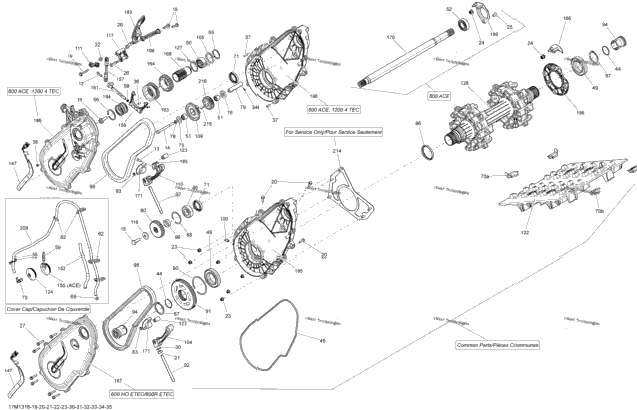

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip | 1 |
| 1 | 205862044 | Socket Head Screw M6 X 20, Scotch Grip | 1 |
| 1 | 207089044 | Hex. Screw M8 X 90 | 1 |
| 1 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip | 1 |
| 1 | 207562544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 207662034 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 232006414 | Hex. Nut M10 X 1.5 | 1 |
| 6 | 233261434 | Flange Elastic Nut M6 | 6 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 1 |
| 250000340 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP | ||
| 7 | 210263080 | Hex. Flange Screw M6 X 30 | 7 |
| 1 | 250200100 | Bonded Washer | 1 |
| 1 | 250400010 | Rolled Pin M3 X 10 | 1 |
| 2 | 250400045 | Spring Pin M5 X 16 | 2 |
| 2 | 250400048 | Dowel Pin | 2 |
| 1 | 250500012 | Allen Drive Plug 1/8-27 PTF | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 293300122 | O-Ring | 1 |
| 1 | 293300130 | Tight Seal | 1 |
| 1 | 293350055 | Ball Bearing | 1 |
| 2 | 293350059 | Ball Bearing | 2 |
| 1 | 293350063 | Needle Bearing | 1 |
| 2 | 293350064 | Needle Bearing | 2 |
| 1 | 293350074 | Ball Bearing | 1 |
| 1 | 293370054 | Circlip | 1 |
| 1 | 293370055 | Circlip | 1 |
| 1 | 293710035 | Straight Fitting | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 414484400 | O-Ring | 1 |
| 1 | 414554800 | Spring Clamp | 1 |
| 1 | 293250175 | Oil Seal | 1 |
| 1 | 504077300 | Spacer | 1 |
| 1 | 504078700 | Ring | 1 |
| 1 | 504082900 | Washer | 1 |
| 1 | 504083100 | Reverse Shaft | 1 |
| 1 | 504152927 | Sprocket, 21 Teeth | 1 |
| 1 | 504152282 | Circlip | 1 |
| 1 | 504152571 | Seal | 1 |
| 2 | 504152572 | Circlip | 2 |
| 1 | 504152576 | Circlip | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504152971 | Sprocket, 51 Teeth | 1 |
| 1 | 504152602 | Adjustment Screw | 1 |
| 1 | 504152619 | Magnetic Cap | 1 |
| 1 | 504152630 | Drive Chain, 106 Links | 1 |
| 1 | 504152636 | Magnetic Plug 1/8 - 27 NPTF | 1 |
| 1 | 504152689 | Washer | 1 |
| 1 | 504152710 | Double Ball Joint | 1 |
| 1 | 504152724 | Sprocket, 29 Teeth | 1 |
| 1 | 504152748 | Chain Tensioner | 1 |
| 1 | 504152766 | Double Ball Joint | 1 |
| 1 | 504152788 | Lever | 1 |
| 1 | 504152907 | Track Ass'y, 16X137X1.2C | 1 |
| 1 | 504152841 | Tensioner Axle | 1 |
| 1 | 504152862 | Washer | 1 |
| 1 | 504153083 | Drive Axle Ass'y | 1 |
| 1 | 504152896 | Rotation Sensor | 1 |
| 1 | 504152900 | Protector Tube | 1 |
| 1 | 504152930 | Cap | 1 |
| 1 | 504152949 | Housing Bearing | 1 |
| 1 | 504152951 | Ball Joint | 1 |
| 1 | 504152954 | Fork Ass'y | 1 |
| 1 | 504152956 | Welded Axle Fork | 1 |
| 1 | 504152960 | Slinding Gear, 27 Teeth | 1 |
| 1 | 504153187 | Bearing Housing | 1 |
| 1 | 504152979 | Coupling | 1 |
| 1 | 504153000 | Countershaft | 1 |
| 1 | 504153031 | Slider Chain Ass'y | 1 |
| 1 | 504153082 | Grip | 1 |
| 1 | 504153122 | Chain Slider | 1 |
| 1 | 504153144 | Chaincase Cover Ass'y | 1 |
| 1 | 504153179 | Spring Release | 1 |
| 1 | 504153184 | Chaincase | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 518325816 | Plate | 1 |
| 1 | 570048600 | Alignement Rod | 1 |
| 1 | 581096900 | Sprock Ass'y, 19 Teeth | 1 |
| 28 | 415129222 | Track Guide | 28 |
| 26 | 504152652 | Cleat | 26 |
