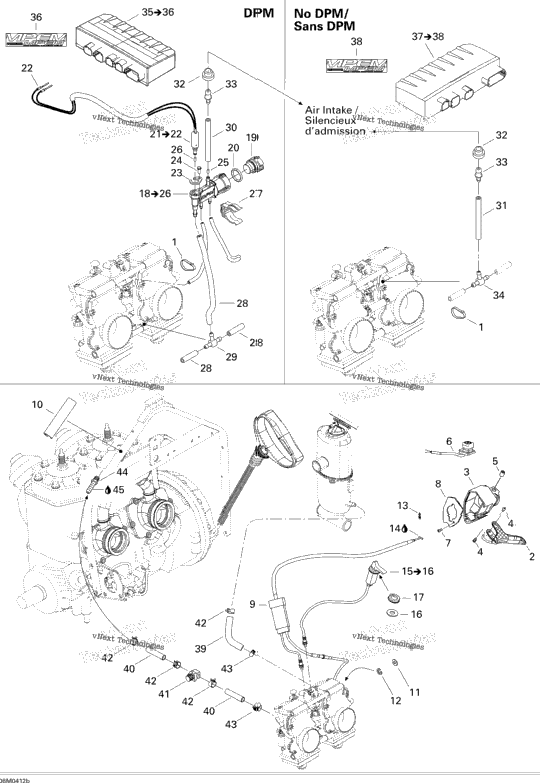

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 512059811 | Handle Ass’Y, 28 mm X, Highmark X & HM Xtreme | 1 |
| 1 | 512059891 | Handle Ass'y Sport, Adrenaline & Highmark | 1 |
| 1 | 512059295 | Throttle Housing | 1 |
| 2 | 732601143 | Flange Screw | 2 |
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 1 | 515176091 | Kill Switch Sport, Adrenaline & Highmark | 1 |
| 1 | 515176092 | Kill Switch X, Highmark X & HM Xtreme | 1 |
| 1 | 414473200 | Screw | 1 |
| 1 | 512059507 | Plate | 1 |
| 512059879 | THROTTLE CABLE Sport, Adrenaline & Highmark | ||
| 512059880 | THROTTLE CABLE X, Highmark X & HM Xtreme | ||
| 1 | 512059750 | PROTECTOR | 1 |
| 1 | 234081100 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 414753500 | Circlip | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 512059266 | CHOKE CABLE Includes items 15 to 16 | ||
| 394103300 | Lock Washer, Interior Teeth | ||
| 1 | 512059094 | PLASTIC NUT | 1 |
| 1 | 512059700 | Pressure Manifold Ass’Y With DPM / Includes items 18 to 26 | 1 |
| 1 | 270600009 | CAP | 1 |
| 1 | 293300042 | O-RING | 1 |
| 1 | 515175701 | PRESSURE MANIFOLD HARNESS Includes items 21 to 22 | 1 |
| 2 | 278000632 | Female Terminal | 2 |
| 1 | 415061600 | SOLENOID LOCK | 1 |
| 1 | 241140060 | Screw K40 X 10 | 1 |
| XXXX | Not Available As Spare Part - Starter Jet | ||
| 404161825 | STARTER JET | ||
| 1 | 512058919 | SUPPORT With DPM | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long With DPM | 1 |
| 1 | 414729300 | T-FITTING With DPM | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long Without DPM | 1 |
| 1 | 512059931 | GROMMET | 1 |
| 1 | 293710035 | Straight Fitting | 1 |
| 1 | 572045500 | T-Fitting Without DPM | 1 |
| 512059866 | Calibrated Module Includes items 35 to 36 / 600 H.O. (RER) With DPM | ||
| 512059868 | Calibrated Module Includes items 35 to 36 / 800 H.O. (RER) With DPM | ||
| 516000245 | Electrical Box Decal | ||
| 1 | 512059870 | CALIBRATED MODULE Includes items 37 to 38 / 800 H.O. Without DPM | 1 |
| 512059871 | Calibrated Module Includes items 37 to 38 / 800 H.O. (RER) Wihout DPM | ||
| 1 | 509000171 | FORMED HOSE | 1 |
| 509000093 | Hose 8 mm | ||
| 1 | 512059324 | Valve 5/16” | 1 |
| 4 | 414655700 | Spring Clamp | 4 |
| 2 | 293650128 | Hose Clamp | 2 |
| 293710082 | STRAIGHT FITTING | ||
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
