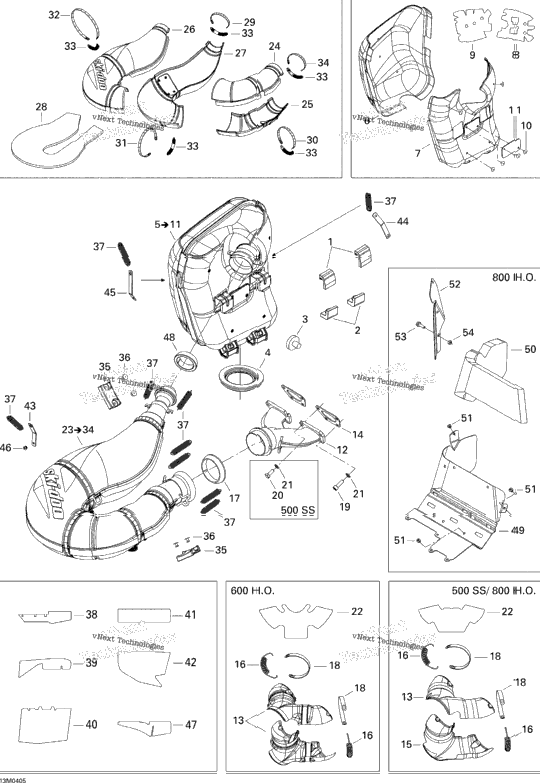

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 514053372 | UPPER STOPPER | 2 |
| 514053373 | Lower Stopper | ||
| 1 | 514053654 | Rubber Bumper | 1 |
| 514053394 | Exhaust Grommet | ||
| 514053726 | Muffler Ass'y 500 SS / Includes items 5 to 11 | ||
| 514053729 | Muffler Ass'y 600 H.O. / Includes items 5 to 11 | ||
| 514053746 | Muffler Ass'y 800 H.O. / Includes items 5 to 11 | ||
| 514053563 | RH Heat Shield | ||
| 514053585 | LH Heat Shield | ||
| 1 | 514053590 | LH INSULATING WOOL | 1 |
| 1 | 514053589 | RH INSULATING WOOL | 1 |
| 11 | 390910000 | Pop Rivet 3/16” | 11 |
| 514053429 | Reinforcement | ||
| 1 | 420673070 | Exhaust Manifold 600 H.O. | 1 |
| 1 | 420673130 | Exhaust Manifold 500 SS | 1 |
| 1 | 420973713 | EXHAUST MANIFOLD 800 H.O. | 1 |
| 514053593 | Enveloppe, Exhaust Manifold 600 H.O. | ||
| 1 | 514053831 | UPPER ENVELOPPE, EXHAUST MANIFOLD 500 SS & 800 H.O. | 1 |
| 2 | 420850552 | Gasket 600 H.O. | 2 |
| 2 | 420931610 | Gasket 500 SS | 2 |
| 2 | 420931850 | Gasket 800 H.O. | 2 |
| 1 | 514053830 | LOWER ENVELOPPE, EXHAUST MANIFOLD 500 SS & 800 H.O. | 1 |
| 2 | 514053643 | Spring | 2 |
| 1 | 514053487 | Exhaust Gasket | 1 |
| 2 | 514053603 | RETAINING STRAP | 2 |
| 8 | 205062044 | Socket Head Screw M6 X 20 600 H.O. & 800 H.O. | 8 |
| 6 | 205082544 | Socket Head Screw M8 X 25 500 SS | 6 |
| 2 | 207182044 | Hex. Screw M8 X 20 500 SS | 2 |
| 8 | 234161471 | Lock Washer M6, Black 600 H.O. & 800 H.O. | 8 |
| 8 | 514053837 | Washer 500 SS | 8 |
| 514053284 | Insulating Wool 500 SS & 800 H.O. | ||
| 2 | 514053588 | INSULATING WOOL 600 H.O. | 2 |
| 514053732 | Tuned Pipe Ass'y 500 SS / Includes items 23 to 34 | ||
| 1 | 514053735 | TUNED PIPE ASS'Y 600 H.O. / Includes items 23 to 34 | 1 |
| 1 | 514053749 | TUNED PIPE ASS'Y 800 H.O. / Includes items 23 to 34 | 1 |
| 514053609 | Upper Front Half Envelope | ||
| 514053610 | Lower Front Half Envelope | ||
| 514053612 | UPPER REAR HALF ENVELOPE | ||
| 1 | 514053613 | LOWER REAR HALF ENVELOPE | 1 |
| 2 | 514053584 | INSULATING WOOL | 2 |
| 1 | 514053437 | RETAINING STRAP | 1 |
| 1 | 514053500 | RETAINING STRAP | 1 |
| 1 | 514053534 | RETAINING STRAP | 1 |
| 1 | 514053535 | RETAINING STRAP | 1 |
| 5 | 514053643 | Spring | 5 |
| 1 | 514053536 | Retaining Strap | 1 |
| 2 | 514053352 | BUMPER | 2 |
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
| 9 | 415107100 | Spring | 9 |
| 1 | 514053560 | REFLECTIVE SHEET | 1 |
| 514053622 | Reflective Sheet | ||
| 514053561 | Reflective Sheet | ||
| 514053392 | Reflective Sheet | ||
| 1 | 514053562 | REFLECTIVE SHEET | 1 |
| 1 | 514049700 | SPRING BRACKET | 1 |
| 1 | 514053725 | SPRING BRACKET | 1 |
| 1 | 514053393 | Spring Bracket | 1 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 514053673 | REFLECTIVE SHEET | 1 |
| 1 | 514053812 | Exhaust Gasket | 1 |
| 514053872 | Acoustic Plate 800 H.O. | ||
| 514053875 | Acoustic Foam 800 H.O. | ||
| 3 | 390402200 | Pop Rivet 3/16" 800 H.O. | 3 |
| 1 | 514053876 | HEAT DEFLECTOR 800 H.O. | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 800 H.O. | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 800 H.O. | 1 |
