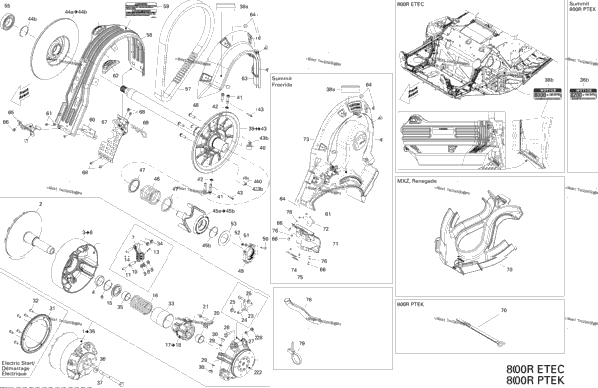

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y Includes 1 to 35 | ||
| 1 | 417223232 | Fixed Flange Ass'y | 1 |
| 1 | 417223444 | Sliding Flange Ass'y Includes 3 to 6 | 1 |
| 1 | 417223086 | Bushing | 1 |
| 1 | 293370071 | Circlip | 1 |
| 3 | 417222671 | Lever | 3 |
| 3 | 417222947 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417222594 | Pin Freeride 137, Europe 146-154 | 3 |
| 3 | 417223177 | Dowel Pin Ass'y Freeride 146,154 X 2.2 and 2.5 | 3 |
| 1 | 417222595 | Threaded Pin, M6 Freeride 146,154 X 2.2 and 2.5 | 1 |
| XXX | Not Available As Spare Parts Freeride 137 | ||
| 1 | 250000407 | SOCKET SET SCREW M6 X 12 Freeride 146,154 X 2.2 and 2.5 | 1 |
| XXX | Not Available As Spare Parts Freeride 146,154 Europe | ||
| 3 | 250400060 | Cotter Pin | 3 |
| 3 | 417223164 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 415034900 | Spring, Violet/blue Freeride 137 | 1 |
| 1 | 414949500 | Spring, Violet/pink Freeride 146,154 X 2.2 and 2.5 | 1 |
| 1 | 414742100 | SPRING YELLOW/GREEN Freeride 146,154 Europe | 1 |
| 1 | 417222759 | Spring Cover Ass'y Includes 17 to 18 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 1 | 417223666 | Governor Cup Ass'y | 1 |
| 3 | 417222508 | Ramp 413 Freeride 137, Europe 146-154 | 3 |
| 3 | 417223098 | Ramp 441 Freeride 146,154 X 2.2 and 2.5 | 3 |
| 3 | 250400050 | Spring Pin M10 X 22 | 3 |
| 6 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip | 6 |
| 3 | 417223501 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417223271 | Slider Shoe | 6 |
| 1 | 417222952 | Ring Gear | 1 |
| 6 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000416 | Serrated Hex. Flange Bolt M6 | 6 |
| 1 | 417223471 | Bushing | 1 |
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417300409 | TRA 7 Bolt (M14 X 153.5 mm) | 1 |
| 1 | 417127296 | Fixe Flange Ass'y Includes 39 to 43 | 1 |
| 2 | 417127016 | Pulley Roller | 2 |
| 2 | 417127294 | Pivot Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 417222813 | Pin Screw | 2 |
| 1 | 417127118 | Blue Spring | 1 |
| 2 | 417126322 | SWIVEL ABUTMENT | 2 |
| 4 | 250000283 | Torx Screw M8 X 25, Scotch Grip | 4 |
| 417127248 | Adjustment Pulley Ass'y | ||
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 504152574 | Ball Bearing | 1 |
| 1 | 417300391 | Belt | 1 |
| 1 | 417300357 | Belt Guard | 1 |
| 1 | 516004595 | Security Label Decal English | 1 |
| XXX | Not Available As Spare Parts | ||
| 2 | 390909200 | Avex Rivet | 2 |
| 1 | 417300381 | Guide | 1 |
| 6 | 293150103 | Pop Rivet 3/16" | 6 |
| 3 | 293150104 | Pop Rivet 3/16" | 3 |
| 1 | 417300375 | Belt Guard Bracket | 1 |
| 4 | 250000145 | Torx Screw M5 X 14 | 4 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 417300422 | Front Support | 1 |
| 1 | 417300423 | Front Bracket | 1 |
| 1 | 417300420 | CVT Pulley Air Duct | 1 |
| 1 | 417300421 | Reinforcement Plate | 1 |
| 2 | 390909100 | Avex Rivet | 2 |
| 3 | 517225900 | Flat Washer | 3 |
| 1 | 516004542 | English Decal | 1 |
| 1 | 516005118 | RPM Decal, (English Version) | 1 |
| 1 | 417126955 | Sliding Flange Ass'y Includes 44a to 44b | 1 |
| 1 | 293370049 | Circlip | 1 |
| 417126956 | CAM ASS'Y Inccludes 45a to 45b |
