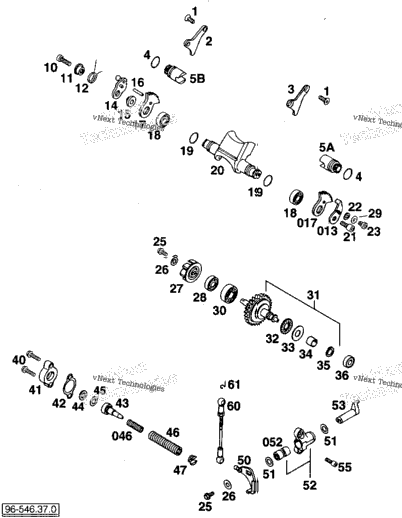

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 0965050103 | FLAT HEAD SCREW DIN0965-M 5X10 | 4 |
| 54637062000 | RETAINING PLATE R/S 250 | ||
| 54637362000 | RETAININGPLATE R/S 300/360/380 | ||
| 54637063000 | RETAINING PLATE L/S 250 | ||
| 54637363000 | RETAININGPLATE L/S300/360/380 | ||
| 2 | 0770160021 | O-RING 16,00X2,00 VITON | 2 |
| 54637061444 | CONTROL ROLLER L/S ''L'' 250'96 96 | ||
| 54637361444 | CONTR.VALVE L/S ''L''300/360/380 96 | ||
| 54637061544 | CONTROL ROLLER CPL. R/S 250'96 96 | ||
| 54637361544 | CONTROL VALVE R/S 300/360/380 96 | ||
| 1 | 0984060203 | AH SCREW DIN6912-M 6X20 8.8 | 1 |
| 1 | 54637067000 | SPRING SLEEVE | 1 |
| 1 | 54637066000 | OVERLOAD SPRING | 1 |
| 1 | 54637085300 | RETAIN.PLATE CONTROL FLAP '92 92 | 1 |
| 1 | 54637065000 | CONTROL LEVER WITH BALL TYPE | 1 |
| 1 | 54637068100 | BUSHING SLEEVE | 1 |
| 0007050160 | CYLINDER PIN DIN 7-5X16MM (M6) | ||
| 54637064000 | GEAR SEGMENT R/S 250 | ||
| 54637064050 | GEAR SEGMENT L/S 250 | ||
| 54637364000 | GEAR SEGMENT R/S 300/360 | ||
| 54637364050 | GEAR SEGMENT L/S 300 | ||
| 0625618021 | BALL BEARING 61802 SKF | ||
| 2 | 0770150151 | O-RING 15,00X1,50 VITON | 2 |
| 54637320500 | CONTROL FLAP 300 96 | ||
| 54737020000 | CONTROL FLAP 360 96 | ||
| 1 | 0912060163 | AH SCREW DIN0912-M 6X16 | 1 |
| 54637056000 | WASHER | ||
| 0984060063 | AH SCREW DIN7984-M 6X 6 | ||
| 2 | 0015050123 | HH COLLAR SCREW M 5X12 WS=8 SW=8 | 2 |
| 2 | 0349000050 | WASHER DIN7349-5X15X2 | 2 |
| 1 | 54635005000 | WATER PUMP WHEEL | 1 |
| 1 | 0760082472 | SHAFT SEAL RING 8X24X7 A DUO | 1 |
| 1 | 0137060003 | spring washer DIN 137 B - 6 (As Required) | 1 |
| 1 | 0625160026 | BALL BEARING 16002 | 1 |
| 54637050344 | CENTRIFUGAL TIMER CPL. 96 | ||
| 1 | 54637097200 | AXIAL NEEDLE BEARING AXK 1226 | 1 |
| 1 | 54637098200 | AXIAL WASHER AS1226 12X26X1 | 1 |
| 54637054300 | SPACER BUSHING | ||
| 1 | 0471120010 | retaining ring DIN 471 12x1 | 1 |
| 54637098000 | GROOVED BALL BEAR. 626.2RS1.C3 | ||
| 2 | 0015050203 | HH COLLAR SCREW M 5X20 WS=8 SW=8 | 2 |
| 54637070000 | CLOSING COVER | ||
| 54637073000 | CLOSING COVER GASKET 1MM | ||
| 54637075000 | SPRING BEARING '91 91 | ||
| 1 | 54637074001 | SHIM WASHER 10X16X1 (As Required) | 1 |
| 54637074005 | SHIM WASHER 10X16X0,5 (As Required) | ||
| 1 | 54637072100 | ADJ.SPRING L=65MM D=2MM '96 96 | 1 |
| 1 | 54637072300 | AUXILIARY SPRING MID. YELLOW 95 | 1 |
| 1 | 54637071200 | SPRING INSERT 91 | 1 |
| 1 | 54637055244 | ANGLE LEVER CPL. '91 91 | 1 |
| 2 | 0988101610 | SHIM WASHER DIN988 10X16X1 | 2 |
| 54637059244 | BEARING SUPPORT | ||
| 2 | 54637096000 | NEEDLE SLEEVE HK 1010 | 2 |
| 54637057200 | CONTROL LEVER 91 | ||
| 2 | 0912050163 | AH SCREW DIN0912-M 5X16 | 2 |
| 54637095344 | CONNECT.ROD CPL. L=109,5MM '91 92 | ||
| 2 | 50237195055 | SECURING DIN-71805-S-8 | 2 |
