Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

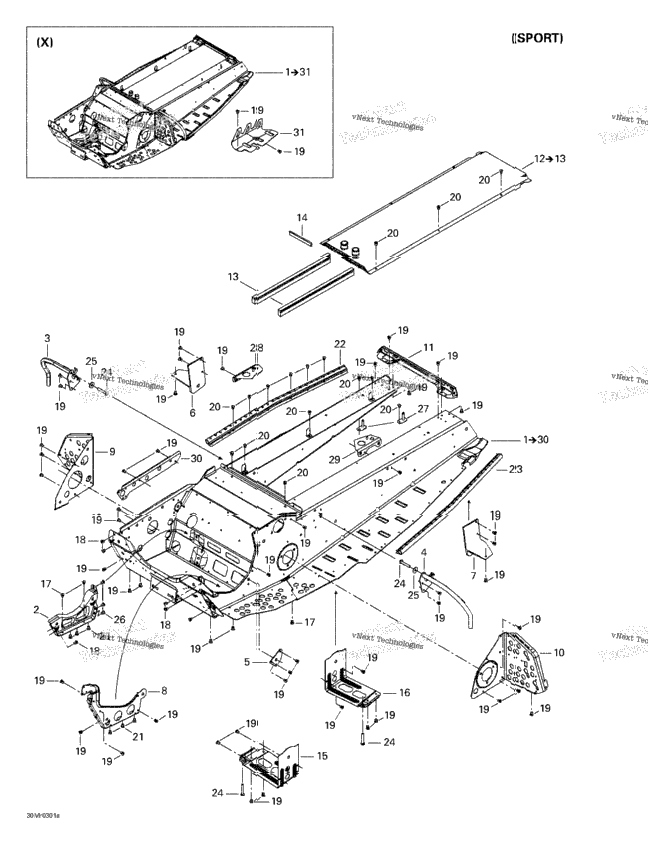

| 415128558 | Frame Ass’Y Includes 1 - 30. | ||
| 415128558 | Frame Ass’Y Includes 1 - 30. | ||
| 415128557 | Frame Ass’Y Includes 1 - 31. | ||
| 415128557 | Frame Ass’Y Includes 1 - 31. | ||
| 1 | 518323346 | ENGINE SUPPORT, BLACK | 1 |
| 1 | 518323346 | ENGINE SUPPORT, BLACK | 1 |
| 518322180 | RH Toe Hold Support | ||
| 518322180 | RH Toe Hold Support | ||
| 518322181 | LH Toe Hold Support | ||
| 518322181 | LH Toe Hold Support | ||
| 1 | 518323507 | OUTER REINFORCEMENT | 1 |
| 1 | 518323507 | OUTER REINFORCEMENT | 1 |
| 518323348 | RH Slide Bracket | ||
| 518323348 | RH Slide Bracket | ||
| 518323350 | LH slide bracket | ||
| 518323350 | LH slide bracket | ||
| 1 | 518323241 | INNER REINFORCEMENT, BLACK | 1 |
| 1 | 518323241 | INNER REINFORCEMENT, BLACK | 1 |
| 518323244 | RH Footrest Reinforcement | ||
| 518323244 | RH Footrest Reinforcement | ||
| 518323245 | LH Footrest Reinforcement | ||
| 518323245 | LH Footrest Reinforcement | ||
| 518323391 | Frame Forming Reinforcement | ||
| 518323391 | Frame Forming Reinforcement | ||
| 518323379 | Rear Radiator Includes 12 - 13. | ||
| 518323379 | Rear Radiator Includes 12 - 13. | ||
| 518321656 | Radiator Protector | ||
| 518321656 | Radiator Protector | ||
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 518322432 | RH Footrest | ||
| 518322432 | RH Footrest | ||
| 518322433 | LH Footrest | ||
| 3 | 390909200 | Avex Rivet | 3 |
| 6 | 390909100 | Avex Rivet | 6 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 6 | 390910300 | HENROB RIVET | 6 |
| 518322186 | RH Roller | ||
| 518323421 | RH Roller | ||
| 518322187 | LH Roller | ||
| 518323422 | LH Roller | ||
| XXXX | Not Available As Spare Part - Socket head screw M8 x 20 (Scotch Grip) | ||
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 3 | 293150096 | Hemlock Rivet, 6.5 mm | 3 |
| 518322791 | Tank Bracket | ||
| 518323336 | RH Frame Reinforcement, Black | ||
| 518323337 | LH Frame Reinforcement, Black | ||
| 1 | 518323328 | RH TUNNEL STIFFENER | 1 |
| 518323306 | RH Tunnel Liner | ||
| 518322433 | LH Footrest | ||
| 3 | 390909200 | Avex Rivet | 3 |
| 6 | 390909100 | Avex Rivet | 6 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 6 | 390910300 | HENROB RIVET | 6 |
| 518322186 | RH Roller | ||
| 518323421 | RH Roller | ||
| 518322187 | LH Roller | ||
| 518323422 | LH Roller | ||
| XXXX | Not Available As Spare Part - Socket head screw M8 x 20 (Scotch Grip) | ||
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 3 | 293150096 | Hemlock Rivet, 6.5 mm | 3 |
| 518322791 | Tank Bracket | ||
| 518323336 | RH Frame Reinforcement, Black | ||
| 518323337 | LH Frame Reinforcement, Black | ||
| 1 | 518323328 | RH TUNNEL STIFFENER | 1 |
| 518323306 | RH Tunnel Liner | ||
| 518323308 | LH Tunnel Liner |
