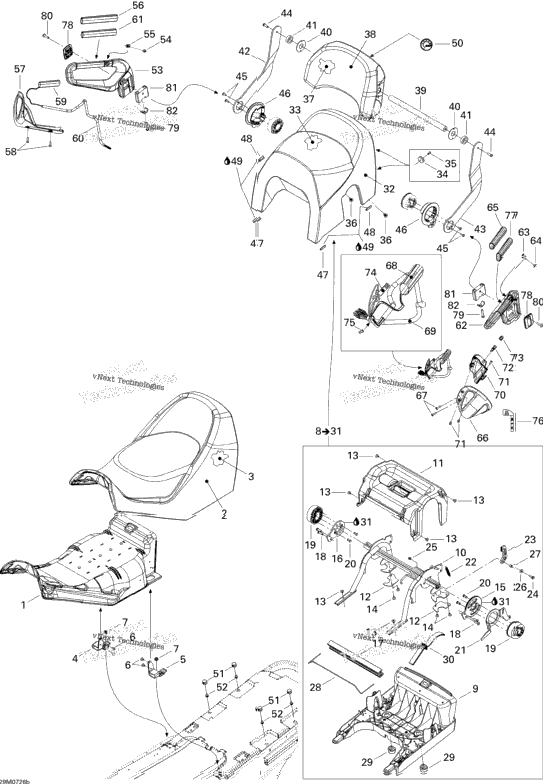

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 510004353 | FRONT SEAT BASE | 1 |
| 510004637 | SEAT COVER, BLACK | ||
| 510004355 | FRONT SEAT FOAM | ||
| 1 | 510004463 | RH FIXATION PLATE, BLACK | 1 |
| 1 | 510004464 | LH FIXATION PLATE, BLACK | 1 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| XXXX | Not Available As Spare Part - Seat Base Ass'y Includes 8 to 31 | ||
| 1 | 510004433 | SEAT BASE | 1 |
| 1 | 510004381 | SUPPORT | 1 |
| 1 | 510004423 | Foam Support | 1 |
| 2 | 510004500 | WEAR PLATE | 2 |
| 6 | 293150104 | Pop Rivet 3/16" | 6 |
| 4 | 293150108 | Pop Rivet 3/16” | 4 |
| 1 | 510004391 | Sprocket | 1 |
| 1 | 510004393 | LINK PLATE | 1 |
| 1 | 510004394 | Link Tube | 1 |
| 4 | 205982586 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP | 4 |
| 510004390 | SPACER | ||
| 4 | 293150129 | STEEL RIVET | 4 |
| 1 | 510004385 | HANDLE, BLACK | 1 |
| 1 | 510004395 | HANDLE SPRING | 1 |
| 1 | 510004392 | Adjustment Pivot | 1 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 224061201 | Flat Washer | 1 |
| 1 | 510004425 | BUSHING | 1 |
| 1 | 510004421 | ANCHOR SPRING | 1 |
| 2 | 708000323 | Rubber Bumper | 2 |
| 510004495 | BELT | ||
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 510004555 | REAR SEAT COVER, BLACK B-160 | 1 |
| 1 | 510004358 | REAR SEAT FOAM | 1 |
| 2 | 415018100 | Rubber Stopper | 2 |
| 2 | 390400700 | Pop Rivet 1/8", Black | 2 |
| 2 | 293730010 | Black Dart | 2 |
| 1 | 510004365 | BACKREST FOAM | 1 |
| 1 | 510004645 | BACKREST COVER, BLACK | 1 |
| 1 | 510004377 | Upper Backrest Axle | 1 |
| 2 | 510004379 | Washer | 2 |
| 2 | 510004378 | Rubber Shim | 2 |
| 1 | 510004373 | RH ARM, BLACK | 1 |
| 1 | 510004375 | LH ARM, BLACK | 1 |
| 2 | 205982586 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP | 2 |
| 4 | 250000198 | TORX TRUSS SCREW M8 X 16 | 4 |
| 2 | 510004384 | SPACER | 2 |
| 510004610 | FRONT SEAT CORNER | ||
| 2 | 510004611 | REAR SEAT CORNER | 2 |
| 219704463 | ADHESIVE LOCTITE 414 28ML | ||
| 219902477 | BRP Logo, Vinyl | ||
| 510004676 | SEAT STUD | ||
| 2 | 207561044 | Flange Screw M6 X 10, Scotch Grip | 2 |
| 1 | 510004367 | RH Handle | 1 |
| 1 | 250000129 | Torx Screw M6 X 16 | 1 |
| 1 | 293100003 | Nut Welded, M6 | 1 |
| 1 | 510004449 | Handle Grip | 1 |
| 1 | 510004415 | RH Deflector | 1 |
| 2 | 250000199 | Screw 25mm | 2 |
| 1 | 515176393 | Heater | 1 |
| 1 | 219704426 | Was 515175506 Tubing | 1 |
| 1 | 510004709 | HANDLE REINFORFORCEMENT | 1 |
| 1 | 510004368 | LH Handle | 1 |
| 1 | 510004416 | LH Deflector | 1 |
| 1 | 510004566 | Switch Housing | 1 |
| 3 | 250000146 | Truss Head Torx Screw K50 X 16 | 3 |
| 1 | 510004413 | Rocker Switch | 1 |
| 1 | 510004414 | Switch Protector | 1 |
| 1 | 515176241 | LH HANDLE HARNESS | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 516002835 | HANDLE HEATER DECAL | 1 |
| 2 | 510004405 | Moulding | 2 |
| 2 | 250000220 | SOCKET HEAD SCREW M8 X 45 | 2 |
| 250000197 | Torx Truss Screw M8 X 30 | ||
| 2 | 510004530 | HANDLE LINK | 2 |
| 510004565 | HANDLE CLAMP |
