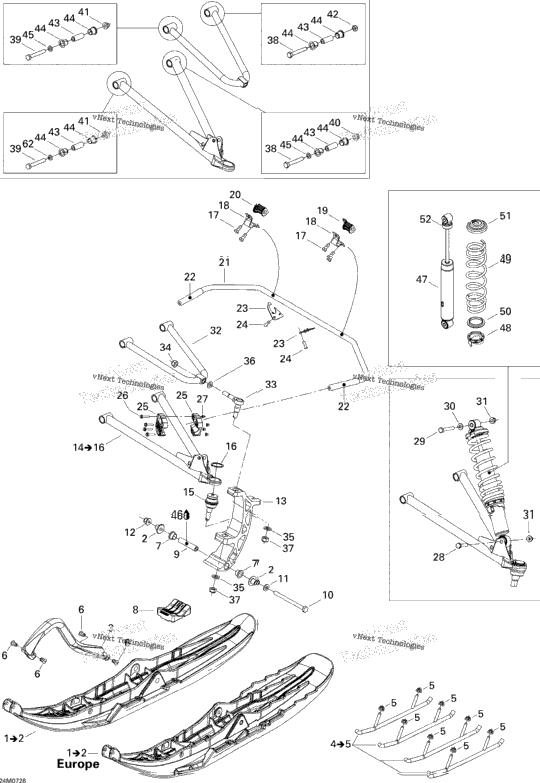

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 505072154 | RH Pilot SKI 5.7, Black Includes 1 to 2 | 1 |
| 1 | 505072155 | LH Pilot SKI 5.7, Black Includes 1 to 2 | 1 |
| 1 | 505072215 | RH Pilot SKI 6.9, Black Includes 1 to 2, Europe | 1 |
| 1 | 505072217 | LH Pilot SKI 6.9, Black Includes 1 to 2, Europe | 1 |
| 2 | 505071781 | Ski Bushing | 2 |
| 2 | 505070963 | Black, Handle | 2 |
| 860511800 | Square Carbide Runner Kit Includes 4 to 5, Europe | ||
| 4 | 860511400 | Carbide Runner Kit Sold In Sets of 2 | 4 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 8 | 505071812 | Retainer 17mm long | 8 |
| 4 | 505070954 | Cushion | 4 |
| 2 | 505071779 | Ski Stopper | 2 |
| 2 | 506133300 | Spacer | 2 |
| 2 | 230003044 | Hex. Screw M10 X 130 | 2 |
| 2 | 732900049 | Washer | 2 |
| 2 | 732610084 | Flange Nut M10 | 2 |
| 2 | 505071232 | SKI LEG | 2 |
| 1 | 860512500 | RH LOWER ARM ASS'Y Includes 14 to 16 | 1 |
| 1 | 860512400 | LH LOWER ARM ASS'Y Includes 14 to 16 | 1 |
| 1 | 505071891 | Ball Joint | 1 |
| 1 | 293370035 | Circlip | 1 |
| 250000118 | Hex. Screw With Nylon | ||
| 2 | 506095800 | CLAMP | 2 |
| 1 | 505070665 | LH BUSHING, 5/8? | 1 |
| 505070881 | RH BUSHING, 5/8 | ||
| 505070659 | Stabilisator, 5/8” | ||
| 2 | 505070750 | STABILISATOR BOOT, 5/8? | 2 |
| 505071253 | PLUG | ||
| 2 | 293150103 | Pop Rivet 3/16" | 2 |
| 505071268 | RH SLIDER HALF | ||
| 2 | 505071269 | LH SLIDER HALF | 2 |
| 8 | 207652544 | Hex. Flange Screw M5 X 25 | 8 |
| 8 | 233251414 | Hex. Flange Elastic Nut M5 | 8 |
| 2 | 207006044 | HEX. SCREW M10 X 60 | 2 |
| 2 | 503189564 | Washer | 2 |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 | 4 |
| 505071756 | UPPER ARM | ||
| 505072049 | Upper Ball Joint | ||
| 2 | 250100089 | Hex. Elastic Hex. Nut M12 | 2 |
| 4 | 234021410 | Flat Washer 12 mm | 4 |
| 2 | 503189276 | Washer | 2 |
| 4 | 250100089 | Hex. Elastic Hex. Nut M12 | 4 |
| 4 | 250000216 | Cone Screw M10 X 75 | 4 |
| 4 | 250000218 | Hex. Screw M10 X 75 | 4 |
| 2 | 250100088 | Hex. Elastic Hex. Nut M10 | 2 |
| 4 | 250100088 | Hex. Elastic Hex. Nut M10 | 4 |
| 1 | 250100088 | Hex. Elastic Hex. Nut M10 Right | 1 |
| 1 | 232501416 | Elastic Flange Nut M10 Left | 1 |
| 8 | 505070960 | Aluminium Bushing | 8 |
| 16 | 505070566 | Arm Bushing | 16 |
| 6 | 503189564 | Washer | 6 |
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 2 | 505071490 | FRONT SHOCK | 2 |
| 2 | 505070150 | Adjustment Cam | 2 |
| 2 | 505071849 | FULL MOON SPRING | 2 |
| 2 | 517184300 | Spring Guide | 2 |
| 2 | 503140600 | Spring Stopper | 2 |
| 2 | 503141600 | Cap | 2 |
