Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

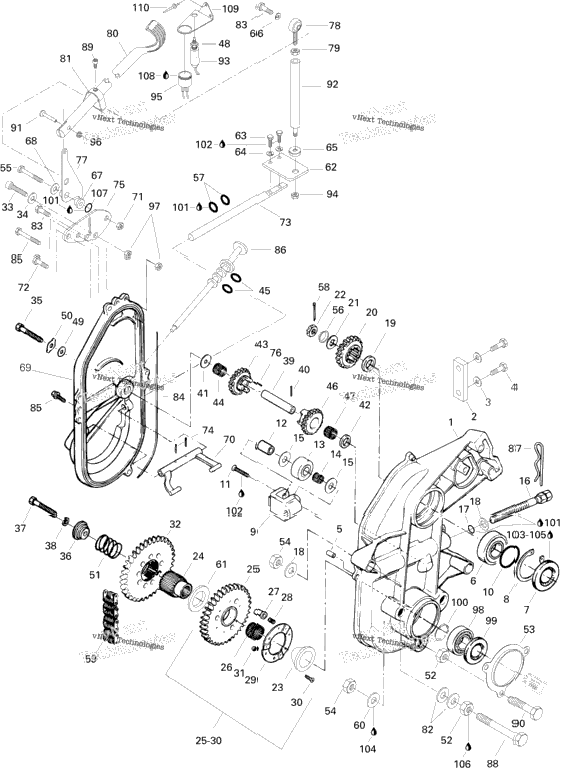

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 371910000 | Circlip | 1 |
| 504096700 | Chaincase | ||
| 504082400 | Chain Slider | ||
| 732900040 | Copper Washer | ||
| 2 | 222061665 | Hex. Screw M6 x 16 | 2 |
| 1 | 732620001 | CYLINDER PIN | 1 |
| 1 | 405404400 | Ball Bearing <<6205>> | 1 |
| 1 | 414882800 | OIL SEAL | 1 |
| 371901700 | CIRCLIP | ||
| 1 | 504081000 | MACHINED TENSIONER | 1 |
| 1 | 732601144 | SCREW | 1 |
| 1 | 504080200 | SPACER | 1 |
| 414531300 | ROLLER | ||
| 1 | 405403000 | NEEDLE BEARING | 1 |
| 2 | 504080300 | WASHER | 2 |
| 732601163 | Tensioner Adjustment Screw | ||
| 1 | 414484400 | O-Ring | 1 |
| 3 | 224001211 | Flat Washer 10 mm | 3 |
| 504093400 | Shim | ||
| 504078400 | Sprocket Narrow (23 Tooth) | ||
| 504087100 | Washer | ||
| 1 | 228911045 | Castellated Nut M20 | 1 |
| 1 | 504076300 | RETAINING RING | 1 |
| 504097700 | Coupling Axle | ||
| 581095900 | SPROCKET ASS'Y (44 TEETH) Includes 25 to 30 | ||
| 1 | 504088200 | SPROCKET (44 TEETH) | 1 |
| 1 | 414772600 | NEEDLE BEARING | 1 |
| 504076800 | DRIVE PIN | ||
| 3 | 414772700 | SPRING | 3 |
| 504076100 | RETAINER RING | ||
| 6 | 222052065 | Screw Hex. M5 x 20 | 6 |
| 228451046 | Nut Lock Hex. M5 | ||
| 1 | 504096800 | SLIDING GEAR, 56 TEETH | 1 |
| XXXX | Not Available As Spare Part - Allen Screw M6 x 16 | ||
| 1 | 224061151 | Washer 6 mm | 1 |
| 1 | 222089065 | Hex. Screw M8 x 90 | 1 |
| 504099100 | Cap | ||
| 1 | 222005065 | Hex. Screw M10 x 50 | 1 |
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 | ||
| 1 | 504083100 | Reverse Shaft | 1 |
| 732804003 | Spring Pin | ||
| 1 | 504077300 | Spacer | 1 |
| 1 | 504078700 | Ring | 1 |
| 581122200 | SPROCK ASS?Y, 19 TEETH Includes 43 to 44 | ||
| 414805000 | NEEDLE BEARING | ||
| 414969400 | O-RING | ||
| 581098200 | Sprocket Ass'y (19 Teeth) Includes 46 to 47 | ||
| 1 | 414773100 | NEEDLE BEARING | 1 |
| 732610075 | Nut | ||
| 1 | 504082900 | Washer | 1 |
| 504087700 | TAB LOCK | ||
| 504099200 | Release Spring | ||
| 504083800 | Spacer | ||
| 501022100 | Protector | ||
| 5 | 228501045 | Elastic Stop Nut M10 | 5 |
| 1 | 222084565 | Screw-Hex.Cap Din.931 | 1 |
| 417000900 | Spring Washer | ||
| 2 | 414773200 | O-RING | 2 |
| 371801300 | Cotter Pin | ||
| 412105500 | Drive Chain, (72 Links-Narrow) | ||
| 732900020 | Copper Washer | ||
| 1 | 504094300 | WASHER | 1 |
| 504094602 | Plate | ||
| 2 | 222051465 | Hex. Screw M5 x 14 | 2 |
| 2 | 224751090 | Lock Washer 5 mm (Black) | 2 |
| 570045700 | Rubber Washer | ||
| 1 | 224761110 | Lock Washer 6 mm | 1 |
| 414927600 | Flanged Bushing | ||
| 1 | 224081201 | FLAT WASHER | 1 |
| 504098500 | Cover Chaincase | ||
| 504075800 | Fork | ||
| 1 | 228581045 | Elastic Stop Nut M8 | 1 |
| 1 | 732600002 | Hex. Screw M6 x 16 | 1 |
| 504142900 | Shaft | ||
| 2 | 414772500 | SPRING PIN | 2 |
| 504095000 | Support-Pivot | ||
| 1 | 570048600 | Alignement Rod | 1 |
| 504094900 | Weld Plate Pivoting | ||
| 414773400 | RH BALL-JOINT | ||
| 1 | 228061045 | Nut M6 | 1 |
| 1 | 570044600 | GRIP | 1 |
| 572071100 | Stopper-Switch | ||
| 1 | 504073700 | WASHER | 1 |
| 2 | 222062065 | Hex. Screw M6 x 20 | 2 |
| 414362300 | O-Ring | ||
| 4 | 732600004 | Hex. Flange Screw M6 x 30 | 4 |
| 572075500 | Filler Cap | ||
| 1 | 414575600 | Hair Pin | 1 |
| 732601111 | Hex. Screw M10 x 70 | ||
| 364901600 | Phillips Screw 8x1/2" | ||
| 732601112 | Hex. Screw M10 x 40 | ||
| 390008900 | Rivet | ||
| 504094700 | Tie Rod (Bar) | ||
| 515162600 | Switch Connector Ass'y | ||
| 1 | 228551045 | Elastic Stop Nut M5 | 1 |
| 414805100 | Back-Up Alarm | ||
| 1 | 389804300 | Push Nut | 1 |
| 2 | 228561045 | Elastic Stop Nut M6 | 2 |
| 405403900 | Ball Bearing 6206 | ||
| 581056500 | OIL SEAL ASS'Y | ||
| 414784900 | Circlip (Int-rior) | ||
| 413706100 | LITHIUM GREASE, 400 GR | ||
| 1 | 413707400 | Loctite 271, 10cc | 1 |
| XXXX | Not Available As Spare Part - Glue-Loctite 7070 | ||
| 219704462 | ADHESIVE LOCTITE 515 50ML | ||
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 1 | 413703000 | Loctite 242, 10 cc | 1 |
| XXX | Not Available As Spare Parts | ||
| XXXX | Not Available As Spare Part - Silicone Sealant |
