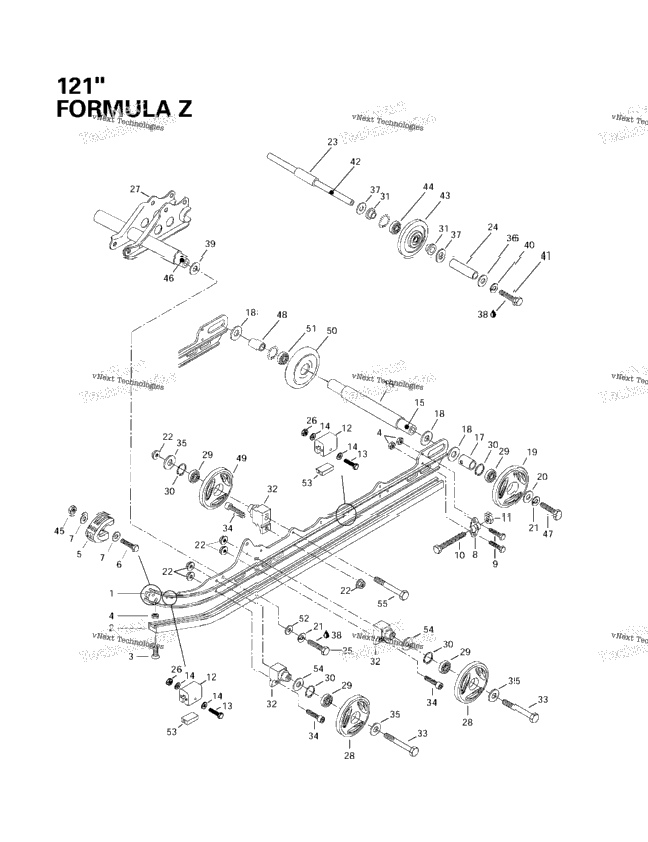

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 503170500 | Runner (121") Formula Z. | ||
| 2 | 560314800 | Runner Shoe (121") Formula Z. | 2 |
| 2 | 216362560 | Countersunk Phillips Screw M6 x 25 Formula Z. | 2 |
| 6 | 228561045 | Elastic Stop Nut M6 Formula Z. | 6 |
| 572075400 | RUNNER PROTECTOR Formula Z. | ||
| 222052565 | SCREW-HEX.CAP DIN.933 Formula Z. | ||
| 4 | 391301600 | Washer Formula Z. | 4 |
| 503155300 | Tensioner Formula Z. | ||
| 4 | 222062065 | Hex. Screw M6 x 20 Formula Z. | 4 |
| 732601017 | Hex. Screw M10 x 110 Formula Z. | ||
| 2 | 228501045 | Elastic Stop Nut M10 Formula Z. | 2 |
| 570063000 | Rubber Stopper Formula Z. | ||
| 222054065 | SCREW-HEX.CAP DIN.931 Formula Z. | ||
| 8 | 391301700 | Washer Formula Z. | 8 |
| 1 | 503160700 | Rear Axle Formula Z. | 1 |
| 503139500 | Interior Spacer Long Formula Z. | ||
| 2 | 503154800 | Outer Spacer Formula Z. | 2 |
| 4 | 504108200 | SHIM Formula Z. | 4 |
| 570045323 | Wheel 165 (Red) Formula Z. | ||
| 503170100 | Washer Formula Z. | ||
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 Formula Z. | ||
| 12 | 228781045 | Elastic Flange Stop Nut M8 Formula Z. | 12 |
| 503160100 | Center Spacer Formula Z. | ||
| 503160200 | External Spacer Formula Z. | ||
| 2 | 222003565 | Hex. Screw M10 x 35 Formula Z. | 2 |
| 4 | 228551045 | Elastic Stop Nut M5 Formula Z. | 4 |
| 503158300 | Welded Shock Support Formula Z. | ||
| 570045223 | Idler Wheel 135 (Red) Formula Z. | ||
| 8 | 405404500 | Ball Bearing 6205 Formula Z. | 8 |
| 371901700 | CIRCLIP Formula Z. | ||
| 4 | 414888400 | Cushion Formula Z. | 4 |
| 503163600 | Support Formula Z. | ||
| 4 | 222088565 | Hex. Screw M8 x 85 Formula Z. | 4 |
| 6 | 222982565 | Socket Head Screw M8 x 25 Formula Z. | 6 |
| 517168700 | Washer Formula Z. | ||
| 503169900 | Washer (Black) Formula Z. | ||
| 4 | 503154000 | WASHER Formula Z. | 4 |
| 1 | 413707400 | Loctite 271, 10cc Formula Z. | 1 |
| 503007900 | Hard Washer Formula Z. | ||
| 2 | 224781140 | Lock Washer 8 mm Formula Z. | 2 |
| 2 | 222083065 | Hex. Screw M8 x 30 Formula Z. | 2 |
| 503160000 | Wheel Support Axle Formula Z. | ||
| 2 | 572018900 | IDLER WHEEL Includes 43 - 44. Formula Z. | 2 |
| 2 | 405404500 | Ball Bearing 6205 Formula Z. | 2 |
| 2 | 228551045 | Elastic Stop Nut M5 Formula Z. | 2 |
| 503152800 | Axle Wheel Formula Z. | ||
| 732601002 | Hex. Screw Formula Z. | ||
| 503139600 | Interior Spacer Short Formula Z. | ||
| 2 | 570045222 | Wheel Bond 135 Formula Z. | 2 |
| 1 | 572045800 | Wheel 165 Includes 50 - 51. Formula Z. | 1 |
| 1 | 405404500 | Ball Bearing 6205 Formula Z. | 1 |
| 2 | 224001211 | Flat Washer 10 mm Formula Z. | 2 |
| 4 | 572084800 | Reinforcement Stopper Formula Z. | 4 |
| 503173700 | WASHER Formula Z. | ||
| 2 | 222088065 | Hex. Screw M8 x 80 Formula Z. | 2 |
