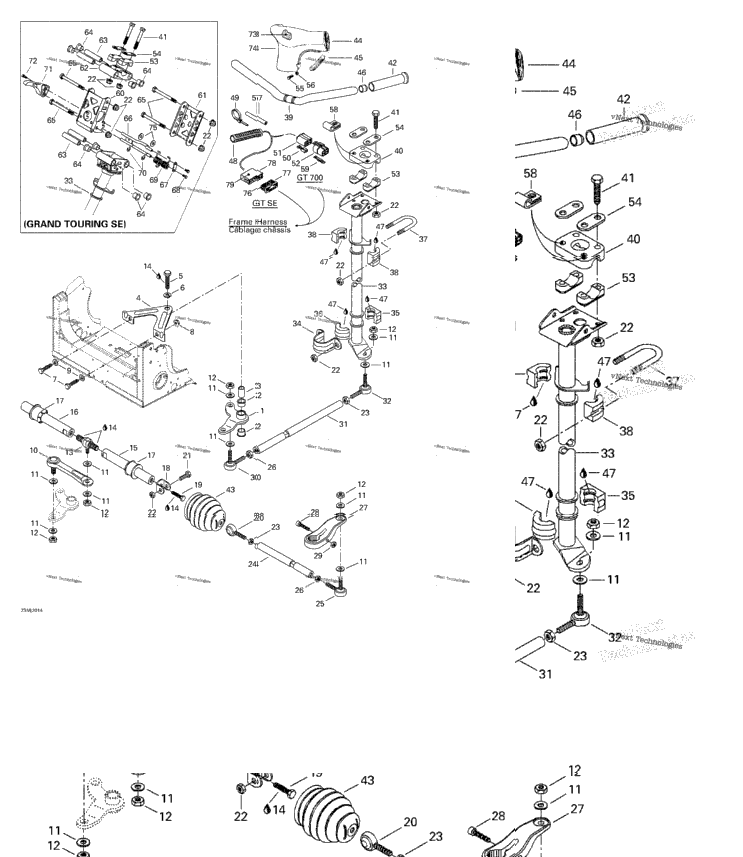

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 506129500 | Pivot Arm | ||
| 2 | 415041100 | CUSHION | 2 |
| 506131500 | Pivot | ||
| 1 | 506138400 | PIVOT SUPPORT | 1 |
| 1 | 207006044 | HEX. SCREW M10 X 60 | 1 |
| 1 | 234101411 | Lock Washer Helical M10 | 1 |
| 2 | 207066044 | Hex. Screw M6 X 60 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 224061121 | Flat Washer | 2 |
| 415059800 | Ball Stud Lever | ||
| 12 | 503175800 | Washer | 12 |
| 6 | 232501416 | Elastic Flange Nut M10 | 6 |
| 415053300 | Ball Joint (Double) | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 506129400 | Sliding Bar (Short) | ||
| 506129402 | Sliding Bar (Long) | ||
| 572108500 | Cushion | ||
| 506138300 | Bracket | ||
| 2 | 207102544 | Hex. Screw M10 X 25 | 2 |
| 415048600 | LH Ball Joint | ||
| 2 | 207084044 | Hex. Screw M8 X 40 | 2 |
| 14 | 232581414 | Hex. Elastic Stop Nut M8 | 14 |
| 3 | 732610011 | LH Hex.. Jam Nut M10 | 3 |
| 506129600 | Tie-Rod | ||
| 2 | 415012400 | Ball Joint | 2 |
| 3 | 732610010 | RH Threaded Hex. Jam Nut M10 | 3 |
| 506151320 | RH Steering Arm GT 700. GT SE. | ||
| 506151300 | RH Steering Arm GT SE Millennium Edition. | ||
| 506151321 | LH Steering Arm GT 700. GT SE. | ||
| 506151301 | LH Steering Arm GT SE Millennium Edition. | ||
| 2 | 205083544 | SOCKET HEAD SCREW M8 X 35 | 2 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 414768000 | RH BALL JOINT | ||
| 506131200 | Tie Rod | ||
| 414768100 | LH BALL JOINT | ||
| 506151169 | Main Tube GT 700. | ||
| 506151165 | Main Tube GT SE. GT SE Millennium Edition. | ||
| 517126200 | Retainer Support | ||
| 572064400 | Bushing | ||
| 1 | 572064500 | BUSHING | 1 |
| 1 | 506060600 | U-clamp | 1 |
| 2 | 572067100 | HALF-BUSHING | 2 |
| 506142000 | Handlebar | ||
| 277000142 | STEERING CLAMP GT 700. | ||
| 4 | 207085544 | Hex. Screw M8 X 55 | 4 |
| 572100500 | HANDLE GRIP | ||
| 570054100 | Tie-Rod Cap | ||
| 506151182 | Steering Padding GT 700. | ||
| 2 | 572106200 | KEYWAY GT 700. | 2 |
| 2 | 572081900 | HANDLEBAR END | 2 |
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 515175418 | Heating Grip GT 700. | ||
| 515175501 | Heater GT SE. GT SE Millennium Edition. | ||
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 2 | 515175253 | FEMALE TERMINAL GT 700. | 2 |
| 1 | 409204900 | FEMALE HOUSING GT 700. | 1 |
| 1 | 409209300 | MALE HOUSING | 1 |
| 2 | 414491600 | Steering Support | 2 |
| 2 | 506151196 | Reinforcement | 2 |
| 2 | 208652044 | Phillips Screw M5 X 20 GT 700. | 2 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 GT 700. | 2 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 2 | 515175507 | Open Clamp GT SE. GT SE Millennium Edition. | 2 |
| 561503400 | MALE TERMINAL (18/16 GA.) | ||
| 1 | 506151156 | FRONT ARM GT SE. GT SE Millennium Edition. | 1 |
| 506151152 | Rear Arm GT SE. GT SE Millennium Edition. | ||
| 506151147 | Clamp GT SE. GT SE Millennium Edition. | ||
| 506151146 | Spacer GT SE. GT SE Millennium Edition. | ||
| 8 | 506151153 | Cushion GT SE. GT SE Millennium Edition. | 8 |
| 207688044 | HEX. FLANGED SCREW M8 X 80 GT SE. GT SE Millennium Edition. | ||
| 506151162 | Lock GT SE. GT SE Millennium Edition. | ||
| 506151240 | Plate GT SE. GT SE Millennium Edition. | ||
| 207141044 | HEX. SCREW M4 X 10 GT SE. GT SE Millennium Edition. | ||
| 1 | 506151219 | SPRING GT SE. GT SE Millennium Edition. | 1 |
| 2 | 414274500 | Circlip GT SE. GT SE Millennium Edition. | 2 |
| 1 | 506151188 | HANDLE GT SE. GT SE Millennium Edition. | 1 |
| 1 | 205041284 | Socket Head Screw M4 X 12 GT SE. GT SE Millennium Edition. | 1 |
| 506151285 | Foam GT SE. GT SE Millennium Edition. | ||
| 506151286 | Cover GT SE. GT SE Millennium Edition. | ||
| 506151302 | Steering Padding Cover GT SE. GT SE Millennium Edition. | ||
| 517302265 | Washer GT SE. GT SE Millennium Edition. | ||
| XXXX | Not Available As Spare Part - Female Terminal GT SE. GT SE Millennium Edition. | ||
| 515175505 | Femelle Terminal Housing (18 Circuits) GT SE. GT SE Millennium Edition. | ||
| 515175502 | Male Terminal Housing (18 Circuits) GT SE. GT SE Millennium Edition. | ||
| 1 | 515175232 | Male Terminal GT SE. GT SE Millennium Edition. | 1 |
