Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

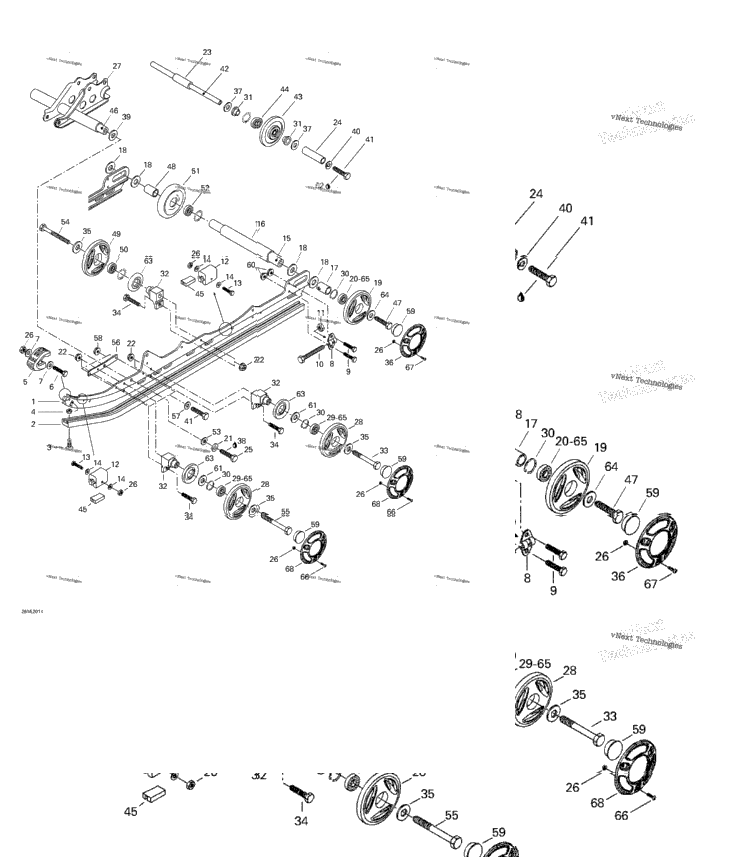

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 503188979 | Runner | ||
| 2 | 560103500 | RUNNER SHOE | 2 |
| 2 | 208562560 | Phillips Screw M6 X 25 | 2 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 572075400 | RUNNER PROTECTOR | ||
| 207152544 | HEX. SCREW M5 X 25 | ||
| 4 | 391301600 | Washer | 4 |
| 503155300 | Tensioner | ||
| 4 | 207162044 | Hex. Screw M6 X 20 | 4 |
| 230100044 | HEX. SCREW M10 X 100 | ||
| 2 | 233601416 | Elastic Locking Nut M10 X 1.5 | 2 |
| 570063000 | Rubber Stopper | ||
| 207054044 | HEX. SCREW M5 X 40 | ||
| 8 | 391301700 | Washer | 8 |
| 1 | 503160700 | Rear Axle | 1 |
| 503183000 | CENTRAL SPACER | ||
| 2 | 503189075 | Outer Spacer | 2 |
| 4 | 503180400 | Washer | 4 |
| 2 | 503189374 | Wheel 165 (Full Moon) Includes 19 - 20. GT 700. | 2 |
| 503189508 | Wheel 165 Includes 19 - 20. GT SE Millennium Edition. | ||
| 503188948 | Wheel 165 (Red) GT SE. | ||
| 2 | 405404500 | Ball Bearing 6205 GT 700. | 2 |
| 234120602 | Lock Washer 12 mm | ||
| 12 | 233281414 | Hex. Flange Elastic Nut M8 | 12 |
| 503153100 | Spacer | ||
| 503188951 | External Spacer | ||
| 207124044 | Hex. Screw M12 x 40 | ||
| 24 | 232551414 | Elastic Stop Nut M5 | 24 |
| 503188976 | Welded Shock Support | ||
| 503189375 | Wheel 139 (Full Moon) Includes 28 - 29. GT 700. | ||
| 503189507 | Cap Wheel 139 mm Includes 28 - 29. GT SE Millennium Edition. | ||
| 503188947 | Wheel 139 (Red) GT SE. | ||
| 371901700 | CIRCLIP | ||
| 4 | 415112700 | Cushion | 4 |
| 503174600 | SUPPORT | ||
| 2 | 207088544 | HEX. SCREW M8 X 85 | 2 |
| 6 | 207182544 | Hex. Screw M8 X 25 | 6 |
| 6 | 503183100 | Washer | 6 |
| 503189510 | Chrome Cap GT SE Millennium Edition. | ||
| 4 | 503154000 | WASHER | 4 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 503175400 | Hardened Washer | ||
| 2 | 234181401 | Lock Washer 8 mm | 2 |
| 6 | 207183044 | Hex. Screw M8 X 30 | 6 |
| 503160000 | Wheel Support Axle | ||
| 2 | 572018900 | IDLER WHEEL Includes 43 - 44. | 2 |
| 2 | 405404500 | Ball Bearing 6205 | 2 |
| 4 | 572084800 | Reinforcement Stopper | 4 |
| 503174900 | Lower Axle | ||
| 2 | 250000019 | Hex. Screw With Nylon | 2 |
| 1 | 503182900 | Inner Spacer | 1 |
| 2 | 503188998 | Wheel 139 Includes 49 - 50. | 2 |
| 1 | 503189476 | Bond Wheel 165 Includes 51 - 52. | 1 |
| 1 | 405404500 | Ball Bearing 6205 | 1 |
| 2 | 234021410 | Flat Washer 12 mm | 2 |
| 2 | 207088044 | Hex. Screw M8 X 80 | 2 |
| 2 | 207089044 | Hex. Screw M8 X 90 | 2 |
| 503189060 | Reinforcement Plate | ||
| 4 | 234081410 | Flat Washer 8 mm | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 6 | 570063600 | Wheel Cap | 6 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 503173700 | WASHER | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 6 | 572089000 | LABYRINTH SEAL | 6 |
| 2 | 503183300 | Washer | 2 |
| 6 | 405404500 | Ball Bearing 6205 GT SE. | 6 |
| 208652060 | SCREW-PAN HD.PH.DIN.7985A-A2 GT SE Millennium Edition. | ||
| 6 | 208652560 | PHILLIPS SCREW M5 X 25 GT SE Millennium Edition. | 6 |
| 503189509 | Chrome Cap GT SE Millennium Edition. |
