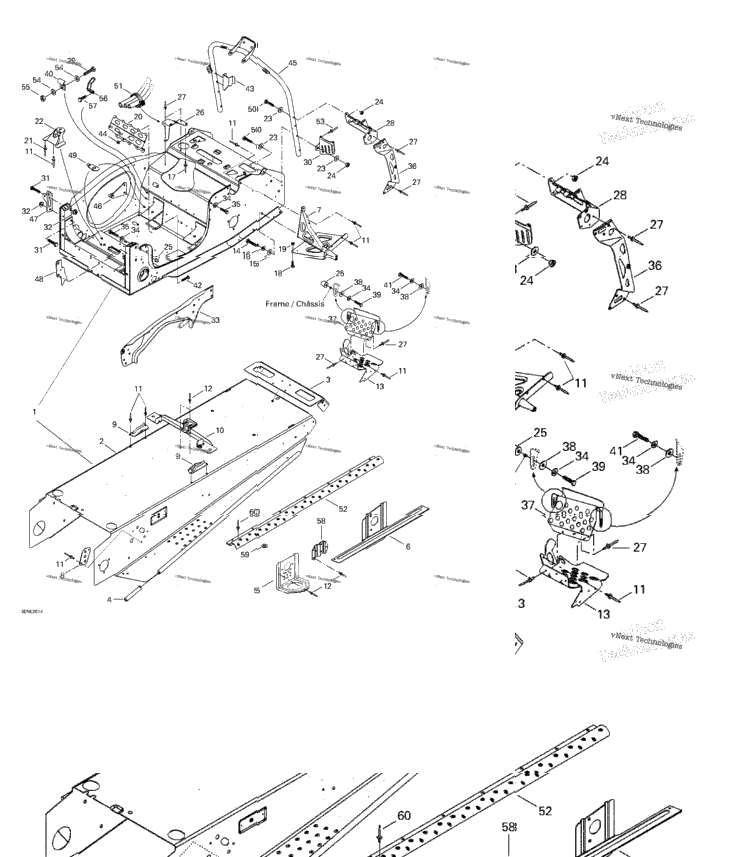

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 518322105 | Frame Ass'y (Black) Includes 1 - 22. (Radiator and Radiator Protector Included) GT 700. GT SE Millennium Edition. | ||
| 518322104 | Frame Ass'y (Red) (Radiator and Radiator Protector Included) GT SE. | ||
| 518322110 | Forming Frame Includes 2 - 4. GT 700. GT SE Millennium Edition. | ||
| 518322109 | Forming Frame GT SE. | ||
| 518321302 | Rear Cap | ||
| 2 | 518304746 | FOOTREST REINFORCEMENT | 2 |
| 518321495 | Front Bracket | ||
| 518321515 | RH Rear Bracket | ||
| 518321516 | LH Rear Bracket | ||
| 518317522 | RH Footrest Support | ||
| 518317523 | LH Footrest Support | ||
| 2 | 518201321 | REINFORCEMENT PLATE | 2 |
| 517266900 | RH Tank Bracket | ||
| 517267000 | LH Tank Bracket | ||
| 518317506 | Seat Bracket | ||
| 22 | 390402200 | Pop Rivet 3/16" | 22 |
| 6 | 390402400 | Pop Rivet 3/16" | 6 |
| 518321433 | RH Footrest | ||
| 518321434 | LH Footrest | ||
| 2 | 207103544 | Hex. Screw M10 X 35 | 2 |
| 2 | 234001410 | Flat Washer 10 mm | 2 |
| 234101402 | Lock Washer M10 | ||
| 390911200 | Chobert Rivet | ||
| 4 | 207151644 | Hex. Screw M5 X 16 | 4 |
| 4 | 233251414 | Hex. Flange Elastic Nut M5 | 4 |
| 518317510 | Steering Support | ||
| 6 | 390910300 | HENROB RIVET | 6 |
| 518317509 | Pivot Arm Support | ||
| 10 | 224061121 | Flat Washer | 10 |
| 8 | 232561414 | Elastic Stop Nut M6 | 8 |
| 3 | 415107300 | Insert | 3 |
| 518317556 | Guide | ||
| 20 | 390402200 | Pop Rivet 3/16" | 20 |
| 518321572 | RH Upper Bracket | ||
| 518317543 | LH Upper Bracket | ||
| 1 | 207151444 | Hex. Screw M5 X 14 | 1 |
| 518317572 | Belt Protector | ||
| 4 | 207085044 | Hex. Screw M8 X 50 | 4 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 518317515 | Strap | ||
| 11 | 234161471 | Lock Washer M6, Black | 11 |
| 7 | 207161844 | Hex. Screw M6 X 18 | 7 |
| 518317520 | RH Vertical Bracket | ||
| 518317521 | LH Vertical Bracket | ||
| 518317531 | RH Holding Toe | ||
| 518317532 | LH Holding Toe | ||
| 4 | 224061201 | Flat Washer | 4 |
| 2 | 207162044 | Hex. Screw M6 X 20 | 2 |
| 1 | 415018200 | CLIP | 1 |
| 2 | 207161644 | Hex. Screw M6 X 16 | 2 |
| 3 | 207151444 | Hex. Screw M5 X 14 | 3 |
| 515175149 | Cable Support | ||
| 3 | 232551414 | Elastic Stop Nut M5 | 3 |
| 518321511 | Handle Steering Support | ||
| 518317553 | Muffler Support | ||
| 1 | 518317518 | RH SHOCK BRACKET | 1 |
| 518317519 | LH Shock Bracket | ||
| 518321421 | Heat Shield | ||
| 518317507 | Plate | ||
| 8 | 207063544 | Hex. Flange Screw M6 X 35 | 8 |
| 1 | 408801900 | TRIDON GEAR CLAMP | 1 |
| 518321978 | Strip GT SE Millennium Edition. | ||
| 390403600 | Pop Rivet 3/16 | ||
| 2 | 391301600 | Washer | 2 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 515175422 | Tubing 6 mm | ||
| 1 | 210251180 | HEX. FLANGED SCREW M5 X 11 | 1 |
| 518317562 | Protector Guide GT SE. GT SE Millennium Edition. | ||
| 14 | 517124300 | Washer GT SE Millennium Edition. | 14 |
| 2 | 390402300 | Pop Rivet 3/16" GT SE Millennium Edition. | 2 |
