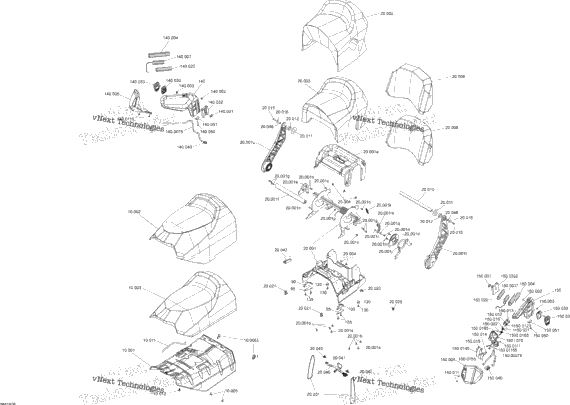

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 510004775 | Front Seat Base | 1 |
| 1 | 510005685 | Front Seat Cover | 1 |
| 1 | 510004777 | Front Seat Foam | 1 |
| 2 | 708000759 | Rubber Stopper | 2 |
| 2 | 510004963 | SEAT CORNER, BLACK | 2 |
| 1 | 510005688 | Seat Base Ass'y Includes 20,001 to 20,001u | 1 |
| 1 | 510004423 | Foam Support | 1 |
| 6 | 293150104 | Pop Rivet 3/16" | 6 |
| 4 | 293150100 | Pop Rivet 3/16" | 4 |
| 1 | 510004391 | Sprocket | 1 |
| 1 | 510005568 | LINK PLATE | 1 |
| 1 | 510005496 | LINK TUBE | 1 |
| 4 | 205982586 | SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP | 4 |
| 4 | 293150129 | STEEL RIVET | 4 |
| 1 | 510004385 | HANDLE, BLACK | 1 |
| 1 | 514053643 | Spring | 1 |
| 1 | 510006338 | Adjustment Pivot | 1 |
| 1 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 224061201 | Flat Washer | 1 |
| 1 | 510004425 | BUSHING | 1 |
| 1 | 510005465 | LH Arm | 1 |
| 1 | 510005464 | RH Arm | 1 |
| 1 | 510005694 | REAR SEAT COVER | 1 |
| 1 | 510004791 | Rear Seat Foam | 1 |
| 5 | 414644300 | Black, Dart | 5 |
| 1 | 510004782 | Backrest Foam | 1 |
| 1 | 510005353 | BACKREST COVER | 1 |
| 1 | 510004377 | Upper Backrest Axle | 1 |
| 2 | 510004379 | Washer | 2 |
| 2 | 510004378 | Rubber Shim | 2 |
| 2 | 250000745 | Hex Torx Truss M8 X30 | 2 |
| 2 | 250200128 | Flat Washer 8 mm | 2 |
| 1 | 510004964 | RH REAR CORNER SEAT | 1 |
| 1 | 510004965 | LH REAR CORNER SEAT | 1 |
| 4 | 293750008 | Tie Wrap 368 mm | 4 |
| 1 | 515176766 | Seat Harness | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 510004419 | GRIP | ||
| 2 | 515175283 | Housing Support | 2 |
| 2 | 271000558 | Spacer | 2 |
| 1 | 518325710 | RH Seat Anchor | 1 |
| 2 | 510005216 | SPACER | 2 |
| 1 | 518325709 | LH Seat Anchor | 1 |
| 2 | 510005095 | SEAT STUD | 2 |
| 2 | 207561044 | Flange Screw M6 X 10, Scotch Grip | 2 |
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 4 |
| 1 | 510005854 | RH HANDLE ASS'Y Includes 140 to 140,051 | 1 |
| 1 | 250000721 | Torx Truss Screw M6 X 16 | 1 |
| 1 | 293100003 | Nut Welded, M6 | 1 |
| 1 | 510004449 | Handle Grip | 1 |
| 1 | 510005009 | RH Air Deflector | 1 |
| 1 | 515176999 | Heated Element | 1 |
| 1 | 219704426 | Was 515175506 Tubing | 1 |
| 2 | 250000725 | Screw M4 X 16 | 2 |
| 1 | 510005814 | Reinforcement Handle | 1 |
| 1 | 510004405 | Moulding | 1 |
| 1 | 510004804 | Stopper Block | 1 |
| 1 | 510004798 | HANDLE LINK | 1 |
| 1 | 510004806 | Lever Lock Ass'y | 1 |
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 1 | 250000220 | SOCKET HEAD SCREW M8 X 45 | 1 |
| 510004565 | HANDLE CLAMP | ||
| 1 | 510005853 | LH Handle Ass'y Includes 150 to 150,051 | 1 |
| 1 | 510005010 | LH Air Deflector | 1 |
| 1 | 510005036 | Switch Housing | 1 |
| 3 | 250000720 | Torx Screw K50 X 16 | 3 |
| 3 | 250000725 | Screw M4 X 16 | 3 |
| 1 | 510004413 | Rocker Switch | 1 |
| 1 | 510004414 | Switch Protector | 1 |
| 1 | 515176697 | Handle Harness | 1 |
| 1 | 515176698 | Visor Connector Harness | 1 |
| 1 | 515177018 | WIRING HARNESS_HEATED SOLE | 1 |
| 1 | 572103300 | Cap | 1 |
| 1 | 510004950 | Cap | 1 |
| 1 | 516003612 | VISOR AND LINER DECAL | 1 |
| 1 | 516003816 | Heated Handle Decal | 1 |
| 1 | 515176033 | Male Connector | 1 |
