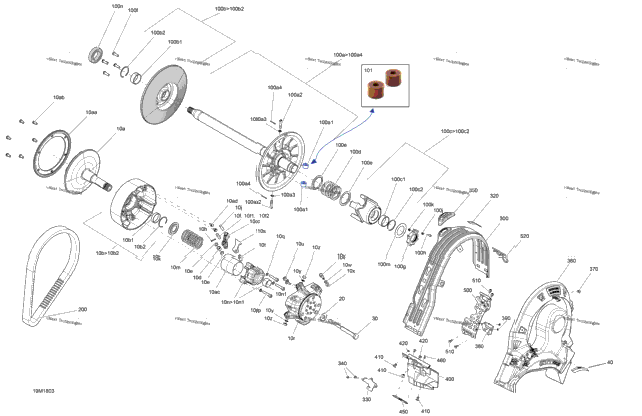

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417222937 | Fixed Flange Ass'y | 1 |
| 1 | 417222181 | Sliding Flange Ass'y Includes 10b to 10b2 | 1 |
| 1 | 417222758 | Bushing | 1 |
| 1 | 293370037 | Circlip | 1 |
| 3 | 417222671 | Lever | 3 |
| 3 | 417222947 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004308 | Pin | 3 |
| 3 | 250400060 | Cotter Pin | 3 |
| 3 | 417223164 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 414689200 | Spring Clutch | 1 |
| 1 | 417007500 | Spring Cover Ass'y Includes 10n to 10n1 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 1 | 417223669 | Governor Cup Ass'y | 1 |
| 3 | 417222546 | Ramp 414 | 3 |
| 3 | 250400050 | Spring Pin M10 X 22 | 3 |
| 6 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip | 6 |
| 3 | 417223501 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417222992 | Slider Shoe | 6 |
| 1 | 417223738 | Ring Gear | 1 |
| 6 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip | 6 |
| 1 | 250200144 | Conical Spring Washer M14 | 1 |
| 1 | 417120000 | Drive Pulley Bolt | 1 |
| 1 | 516005503 | Decal English | 1 |
| 1 | 417127387 | Fix Flange Ass'y Includes 100a to 100a4 | 1 |
| 2 | 417127016 | Pulley Roller | 2 |
| 2 | 417127294 | Pivot Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 250400063 | Spring Pin M3 X 30 | 2 |
| 1 | 417127317 | Sliding Flange Ass'y Includes 100b to 100b2 | 1 |
| 1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127377 | Cam Ass'y Includes 100c to 100c2 | 1 |
| 1 | 417127137 | Green, Spring | 1 |
| 2 | 417127116 | Swivel Abutment | 2 |
| 4 | 250000707 | Hex. Button Head Screw M8 X 25 | 4 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 504152574 | Ball Bearing | 1 |
| 1 | 861805577 | QRS XD Roller Kit (2) | 1 |
| 1 | 417300383 | Drive Belt | 1 |
| 1 | 417300357 | Belt Guard | 1 |
| 1 | 516005509 | Safety Belt Guard Decal | 1 |
| 1 | 417300423 | Front Bracket | 1 |
| 2 | 390909200 | Avex Rivet | 2 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300440 | CVT Air Duct Pulley | 1 |
| 6 | 293150103 | Pop Rivet 3/16" | 6 |
| 1 | 417300445 | Stopper | 1 |
| 1 | 417300430 | Front Support | 1 |
| 3 | 293150104 | Pop Rivet 3/16" | 3 |
| 3 | 517225900 | Flat Washer | 3 |
| 1 | 417300421 | Reinforcement Plate | 1 |
| 2 | 390909100 | Avex Rivet | 2 |
| 1 | 417300448 | BELT GUARD BRACKET | 1 |
| 4 | 250000742 | Torx Screw M5 X 14 | 4 |
| 1 | 114045200 | Hair Pin | 1 |
