Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

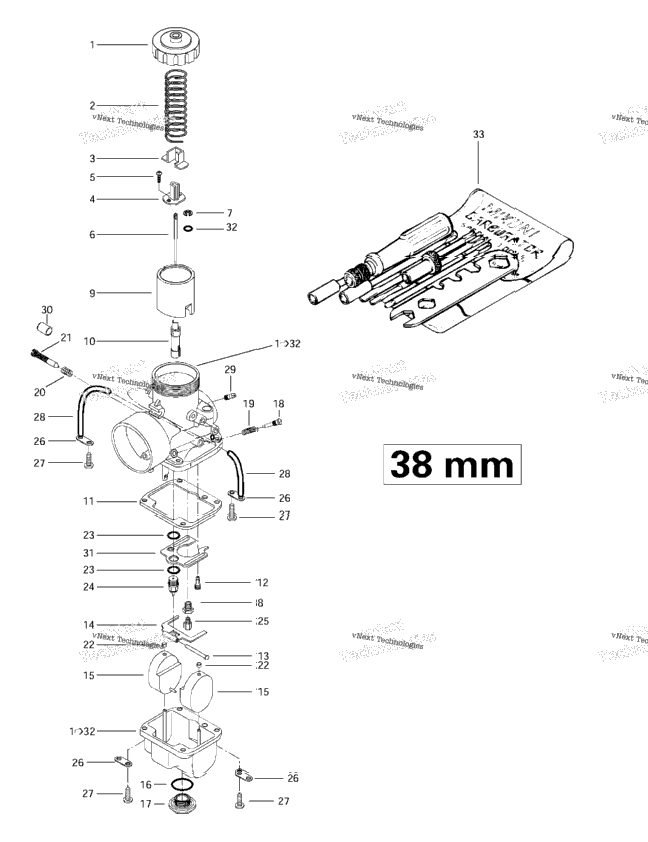

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 403130000 | Carburetor VM 38-345 (PTO) Includes 1 - 32. Formula 500. Formula 500 Deluxe. | ||
| 403130100 | Carburetor VM 38-346(MAG) Formula 500. Formula 500 Deluxe. | ||
| 403130400 | Carburetor VM 38-349 (PTO) Includes 1 - 32. Formula 583. | ||
| 403130500 | Carburetor VM 38-350 (MAG) Formula 583. | ||
| 404105100 | COVER Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 2 | 404154800 | Spring Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 2 | 404122100 | Cover Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 2 | 404122900 | Connector Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 4 | 404121300 | Screw With Washer Formula 500. Formula 500 Deluxe. Formula 583. | 4 |
| 404156800 | Jet Needle J8 6FEY1 Formula 500. Formula 500 Deluxe. | ||
| 404157500 | Jet Needle J8 6BGY15 Formula 583. | ||
| 2 | 404152400 | E-Ring Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 2 | 404105500 | Guide Screw Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 404131300 | Piston Valve CA 2.5 Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 404155000 | Needle Jet NJ-480-P3 Formula 500. Formula 500 Deluxe. | ||
| 404157600 | Needle Jet NJ-480-Q6 Formula 583. | ||
| 404104700 | GASKET Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 2 | 404109500 | PILOT JET 50 Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 2 | 404103300 | Lever Pin Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 2 | 404105000 | FLOAT LEVER Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 404105400 | FLOAT Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 2 | 404101500 | O-RING Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 404105600 | DRAIN PLUG SCREW Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 2 | 404149000 | AIR SCREW Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 404139800 | SPRING Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 2 | 404101700 | Spring Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 404102800 | IDLE SPEED SCREW Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 4 | 404105800 | Cap Formula 500. Formula 500 Deluxe. Formula 583. | 4 |
| 4 | 404101600 | Seat Washer Formula 500. Formula 500 Deluxe. Formula 583. | 4 |
| 2 | 404147400 | Needle Valve 1.5 Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 1 | 404107800 | Main Jet MJ 310 (MAG) Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 404100500 | Main Jet MJ 280 Formula 583. | 1 |
| 1 | 404101100 | Main Jet 290 Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 404100400 | Main Jet MJ 270 Formula 583. | 1 |
| 4 | 404103000 | PLATE Formula 500. Formula 500 Deluxe. Formula 583. | 4 |
| 8 | 404102000 | Screw With Lock Washer Formula 500. Formula 500 Deluxe. Formula 583. | 8 |
| 404109800 | Hose Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 2 | 404159100 | Nipple Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 404152500 | Cap Formula 500. Formula 500 Deluxe. Formula 583. | ||
| XXXX | Not Available As Spare Part - Baffle Plate Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 2 | 404117000 | Packing Formula 500. Formula 500 Deluxe. Formula 583. | 2 |
| 404112000 | TOOL KIT Formula 500. Formula 500 Deluxe. Formula 583. | ||
| 861756500 | High Altitude Kit, (Not Shown) Formula 500. Formula 500 Deluxe. | ||
| 861756400 | High Altitude Kit (Not Shown) Formula 583. |
