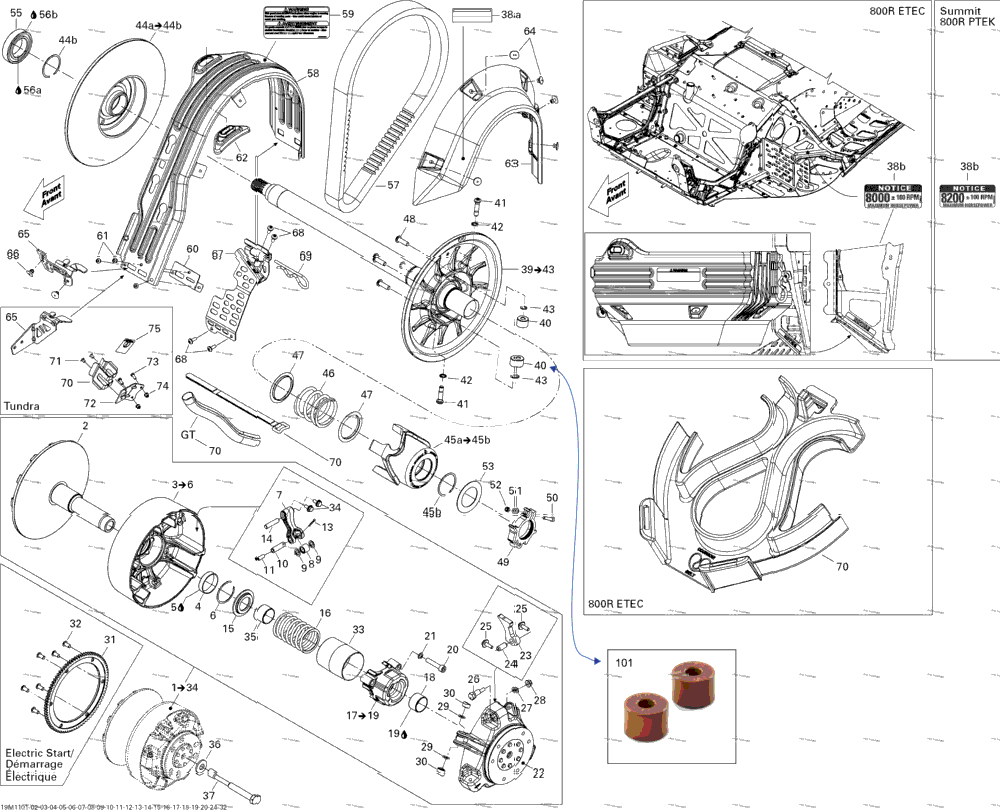

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y Includes 1 to 34 | ||
| 1 | 417222937 | Fixed Flange Ass'y | 1 |
| 1 | 417222181 | Sliding Flange Ass'y Includes 3 to 6 | 1 |
| 1 | 417222758 | Bushing | 1 |
| 293800118 | ADHESIVE LOCTITE 680 | ||
| 1 | 293370037 | Circlip | 1 |
| 3 | 417222671 | Lever | 3 |
| 3 | 417222947 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004308 | Pin | 3 |
| XXX | Not Available As Spare Parts | ||
| 3 | 732958001 | Cotter Pin | 3 |
| 3 | 417223164 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 414742100 | SPRING YELLOW/GREEN | 1 |
| 1 | 417007500 | Spring Cover Ass'y Includes 17 to 19 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 1 | 417223441 | GOVERNOR CUP ASS'Y | 1 |
| 3 | 417222515 | Ramp 412 | 3 |
| 3 | 250400050 | Spring Pin M10 X 22 | 3 |
| 6 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip | 6 |
| 3 | 417223460 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417222992 | Slider Shoe | 6 |
| 1 | 417223042 | Ring Gear | 1 |
| 6 | 250000243 | Torx Screw M8 X 16, Scotch Grip | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip | 6 |
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417120000 | Drive Pulley Bolt | 1 |
| 1 | 516004542 | English Decal | 1 |
| 1 | 417127174 | Fixe Flange Ass'y Includes 39 to 43 | 1 |
| 2 | 417127016 | Pulley Roller | 2 |
| 2 | 417127128 | Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 414753500 | Circlip | 2 |
| 1 | 417126955 | Sliding Flange Ass'y Includes 44a to 44b | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127083 | Cam Ass'y Includes 45a to 45b | 1 |
| 1 | 417127137 | Green, Spring | 1 |
| 2 | 417127116 | Swivel Abutment | 2 |
| 4 | 250000283 | Torx Screw M8 X 25, Scotch Grip | 4 |
| 417127248 | Adjustment Pulley Ass'y | ||
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 504152574 | Ball Bearing | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 417300383 | Drive Belt | 1 |
| 1 | 417300357 | Belt Guard | 1 |
| 1 | 516004595 | Security Label Decal English | 1 |
| 1 | 417300380 | Reinforcement | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 417300360 | FRONT BELT GUARD BRACKET | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 417300375 | Belt Guard Bracket | 1 |
| 4 | 250000145 | Torx Screw M5 X 14 | 4 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 508000599 | Velcro Strip | 1 |
| 1 | 861805577 | QRS XD Roller Kit (2) | 1 |
