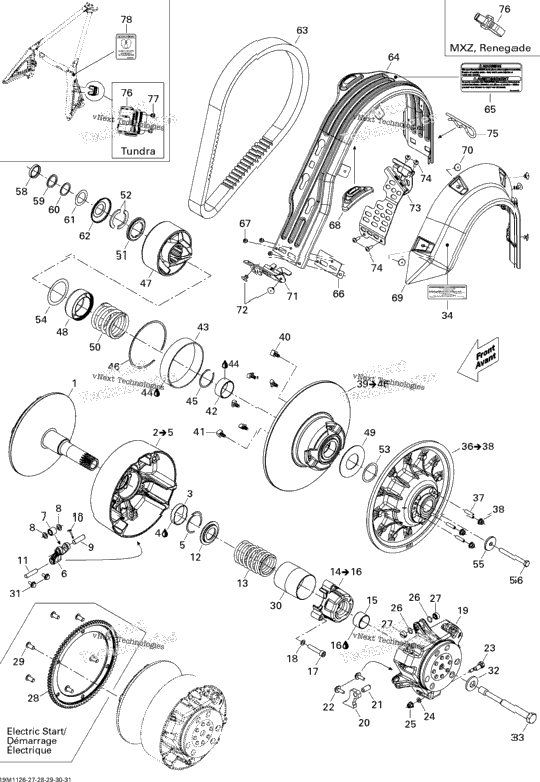

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417222937 | Fixed Flange Ass'y | 1 |
| 1 | 417222181 | Sliding Flange Ass'y Includes 2 to 5 | 1 |
| 1 | 417222758 | Bushing | 1 |
| 293800118 | ADHESIVE LOCTITE 680 | ||
| 1 | 293370037 | Circlip | 1 |
| 3 | 417222671 | Lever | 3 |
| 3 | 417222947 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004309 | Pin | 3 |
| 3 | 732958001 | Cotter Pin | 3 |
| 3 | 417223164 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 414639000 | Spring, Blue/Orange | 1 |
| 1 | 417007500 | Spring Cover Ass'y Includes 14 to 16 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 1 | 417223441 | GOVERNOR CUP ASS'Y | 1 |
| 3 | 417222515 | Ramp 412 | 3 |
| 3 | 250400050 | Spring Pin M10 X 22 | 3 |
| 6 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip | 6 |
| 3 | 417223460 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417222992 | Slider Shoe | 6 |
| 1 | 417223042 | Ring Gear Electric Start | 1 |
| 6 | 250000243 | Torx Screw M8 X 16, Scotch Grip Electric Start | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip | 6 |
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417120000 | Drive Pulley Bolt | 1 |
| 1 | 516004542 | English Decal | 1 |
| 1 | 417127022 | FIXED FLANGE ASS'Y Includes 36 to 38 | 1 |
| 206262590 | SOCKET SET SCREW M6 X 25 | ||
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 417126909 | SLIDING FLANGE ASS'Y Includes 39 to 46 | ||
| 417126373 | REAR CAM SLIDER SHOE, RED | ||
| 3 | 417126374 | Front Cam Slider Shoe, Black | 3 |
| 417126901 | BUSHING | ||
| 417126902 | BUSHING | ||
| 1 | 413408300 | Loctite, Black Max, 3 ml | 1 |
| 371911200 | CIRCLIP | ||
| 1 | 417126878 | CIRCLIP | 1 |
| 1 | 417126445 | CAM ASS'Y | 1 |
| 1 | 417126381 | GUARD | 1 |
| 1 | 504099600 | STOPPER WASHER | 1 |
| 1 | 417127061 | Spring | 1 |
| 417126733 | SPACER | ||
| 417126734 | HALF KEY | ||
| 1 | 504112300 | SHIM | 1 |
| 1 | 417126322 | SWIVEL ABUTMENT | 1 |
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207287544 | Hex. Cap Screw M8 X 75 | 1 |
| 1 | 417300399 | Spacer | 1 |
| 1 | 417300252 | Spacer | 1 |
| 1 | 417300265 | Spacer | 1 |
| 1 | 504112000 | Shim | 1 |
| 417300238 | PROTECTOR | ||
| 1 | 417300367 | Drive Belt | 1 |
| 1 | 417300382 | Belt Guard | 1 |
| 1 | 516004595 | Security Label Decal English | 1 |
| 1 | 417300380 | Reinforcement | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 417300386 | Front Belt Guard Bracket | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 417300375 | Belt Guard Bracket | 1 |
| 4 | 250000145 | Torx Screw M5 X 14 | 4 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 508000599 | Velcro Strip | 1 |
| XXX | Not Available As Spare Parts |
