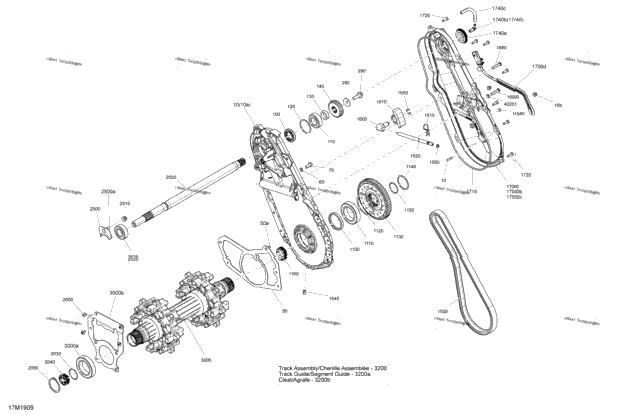

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 504153720 | Black, Chain Case Ass'y Includes 10 to 10b | 1 |
| 1 | 861805514 | Kit Plate Ass'y | 1 |
| 4 | 233261434 | Flange Elastic Nut M6 | 4 |
| 1 | 504153698 | Plate Ass'y Includes 50 to 50a | 1 |
| 3 | 250300027 | Clinch Stud M6 X 20 | 3 |
| 1 | 504082900 | Washer | 1 |
| 1 | 250000740 | Torx Screw M8 X 20, Scotch Grip | 1 |
| 1 | 293200168 | Oil Seal | 1 |
| 1 | 293350115 | Ball Bearing | 1 |
| 1 | 504152576 | Circlip | 1 |
| 1 | 504152628 | Shim | 1 |
| 1 | 504091100 | Sprocket 22 Teeth Large | 1 |
| 1 | 504152784 | Spring Washer M10 | 1 |
| 1 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip | 1 |
| 1 | 293200159 | Oil Seal | 1 |
| 1 | 293350059 | Ball Bearing | 1 |
| 1 | 504152582 | Circlip | 1 |
| 1 | 504153952 | Sprocket , 51 Teeths | 1 |
| 1 | 293370134 | Circlip | 1 |
| 1 | 293300201 | O-Ring | 1 |
| 1 | 504153696 | Magnetic Cap Ass'y | 1 |
| 1 | 504153266 | Drive Chain, 110 Links | 1 |
| 1 | 414575600 | Hair Pin | 1 |
| 1 | 504153760 | Adjustment Screw | 1 |
| 1 | 250500012 | Allen Drive Plug 1/8-27 PTF | 1 |
| 1 | 504153704 | Magnetic Plug | 1 |
| 1 | 293300202 | O-Ring | 1 |
| 1 | 504153559 | Tensioner | 1 |
| 1 | 504153312 | Slider Chain | 1 |
| 1 | 293370105 | Circlip | 1 |
| 2 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 | 2 |
| 1 | 504153891 | Chain Case Cover Ass'y Includes 1700 to 1700d | 1 |
| 1 | 515178223 | Clip Connector | 1 |
| 1 | 415130141 | Braided Sleeve | 1 |
| 504153316 | Rotation Sensor | ||
| 1 | 293300199 | O-Ring | 1 |
| 8 | 250001012 | Torx T-30 Pan HD Taptite M6X20 | 8 |
| 504153535 | Cap Ass'y Includes 1740 to 1740c | ||
| 1 | 504152860 | Cap | 1 |
| 1 | 414580700 | Male Connector | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 5 | 250000767 | Torx Truss Screw M6 X 12 | 5 |
| 1 | 504153697 | Magnetic Cap | 1 |
| 1 | 504152572 | Circlip | 1 |
| 1 | 504153491 | Bearing Housing Includes 2500 to 2500a | 1 |
| 1 | 250300028 | Clinch Stud, M8 X 25 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 1 | 504153492 | Countershaft | 1 |
| 1 | 504153847 | AXLE DRIVE ASSY Includes 3000 to 3000b | 1 |
| 1 | 504153941 | Plate Retaining Ass'y | 1 |
| 1 | 504153604 | Track Ass'y 15" X 137" X 1.7R" Includes 3200 to 3200b | 1 |
| 1 | 415129528 | Track Guide | 1 |
| 1 | 504152651 | Cleat | 1 |
