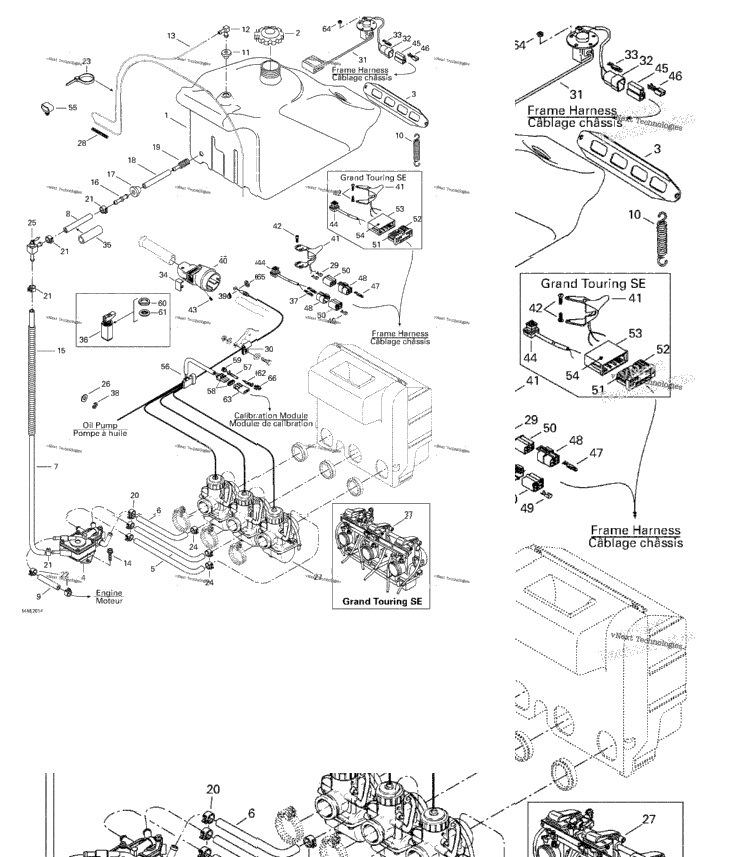

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 513032926 | Fuel Tank | ||
| 1 | 572073900 | Cap | 1 |
| 517249200 | Fuel Tank Bracket | ||
| 513032929 | FUEL PUMP | ||
| 415117800 | Tube GT 700. | ||
| 1 | 219704410 | Polyurethane Hose 10000Mm Long GT SE. GT SE Millennium Edition. | 1 |
| 415117900 | Formed Tube GT 700. | ||
| 415120800 | Formed Hose GT SE. GT SE Millennium Edition. | ||
| 513032949 | FORMED HOSE | ||
| 513032965 | HOSE | ||
| 1 | 219704439 | Hose 1/4 1000Mm Long - Call Your Local BRP Dealership | 1 |
| 2 | 414893700 | Spring | 2 |
| 1 | 513032908 | Grommet | 1 |
| 1 | 414814100 | Male Connector | 1 |
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 2 | 210251180 | HEX. FLANGED SCREW M5 X 11 | 2 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 414872700 | Male Connector | 1 |
| 1 | 570273900 | Grommet | 1 |
| 1 | 415097800 | POLYURETHANE HOSE 7.6MM | 1 |
| 1 | 414872100 | Fuel Filter Strainer | 1 |
| 3 | 414420700 | Spring Clamp | 3 |
| 4 | 414655700 | Spring Clamp | 4 |
| 2 | 414415200 | Spring Clamp | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 3 | 414420700 | Spring Clamp GT 700. | 3 |
| 3 | 414554800 | Spring Clamp GT SE. GT SE Millennium Edition. | 3 |
| 415112200 | Shut-Off Valve | ||
| 1 | 414753300 | Washer | 1 |
| 403138612 | Carburetor VM 38-436 (PTO/MAG) GT 700. | ||
| 403138635 | Carburetor VM 38-441 (CTR) GT 700. | ||
| 403138633 | Carburetor Kit TM38-C317 GT SE. GT SE Millennium Edition. | ||
| 513032961 | Spring | ||
| 1 | 515175253 | FEMALE TERMINAL | 1 |
| 1 | 414176000 | Open Clamp | 1 |
| 415080800 | Fuel Sensor Ass'y Includes 31 - 33. | ||
| 409204500 | MALE HOUSING | ||
| 561503400 | MALE TERMINAL (18/16 GA.) | ||
| 1 | 572100901 | Switch Cover | 1 |
| 513032941 | Hose (Rubber) | ||
| 415077700 | Choke Cable GT 700. | ||
| 561205500 | Choke Cable Ass'y GT SE. GT SE Millennium Edition. | ||
| 409210000 | MALE TERMINAL | ||
| 1 | 414753500 | Circlip | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 572098801 | Throttle Handle Housing GT 700. | ||
| 572098800 | Throttle Handle Housing GT SE. GT SE Millennium Edition. | ||
| 512059214 | Heat Throttle Handle (38 mm) GT 700. | ||
| 512059165 | Heat Throttle Handle (26 mm) GT SE. GT SE Millennium Edition. | ||
| 2 | 732601143 | Flange Screw | 2 |
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 1 | 512059146 | Kill Switch GT 700. | 1 |
| 512059210 | Kill Switch GT SE. GT SE Millennium Edition. | ||
| 1 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS | 1 |
| 1 | 561503100 | FEMALE TERMINAL | 1 |
| 1 | 409209300 | MALE HOUSING | 1 |
| 561503200 | Female Terminal PACKARD | ||
| 1 | 409204900 | FEMALE HOUSING | 1 |
| XXXX | Not Available As Spare Part - Female Terminal | ||
| XXXX | Not Available As Spare Part - Female Terminal Housing (18 Circuits) | ||
| XXXX | Not Available As Spare Part - Male Terminal Housing (18 Circuits) | ||
| 1 | 515175232 | Male Terminal | 1 |
| 513032923 | TUBE CLAMP | ||
| 512058948 | Throttle Cable Includes 56 - 59. GT 700. | ||
| 512059041 | Throttle Cable GT SE. GT SE Millennium Edition. | ||
| 1 | 278000223 | Female Terminal | 1 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 414977200 | Plastic Nut | 1 |
| 394103300 | Lock Washer, Interior Teeth | ||
| 1 | 278000222 | Male Terminal | 1 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 5 | 232551414 | Elastic Stop Nut M5 | 5 |
| 1 | 414274500 | Circlip | 1 |
