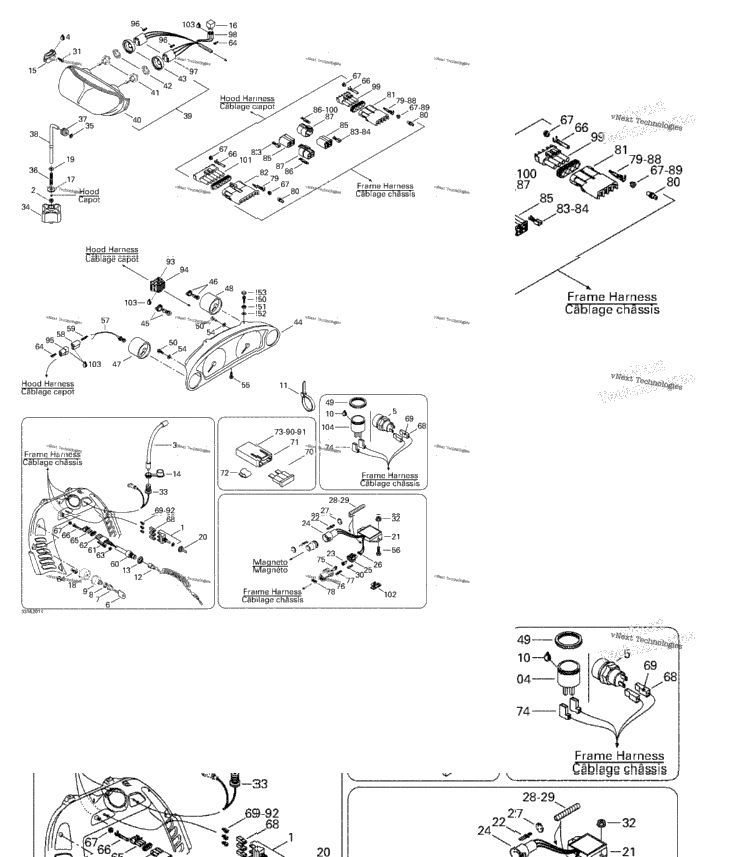

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 410111500 | Switch (Compressor) GT SE. GT SE Millennium Edition. | ||
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 515175161 | Visor Plug Extension | 1 |
| 413707500 | Grease Tube Lmz, 400 G | ||
| 1 | 415101200 | Push Button | 1 |
| 414991700 | BLANK KEY | ||
| 1 | 570013700 | Switch Boot | 1 |
| 1 | 410112100 | FACE NUT | 1 |
| 410111300 | IGNITION SWITCH | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 515166900 | Dess Cap | 1 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 572103300 | Cap | 1 |
| 517289300 | RH Support | ||
| 517289400 | LH Support | ||
| 1 | 410113200 | Relay | 1 |
| 1 | 224060251 | Washer | 1 |
| 1 | 572150700 | FEMALE TERMINAL HOUSING, 9 CIRCUITS | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 1 | 515175281 | Switch Cover GT SE. GT SE Millennium Edition. | 1 |
| 515175461 | Voltage Regulator Includes 21 - 30. | ||
| 3 | 409011100 | MALE TERMINAL | 3 |
| XXXX | Not Available As Spare Part - Female Lock | ||
| 1 | 409207900 | MALE HOUSING | 1 |
| 409206500 | Female Connector Housing (2 Circuits) | ||
| 278000996 | WIRE SEAL | ||
| 409208500 | SEAL | ||
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| XXXX | Not Available As Spare Part - Tubing | ||
| 2 | 278000994 | FEMALE TERMINAL | 2 |
| 732601315 | Headlamp Screw | ||
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 860702700 | Visor-Plug | ||
| 1 | 572100800 | Handle | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 1 | 415100600 | SPRING | 1 |
| 1 | 415100800 | Grommet | 1 |
| 1 | 517295800 | ADJUSTER ROD | 1 |
| 1 | 515175158 | Halogen Headlamp Includes 39 - 43. | 1 |
| XXXX | Not Available As Spare Part - Double Headlamp | ||
| 2 | 410504401 | Halogen Bulb | 2 |
| 2 | 410608300 | BULB HOLDER | 2 |
| 410607100 | PROTECTOR CAP | ||
| 515175512 | Dash | ||
| 410504403 | Meter Bulb | ||
| 410504402 | Meter Bulb (Small) | ||
| 515175395 | Temperature Gauge GT 700. | ||
| 515175394 | Pressure Gauge GT SE. GT SE Millennium Edition. | ||
| 515175396 | Fuel Gauge | ||
| 1 | 414805101 | PLASTIC NUT | 1 |
| 4 | 241140060 | Screw K40 X 10 | 4 |
| 2 | 414436800 | RETAINER CAP | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 2 | 414436900 | BLACK SNAP CAP | 2 |
| 2 | 517124300 | Washer | 2 |
| 1 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 | 1 |
| 2 | 207162044 | Hex. Screw M6 X 20 | 2 |
| XXXX | Not Available As Spare Part - Compressor Lamp Harness GT SE. GT SE Millennium Edition. | ||
| 409204500 | MALE HOUSING GT SE. GT SE Millennium Edition. | ||
| 409210000 | MALE TERMINAL GT SE. GT SE Millennium Edition. | ||
| 515166800 | TERMINAL ASSY Includes 60 - 63. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 561503100 | FEMALE TERMINAL | 1 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 1 | 278000223 | Female Terminal | 1 |
| 1 | 278000218 | Wire Seal | 1 |
| 1 | 409010400 | Female Terminal Housing, 1 Circuit | 1 |
| 1 | 409010100 | Female Terminal | 1 |
| 409012800 | FUSE, 1 AMPERE | ||
| 1 | 278001143 | Fuse, 20 amperes | 1 |
| 1 | 410917200 | Fuse, 30 Amperes | 1 |
| 1 | 409004000 | Fuse Holder | 1 |
| 1 | 409014200 | CLIP | 1 |
| 1 | 409011600 | Female Terminal | 1 |
| 1 | 409010300 | Female Terminal | 1 |
| XXXX | Not Available As Spare Part - Male Lock | ||
| XXXX | Not Available As Spare Part - Male Terminal Housing (2 Circuits) | ||
| 409010900 | Male Terminal | ||
| 409208300 | Seal | ||
| 1 | 278000222 | Male Terminal | 1 |
| 1 | 278000216 | Wire Seal | 1 |
| 278000394 | FEMALE HOUSING, 4 CIRCUITS | ||
| 278000156 | FEMALE CONNECTOR, 6 CIRCUITS | ||
| 561503200 | Female Terminal PACKARD | ||
| 1 | 515175313 | FEMALE TERMINAL | 1 |
| 1 | 409204900 | FEMALE HOUSING | 1 |
| 409206100 | MALE TERMINAL | ||
| 1 | 409209300 | MALE HOUSING | 1 |
| 1 | 409004300 | Male Terminal | 1 |
| 1 | 710000048 | Wire Seal | 1 |
| XXXX | Not Available As Spare Part - Female Terminal | ||
| 1 | 409010600 | FEMALE TERMINAL | 1 |
| 409013500 | Female Terminal | ||
| XXXX | Not Available As Spare Part - Female Terminal Housing (24 Circuits) | ||
| 1 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS | 1 |
| 515175320 | FEMALE TERMINAL | ||
| 409202700 | FEMALE TERMINAL HOUSING, 3 CIRCUITS | ||
| 1 | 409209900 | Female Housing, 5 Circuits | 1 |
| 1 | 278000395 | Male Housing, 4 Circuits | 1 |
| 561503400 | MALE TERMINAL (18/16 GA.) | ||
| 278000221 | MALE CONNECTOR, 6 CIRCUITS | ||
| 1 | 515175283 | Housing Support | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 415060900 | Horn | 1 |
