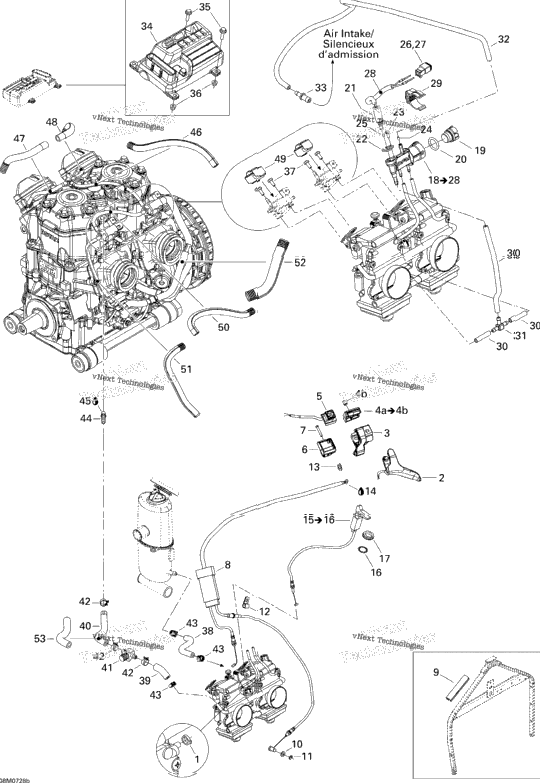

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 512060219 | Throttle Handle Ass'y | ||
| 1 | 512060197 | LOWER HOUSING | 1 |
| 512060198 | Upper Housing Ass'y Includes 4a to 4b | ||
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 1 | 515176091 | Kill Switch | 1 |
| 1 | 515176418 | Kill Switch Support | 1 |
| 1 | 250000263 | Torx Screw #8-18 | 1 |
| 512060088 | THROTTLE CABLE | ||
| 1 | 512059750 | PROTECTOR | 1 |
| 1 | 234081100 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 414753500 | Circlip | 1 |
| 293750042 | TIE CLAMP | ||
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 512059266 | CHOKE CABLE Includes 15 to 16 | ||
| 394103300 | Lock Washer, Interior Teeth | ||
| 1 | 512059094 | PLASTIC NUT | 1 |
| 1 | 512060002 | PRESSURE MANIFOLD ASS'Y Includes 18 to 28 | 1 |
| 1 | 270600009 | CAP | 1 |
| 1 | 293300042 | O-RING | 1 |
| 1 | 515175701 | PRESSURE MANIFOLD HARNESS | 1 |
| 1 | 415061600 | SOLENOID LOCK | 1 |
| 1 | 241140060 | Screw K40 X 10 | 1 |
| XXXX | Not Available As Spare Part - Starter Jet | ||
| 404161825 | STARTER JET | ||
| 1 | 515175670 | Female Terminal Housing, 2 Circuits | 1 |
| 1 | 515175675 | Female Lock, 2 Circuits | 1 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 1 | 512058919 | SUPPORT | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 414729300 | T-FITTING | 1 |
| 1 | 293710035 | Straight Fitting | 1 |
| 1 | 512060226 | CALIBRATED MODULE | 1 |
| 2 | 207652044 | Hex.Flange Screw M5 X 20 | 2 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 | 2 |
| 4 | 208651241 | PHILLIPS SCREW M5 X 12 | 4 |
| 1 | 509000171 | FORMED HOSE | 1 |
| 1 | 219704420 | Was 509000407 Hose 8 mm | 1 |
| 1 | 512060185 | FORMED HOSE | 1 |
| 1 | 512059324 | Valve 5/16” | 1 |
| 3 | 414655700 | Spring Clamp | 3 |
| 3 | 293650170 | Tridon Gear Clamp | 3 |
| 1 | 512060196 | MALE CONNECTOR 1/8-27 NPT | 1 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 512059809 | Heating Element Bracket | ||
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
