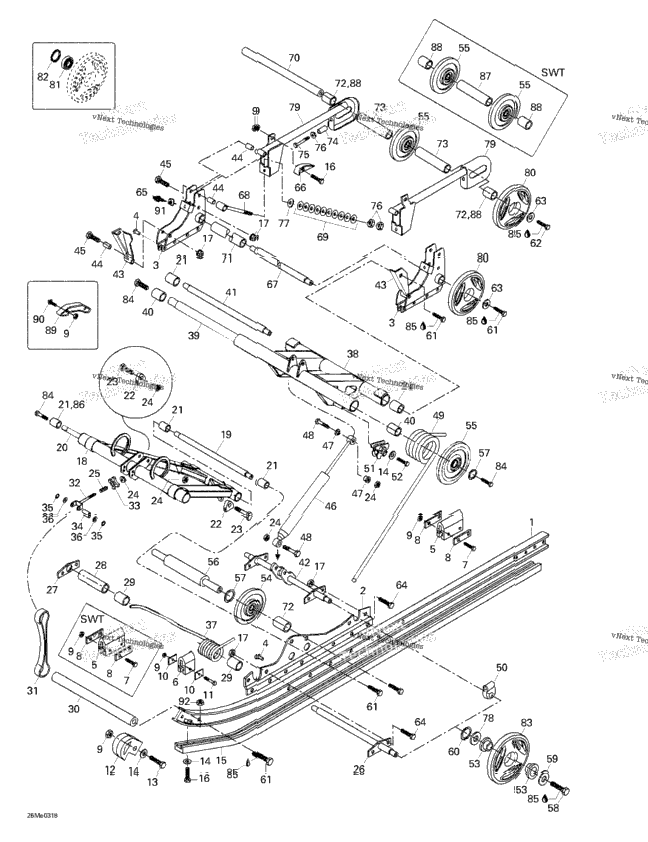

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| M5142866 | RH Runner Ass’Y Includes 1 - 4. | ||
| M5142865 | LH RUNNER ASS?Y | ||
| 2 | M5142864 | Runner | 2 |
| 1 | M5344811 | Rh Support | 1 |
| M5344810 | Lh Support | ||
| 1 | M539673 | Rh Support | 1 |
| 1 | M539672 | Lh Support | 1 |
| M544212 | RIVET | ||
| 2 | 570023100 | RUBBER STOPPER | 2 |
| 2 | M5442328 | Rubber Stopper Skandic 500F. Skandic 600. | 2 |
| 4 | 207064044 | Hex. Screw M6 X 40 | 4 |
| M548387 | Washer | ||
| 10 | M33200 | Nut M6 | 10 |
| M548470 | Plate Skandic 500F. Skandic 600. | ||
| 2 | 207063044 | Hex. Screw M6 X 30 Skandic 500F. Skandic 600. | 2 |
| 2 | M534578 | Runner Protector | 2 |
| 2 | 207162544 | Hex. Screw M6 X 25 | 2 |
| 6 | 234061410 | Flat Washer 6 mm | 6 |
| 2 | M549582 | Runner Shoe | 2 |
| 4 | 207162044 | Hex. Screw M6 X 20 | 4 |
| 14 | 232581414 | Hex. Elastic Stop Nut M8 | 14 |
| M5245898 | Front Arm Welded Skandic 500F. Skandic 600. | ||
| M5242808 | ARM-FRONT WELD Skandic 500F (SWT). | ||
| 1 | M549695 | Axe *Axle | 1 |
| 1 | M542793 | Essieu *Axle Skandic 500F. Skandic 600. | 1 |
| 1 | M542794 | Essieu *Axle Skandic 500F (SWT). | 1 |
| 6 | M542770 | Sleeve | 6 |
| 4 | M548799 | Spring Support | 4 |
| 207054044 | HEX. SCREW M5 X 40 | ||
| 7 | 233601416 | Elastic Locking Nut M10 X 1.5 | 7 |
| 1 | 414460600 | SPRING | 1 |
| M5345453 | Axle | ||
| M548469 | Plate Support | ||
| M5440313 | Sleeve | ||
| M548841 | Sleeve | ||
| M549718 | Cross Shaft | ||
| M5442604 | STOPPER STRAP | ||
| M5441643 | Bolt-Eye Adjuster | ||
| 1 | 572034000 | ADJUSTER KNOB | 1 |
| M5441645 | Pin | ||
| M41035 | Circlip | ||
| 2 | 234001410 | Flat Washer 10 mm | 2 |
| 1 | M5241177 | Lh Spring Skandic 500F. Skandic 600. | 1 |
| 1 | M5241178 | Rh Spring Skandic 500F. Skandic 600. | 1 |
| 1 | M538797 | Lh Spring Skandic 500F (SWT). | 1 |
| M538798 | RH SPRING Skandic 500F (SWT). | ||
| 1 | M5343493 | Rear Arm Welded Skandic 500F. Skandic 600. | 1 |
| 1 | M5343096 | Rear Arm Welded Skandic 500F (SWT). | 1 |
| 1 | M5343492 | Rear Cross Shaft Skandic 500F. Skandic 600. | 1 |
| M5340577 | REAR CROSS SHAFT Skandic 500F (SWT). | ||
| 2 | M31046 | Slide Bearing | 2 |
| M549656 | AXLE | ||
| M5345454 | SHAFT | ||
| 1 | M5440349 | Lh Lever | 1 |
| 1 | M5440350 | Rh Lever | 1 |
| 6 | M545758 | Sleeve | 6 |
| 6 | 207084544 | Hex. Screw M8 X 45 | 6 |
| 503189996 | REAR SHOCK Skandic 500F. Skandic 500F (SWT). | ||
| 503189997 | SHOCK Skandic 600. | ||
| M544417 | CUSHION | ||
| 2 | 207005044 | Hex. Screw M10 X 1.5 X 50 | 2 |
| M538805 | Lh Spring | ||
| M538806 | Rh Spring | ||
| M548804 | Spring Support Skandic 500F. Skandic 600. | ||
| M5442112 | SPRING SUPPORT Skandic 500F (SWT). | ||
| 1 | 572030800 | LH ADJUST CAM | 1 |
| 1 | 572030900 | RH ADJUST CAM | 1 |
| 2 | 207161044 | HEX. SCREW M6 X 10 | 2 |
| 8 | 503189534 | Cushion | 8 |
| 2 | 503190216 | Wheel 135 Ass’Y Skandic 500F (SWT). | 2 |
| 2 | 503188997 | Wheel 135 Skandic 500F. | 2 |
| 2 | 503188998 | Wheel 139 Skandic 600. | 2 |
| 3 | 503189568 | Wheel 165 Ass’Y | 3 |
| M549680 | Support Shaft | ||
| 4 | M31001 | Circlip *Circlip | 4 |
| M40336 | SCREW M8 X 20 | ||
| 4 | 503183100 | Washer | 4 |
| 4 | M31007 | Circlip | 4 |
| 10 | M40335 | Screw | 10 |
| 2 | 250000019 | Hex. Screw With Nylon | 2 |
| 4 | 503183300 | Washer | 4 |
| 8 | 207181644 | Hex. Screw M8 x 16 | 8 |
| M535455 | RUBBER STOPPER | ||
| M548262 | Protector | ||
| 1 | M541816 | Axe *Shaft | 1 |
| M5440377 | BOLT-EYE ADJUSTER | ||
| 42 | M25004 | Spring Plate | 42 |
| M5343284 | SHAFT Skandic 500F. Skandic 600. | ||
| M5341979 | Axe *Shaft Skandic 500F (SWT). | ||
| M541815 | Sleeve | ||
| M546577 | Sleeve | ||
| M5443285 | SLEEVE Skandic 500F. Skandic 600. | ||
| M546668 | SLEEVE | ||
| M40239 | SCREW | ||
| 6 | 232006414 | Hex. Nut M10 X 1.5 | 6 |
| 2 | M20011 | Washer | 2 |
| M31091 | SHIM | ||
| M5243222 | EXTENSION-RH | ||
| M5243223 | EXTENSION-LH | ||
| 4 | 503189476 | Bond Wheel 165 | 4 |
| 1 | 405404500 | Ball Bearing 6205 | 1 |
| 1 | M31002 | Circlip *Circlip | 1 |
| 4 | 572097612 | Bonded Wheel 135 Skandic 500F. Skandic 500F (SWT). | 4 |
| 4 | 503189094 | Wheel 139 Skandic 600. | 4 |
| 4 | M40314 | Screw M10 X 30 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | M541528 | Spacer Skandic 500F (SWT). | 2 |
| M5441980 | Sleeve Skandic 500F (SWT). | ||
| 4 | M5440422 | Sleeve Skandic 500F (SWT). | 4 |
| 2 | M5343191 | PROTECTOR Skandic 500F (SWT). | 2 |
| 4 | M40064 | Hex. Screw Skandic 500F (SWT). | 4 |
| 2 | M5440645 | Plaque Adj. *Plate-Adj. Skandic 500F (SWT). | 2 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
