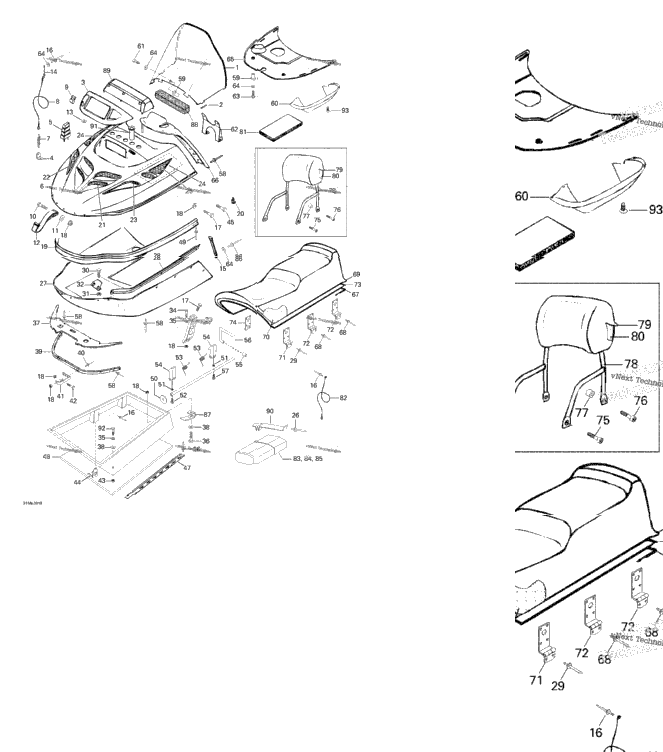

Список запчастей

№	Артикул	Название	Кол-во
	M5241686	Windshield Skandic WT. Skandic WT LC.
10	570023800	Windshield Latch Skandic WT. Skandic WT LC.	10
	572079200	Lamp Moulding Skandic WT. Skandic WT LC.
2	M5443123	SPRING PLATE Skandic WT. Skandic WT LC.	2
	M5443136	Windshield Support Skandic WT. Skandic WT LC.
	M5144992	Hood Skandic WT.
	M5144995	Hood Skandic WT LC.
2	M5442675	Ressort *Spring Skandic WT. Skandic WT LC.	2
	M5342674	Retainer Cable Skandic WT. Skandic WT LC.
6	414227300	Clip Skandic WT. Skandic WT LC.	6
4	M40193	SCREW Skandic WT. Skandic WT LC.	4
6	M20009	Washer 6.4 Din 9021 Skandic WT. Skandic WT LC.	6
	M5343075	Charniere *Hinge Skandic WT. Skandic WT LC.
4	M36084	Safety Washer Skandic WT. Skandic WT LC.	4
	M5442870	Cable Keeper Skandic WT. Skandic WT LC.
2	M5342952	Hood Latch Skandic WT. Skandic WT LC.	2
6	M36005	Rivet *Rivet Skandic WT. Skandic WT LC.	6
	M40078	Vis *Screw Skandic WT. Skandic WT LC.
21	M33200	Nut M6 Skandic WT. Skandic WT LC.	21
	M5242798	Front Bumper Skandic WT. Skandic WT LC.
	M549096R	RH Cap Skandic WT. Skandic WT LC.
	M549096L	LH Cap Skandic WT. Skandic WT LC.
	M5142669	Front Grill Skandic WT. Skandic WT LC.
	M5343409	Fan Cover Skandic WT LC.
	M5242672	RH Lower Grill Skandic WT. Skandic WT LC.
	M5342673	LH Lower Grill Skandic WT. Skandic WT LC.
	M5342990	RH Cover Skandic WT LC.
	M5343408	LH Cover Skandic WT LC.
1	M5242671	RH UPPER GRILL Skandic WT. Skandic WT LC.	1
	M5242670	LH Upper Grill Skandic WT.
	M5242899	LH Upper Grill Skandic WT LC.
20	M36083	Rivet *Rivet Skandic WT. Skandic WT LC.	20
	M5144049	Bottom Pan (Black) Skandic WT.
	M5142499	Bottom Pan (Black) Skandic WT LC.
	M5242803	LH Hood Guide Skandic WT. Skandic WT LC.
	M5242804	RH Hood Guide Skandic WT. Skandic WT LC.
	M36489	Rivet Skandic WT. Skandic WT LC.
	M40247	Screw M5 X 16 Skandic WT. Skandic WT LC.
4	M33062	NUT M5 Skandic WT. Skandic WT LC.	4
	M5443217	Hood Guide Skandic WT. Skandic WT LC.
	M5342509	SUPP.-BUMPER Skandic WT. Skandic WT LC.
	M40332	SCREW Skandic WT. Skandic WT LC.
6	234161471	Lock Washer M6, Black Skandic WT. Skandic WT LC.	6
	M40149	Screw M6 X 30 Skandic WT. Skandic WT LC.
1	M5142623	Protecteur Char*Protector-Hinge Skandic WT. Skandic WT LC.	1
3	M20009	Washer 6.4 Din 9021 Skandic WT. Skandic WT LC.	3
	M5142799	SUPPORT-FRONT Skandic WT. Skandic WT LC.
	M5342234	Hinge Skandic WT. Skandic WT LC.
	M5342345	Hinge Skandic WT. Skandic WT LC.
2	M40084	SCREW M6 X 45 Skandic WT. Skandic WT LC.	2
3	M33066	NUT M6 Skandic WT. Skandic WT LC.	3
	M5443661	Support Skandic WT. Skandic WT LC.
2	207162544	Hex. Screw M6 X 25 Skandic WT. Skandic WT LC.	2
	M5142066	Welded Seat Base Weld Skandic WT. Skandic WT LC.
	M5144029	RH Support Skandic WT. Skandic WT LC.
	M5144028	LH Support Skandic WT. Skandic WT LC.
	M5344621	Foam Skandic WT.
	M5343937	Cushion Skandic WT LC.
	M36003	Rivet Skandic WT. Skandic WT LC.
1	M20004	Washer Skandic WT. Skandic WT LC.	1
2	232541414	Elastic Stop Nut M4 Skandic WT. Skandic WT LC.	2
	M40144	Screw M4 X 16 Skandic WT. Skandic WT LC.
2	M5444439	SPRING Skandic WT. Skandic WT LC.	2
	M5443664	Lock Tongue Skandic WT. Skandic WT LC.
	M28019	Cap Skandic WT. Skandic WT LC.
	M5344987	Pivot Pin Skandic WT. Skandic WT LC.
	M40146	Screw Skandic WT. Skandic WT LC.
35	M36036	Black, Rivet Skandic WT. Skandic WT LC.	35
3	M28050	Welded Nut Skandic WT. Skandic WT LC.	3
	M5144412	Air Duct Skandic WT.
	M40358	Screw M5 X 30 Skandic WT. Skandic WT LC.
	M5343120	Support Skandic WT. Skandic WT LC.
	M40808	Screw M5 X 30 Skandic WT. Skandic WT LC.
6	M20008	Washer 5 Mm Skandic WT. Skandic WT LC.	6
	M5142622	Air Duct Skandic WT.
	M5144639	Air Duct Skandic WT LC.
	M5341435	Dash Skandic WT.
	M5344648	Dash Skandic WT LC.
1	M5440059	SEALING STRIP PROFIL Skandic WT. Skandic WT LC.	1
	M36043	Rivet Skandic WT. Skandic WT LC.
	M5345128	Seat Cover Skandic WT. Skandic WT LC.
	M5141222	Seat Foam Skandic WT. Skandic WT LC.
1	M5440581	HINGE Skandic WT. Skandic WT LC.	1
	M549874	HINGE Skandic WT. Skandic WT LC.
	M519394	Sub Seat Skandic WT. Skandic WT LC.
	M549732	Lock Plate Skandic WT. Skandic WT LC.
2	205082044	Socket Head Screw M8 X 20 Skandic WT. Skandic WT LC.	2
2	M40135	Socket Head Screw M8 X 30 Skandic WT. Skandic WT LC.	2
	M5440665	Spacer Skandic WT. Skandic WT LC.
	M539877	Backrest Skandic WT. Skandic WT LC.
	M539399	Backrest Foam Skandic WT. Skandic WT LC.
	M5340917	COVER-BACKREST Skandic WT. Skandic WT LC.
	414631900	Acoustic Foam Skandic WT. Skandic WT LC.
1	M546777	Cable Retenue *Cable-Retainer Skandic WT. Skandic WT LC.	1
	572036310	BOX COVER Skandic WT. Skandic WT LC.
	572036400	COVER-BOX Skandic WT. Skandic WT LC.
	M5445400	Tool Kit Skandic WT. Skandic WT LC.
2	M36009	Rivet *Rivet Skandic WT. Skandic WT LC.	2
	XXXX	Not Available As Spare Part - Cabel Keeper Skandic WT. Skandic WT LC.
	M5343135	Filter Skandic WT. Skandic WT LC.
	M5142624	Intake Cover Skandic WT. Skandic WT LC.
1	M5344443	SPRING-HOLDER Skandic WT. Skandic WT LC.	1
	M544445	Pipe Skandic WT. Skandic WT LC.
	M40052	Socket Head Screw M6 X 20 Skandic WT. Skandic WT LC.
4	414644300	Black, Dart Skandic WT.	4
