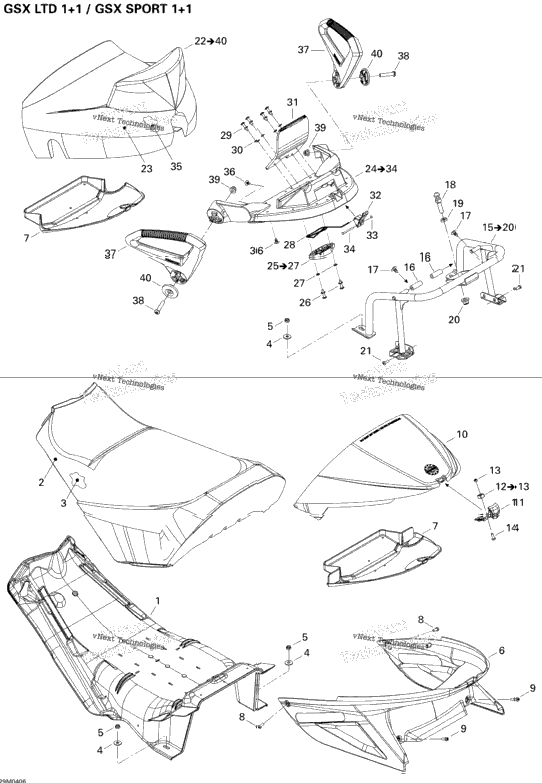

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 510004308 | Seat Base | ||
| 510004289 | Seat Cover GSX SPORT / GSX SPORT 1+1 (BLACK) | ||
| 510004291 | Seat Cover GSX SPORT / GSX SPORT 1+1 (SILVER) | ||
| 510004285 | Seat Cover GSX LTD / GSX LTD 1+1 (BLACK) | ||
| 510004287 | Seat Cover GSX LTD / GSX LTD 1+1 (SILVER) | ||
| 1 | 510004275 | SEAT FOAM | 1 |
| 2 | 234082410 | Flat Washer 8 mm | 2 |
| 2 | 232581414 | Hex. Elastic Stop Nut M8 | 2 |
| 510004230 | Deep Black, Trunk GSX SPORT / GSX SPORT 1+1 (BLACK) | ||
| 510004230 | Deep Black, Trunk GSX SPORT / GSX SPORT 1+1 (SILVER) | ||
| 510004230 | Deep Black, Trunk GSX LTD / GSX LTD 1+1 (BLACK) | ||
| 510004238 | Labrador Blue, Trunk GSX LTD / GSX LTD 1+1 (SILVER) | ||
| 510004231 | Box Liner GSX SPORT | ||
| 510004236 | Box Liner GSX SPORT 1+1 | ||
| 510004231 | Box Liner GSX LTD | ||
| 510004236 | Box Liner GSX LTD 1+1 | ||
| 2 | 250000129 | Torx Screw M6 X 16 | 2 |
| 2 | 250000128 | Torx Truss Screw M6 X 20 | 2 |
| 510004311 | Deep Black, Cover GSX SPORT / GSX SPORT 1+1 (BLACK) | ||
| 510004311 | Deep Black, Cover GSX SPORT / GSX SPORT 1+1 (SILVER) | ||
| 510004311 | Deep Black, Cover GSX LTD / GSX LTD 1+1 (BLACK) | ||
| 510004237 | Labrador Blue, Cover GSX LTD / GSX LTD 1+1 (SILVER) | ||
| 510003917 | Bracket | ||
| 1 | 269500252 | M6 Nut Housing Ass'y INCLUDES ITEMS 12 TO 13 | 1 |
| 1 | 232061600 | Hex. Nut M6 | 1 |
| 1 | 250000129 | Torx Screw M6 X 16 | 1 |
| 1 | 510004220 | LOWER SUPPORT INCLUDES ITEMS 15 TO 20 / GSX SPORT 1+1 | 1 |
| 1 | 510004220 | LOWER SUPPORT INCLUDES ITEMS 15 TO 20 / GSX LTD 1+1 | 1 |
| 1 | 219704439 | Hose 1/4 1000Mm Long - Call Your Local BRP Dealership | 1 |
| 2 | 414644300 | Black, Dart | 2 |
| 291001929 | Seat Stud | ||
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 233201414 | Hex. Flange Elastic Nut M10 | 1 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 GSX SPORT 1+1 | 2 |
| XXXX | Not Available As Spare Part - Seat Ass'Y INCLUDES ITEMS 22 TO 40 / GSX SPORT 1+1 (BLACK) | ||
| XXXX | Not Available As Spare Part - Seat Ass'Y INCLUDES ITEMS 22 TO 40 / GSX SPORT 1+1 (SILVER) | ||
| XXXX | Not Available As Spare Part - Seat Ass'Y INCLUDES ITEMS 22 TO 40 / GSX LTD 1+1 (BLACK) | ||
| XXXX | Not Available As Spare Part - Seat Ass'Y INCLUDES ITEMS 22 TO 40 / GSX LTD 1+1 (SILVER) | ||
| 510004299 | Seat Cover GSX SPORT 1+1 (BLACK) | ||
| 510004294 | Seat Cover GSX SPORT 1+1 (SILVER) | ||
| 510004299 | Seat Cover GSX LTD 1+1 (BLACK) | ||
| 510004294 | Seat Cover GSX LTD 1+1 (SILVER) | ||
| 510004296 | Upper Support Ass'y INCLUDES ITEMS 24 TO 34 | ||
| 861001800 | Latch Seat Kit INCLUDES ITEMS 25 TO 27 | ||
| 293150074 | RIVET 1/4 X 5/8 | ||
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 510004075 | Spring | ||
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| XXXX | Not Available As Spare Part - Backrest Reinforcement | ||
| XXXX | Not Available As Spare Part - Latch | ||
| 1 | 389804300 | Push Nut | 1 |
| 1 | 293150062 | SOLID RIVET 3/16 X 1-7/8 | 1 |
| 510004295 | Foam | ||
| 16 | 414644300 | Black, Dart | 16 |
| 510004074 | Passenger Handle | ||
| 205405086 | Socket Head Screw M10 X 50 | ||
| 2 | 233201414 | Hex. Flange Elastic Nut M10 | 2 |
| 510004109 | Moulding |
