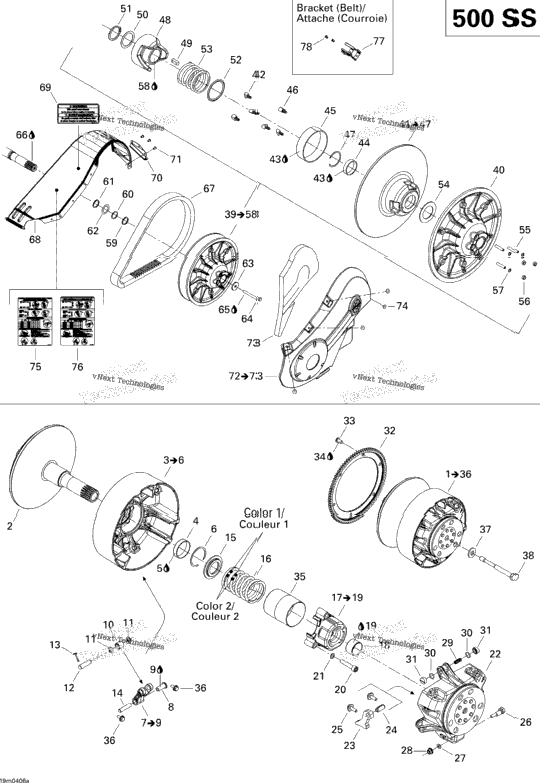

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley INCLUDES ITEMS 1 TO 36 | ||
| 1 | 417222294 | Fixed Flange Ass'y | 1 |
| 1 | 417222181 | Sliding Flange Ass'y INCLUDES ITEMS 3 TO 6 | 1 |
| 1 | 417006900 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 1 | 293370037 | Circlip | 1 |
| 3 | 417222671 | Lever INCLUDES ITEMS 7 TO 9 | 3 |
| 3 | 417222633 | Bushing | 3 |
| 3 | 417003900 | Roller Ass'y | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004308 | Pin | 3 |
| 3 | 732958001 | Cotter Pin | 3 |
| 3 | 417009202 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 417222371 | SPRING, GREEN/WHITE | ||
| 1 | 417007500 | Spring Cover Ass'y INCLUDES ITEMS 17 TO 19 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 417222213 | Governor Cup | ||
| 3 | 417222515 | Ramp 412 | 3 |
| 3 | 250400009 | Rolled Pin 10 X 22 | 3 |
| 6 | 250000059 | Hex. Flange Screw M6 X 18 | 6 |
| 3 | 417005500 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 3 | 417005700 | Spring | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417005800 | Slider Shoe | 6 |
| 1 | 417222669 | Ring Gear | 1 |
| 6 | 236281684 | Hex. Screw M8 X 16 | 6 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 417009205 | Guard | 1 |
| 6 | 210361296 | Hex. Forming Screw M6 X 12 | 6 |
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417120000 | Drive Pulley Bolt | 1 |
| XXXX | Not Available As Spare Part - Driven Pulley Ass'y INCLUDES ITEMS 39 TO 58 | ||
| 417126499 | Fixed Flange | ||
| 417126763 | Sliding Flange Ass'y INCLUDES ITEMS 41 TO 47 | ||
| 417126538 | Slider Shoe, Front | ||
| 417126772 | Coussinet | ||
| 417126562 | Bushing | ||
| 3 | 417126539 | SLIDER SHOE, REAR | 3 |
| 371911200 | CIRCLIP | ||
| 417126747 | Cam | ||
| 414820800 | Key | ||
| 417126555 | Washer | ||
| 371903100 | CIRCLIP | ||
| 417126771 | Abutment Swivel | ||
| 1 | 417126801 | SPRING, GREEN/GREEN | 1 |
| 504141900 | Thrust Washer | ||
| 206263044 | Socket Set Screw M6 X 30 | ||
| 3 | 232061414 | Hex. Nut M6 | 3 |
| 420245370 | WASHER | ||
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 3 | 417300231 | Spacer | 3 |
| 1 | 417300054 | Spacer | 1 |
| 1 | 504149100 | Spacer | 1 |
| 3 | 504112000 | Shim | 3 |
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207087544 | HEX. SCREW M8 X 75 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 417300197 | Drive Belt | 1 |
| 1 | 417300213 | BELT GUARD | 1 |
| 1 | 516001190 | Security Label, Belt Guard | 1 |
| 417300216 | BELT GUARD BRACKET | ||
| 3 | 390402200 | Pop Rivet 3/16" | 3 |
| 417300248 | Side Protector Ass'y INCLUDES ITEMS 72 TO 73 | ||
| 417300246 | Foam | ||
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
| 516001639 | Decal, Suspension Adjustment GSX LTD / GSX SPORT | ||
| 516001640 | Decal, Suspension Adjustment Decal GSX LTD 1+1 / GSX SPORT 1+1 | ||
| 1 | 517281905 | Bracket | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
