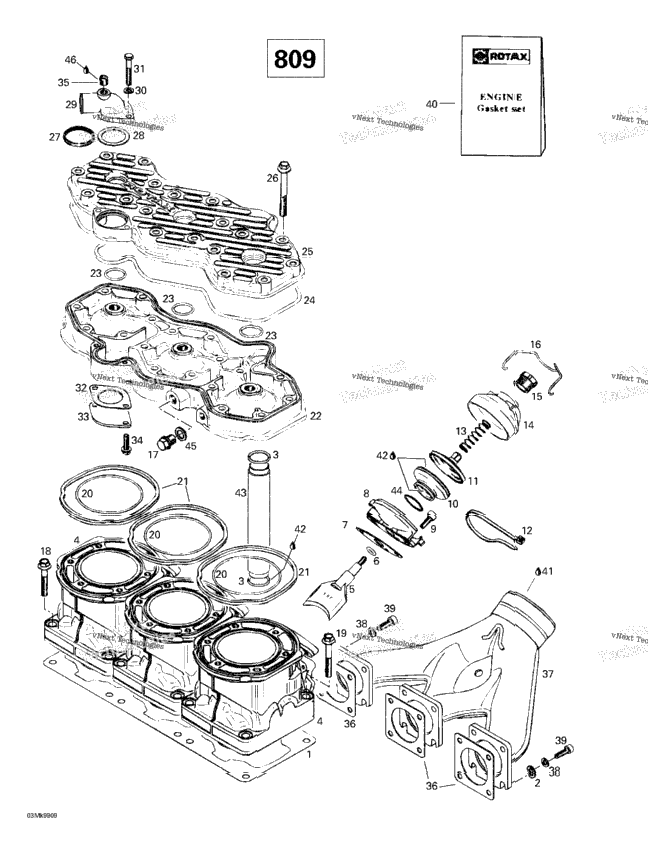

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420931622 | GASKET 0.6 MM Formula III 800. | ||
| 1 | 420931621 | GASKET 0.4 MM Formula III 800. | 1 |
| 420931620 | GASKET 0.3 MM Formula III 800. | ||
| 6 | 224061151 | Washer 6 mm Formula III 800. | 6 |
| 2 | 420430370 | O-Ring Formula III 800. | 2 |
| 420923480 | Cylinder (Nicasil Coated) Formula III 800. | ||
| 420854303 | Exhaust Valve Formula III 800. | ||
| 3 | 420430110 | O-Ring Formula III 800. | 3 |
| 3 | 420250234 | Gasket Formula III 800. | 3 |
| 420854265 | Valve Housing Formula III 800. | ||
| 6 | 420241236 | Socket Head Screw M6 X 16 Formula III 800. | 6 |
| 3 | 420260728 | Bellows Formula III 800. | 3 |
| 3 | 420854447 | Exhaust Valve Formula III 800. | 3 |
| 420251920 | Clamp 77 mm Formula III 800. | ||
| 420239945 | Spring Formula III 800. | ||
| 3 | 420911551 | Valve Cover Formula III 800. | 3 |
| 3 | 420241221 | Adjuster Screw Formula III 800. | 3 |
| 3 | 420838082 | Spring Clip Formula III 800. | 3 |
| 1 | 420841921 | Plug Screw M12 X 1.5 Formula III 800. | 1 |
| 6 | 420640431 | Hex. Collar Screw M8 X 45 Formula III 800. | 6 |
| 420640441 | Collar Hex. Screw M8 x 53.5 Formula III 800. | ||
| 3 | 420831792 | O-Ring Formula III 800. | 3 |
| 3 | 420931320 | SEAL RING Formula III 800. | 3 |
| 420913637 | Cylinder Head (Charcoal) Formula III 800. | ||
| 3 | 420430782 | O-Ring Formula III 800. | 3 |
| 1 | 420950310 | O-RING Formula III 800. | 1 |
| 420923492 | Cylinder Head Cover (Charcoal) Formula III 800. | ||
| 18 | 420841996 | Hex. Screw M8 x 68.5 Formula III 800. | 18 |
| 1 | 420931270 | SEALING RING Formula III 800. | 1 |
| 1 | 420927745 | RETAINING DISK Formula III 800. | 1 |
| 420922485 | Exhaust Socket Formula III 800. | ||
| 420945751 | WASHER-LOCK DIN.128 Formula III 800. | ||
| 2 | 222064065 | Hex. Screw M6 x 40 Formula III 800. | 2 |
| 1 | 420850336 | Gasket 1.0 mm Formula III 800. | 1 |
| 1 | 420926260 | COVER Formula III 800. | 1 |
| 2 | 420240580 | TAPTITE SCREW M6 X 16 Formula III 800. | 2 |
| 420240480 | PLUG SCREW Formula III 800. | ||
| 3 | 420850552 | Gasket Formula III 800. | 3 |
| 420979970 | Exhaust Socket Formula III 800. | ||
| 12 | 224761110 | Lock Washer 6 mm Formula III 800. | 12 |
| 12 | 222962565 | Socket Head Screw M6 x 25 Formula III 800. | 12 |
| 420886249 | Gasket Set Formula III 800. | ||
| 1 | 413710300 | Loctite 17914, Sealant, 80 ml Formula III 800. | 1 |
| 1 | 413707000 | Dow Corning 111, 150 g Formula III 800. | 1 |
| 420922450 | Water Tube Formula III 800. | ||
| 3 | 420838253 | Spring Clamp Formula III 800. | 3 |
| 1 | 420250641 | Ring Gasket Formula III 800. | 1 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml Formula III 800. | 1 |
