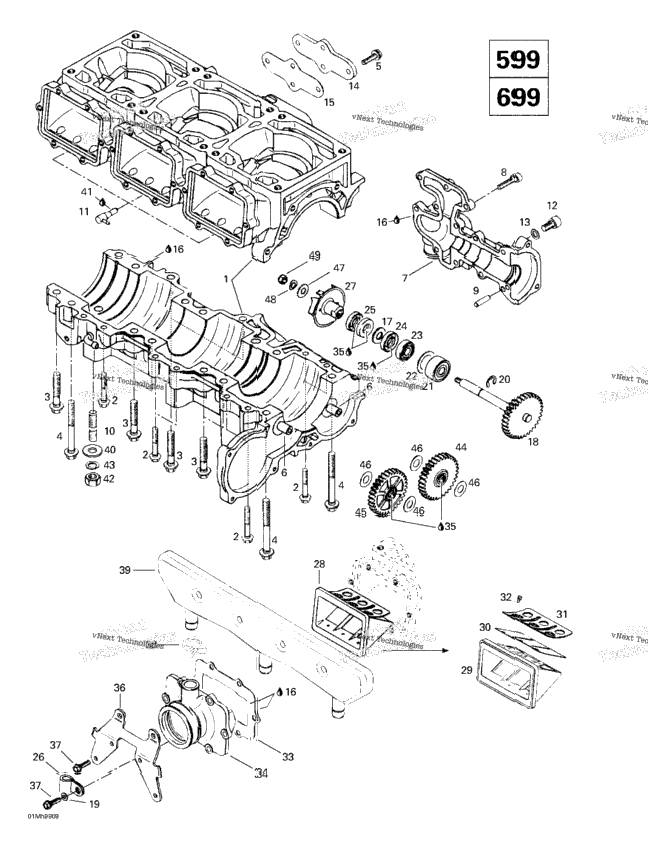

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420888511 | Crankcase Water Pump Cover Ass'y Includes 1 - 15. Formula III 600. | ||
| 420888515 | Crankcase Water Pump Cover Ass'y Formula III 700. | ||
| 420941451 | HEX. COLLAR SCREW M6 X 40 Formula III 600. Formula III 700. | ||
| 12 | 420940636 | Hex. Collar Screw M8 x 45 Formula III 600. Formula III 700. | 12 |
| 4 | 420841306 | Hex. Collar Screw M8 X 65 Formula III 600. Formula III 700. | 4 |
| 4 | 420941250 | Hex. Tapping Screw M6 X 20 Formula III 600. Formula III 700. | 4 |
| 2 | 420929935 | INTERMEDIATE GEAR SHAFT Formula III 600. Formula III 700. | 2 |
| XXXX | Not Available As Spare Part - Water Pump Cover Formula III 600. Formula III 700. | ||
| 12 | 222962565 | Socket Head Screw M6 x 25 Formula III 600. Formula III 700. | 12 |
| 420429230 | Dowel Pin Formula III 600. Formula III 700. | ||
| 420940400 | Stud M10 x 25 Formula III 600. Formula III 700. | ||
| 3 | 420956510 | Check Valve Formula III 600. Formula III 700. | 3 |
| 420440191 | Socket Head Screw M8 x 16 Formula III 600. Formula III 700. | ||
| 1 | 420950141 | Sealing Ring Formula III 600. Formula III 700. | 1 |
| 420810470 | Water Duct Cover Formula III 600. Formula III 700. | ||
| 420931300 | Water Duct Gasket Formula III 600. Formula III 700. | ||
| 219704462 | ADHESIVE LOCTITE 515 50ML Formula III 600. Formula III 700. | ||
| 1 | 420927410 | Flat Washer M10 Formula III 600. Formula III 700. . | 1 |
| 420837327 | Waterpump - Shaft/Pinion Ass'y | ||
| 420837437 | Waterpump - Shaft/Gear Ass'y Formula III 700. | ||
| 420827800 | WASHER Formula III 600. Formula III 700. | ||
| 1 | 420845390 | RETAINING RING Formula III 600. Formula III 700. | 1 |
| 420832490 | Bearing_Ball Formula III 600. Formula III 700. | ||
| 1 | 420944466 | SHIM 1 MM Formula III 600. Formula III 700. | 1 |
| 1 | 420232100 | Ball Bearing Formula III 600. Formula III 700. | 1 |
| 1 | 420230195 | Oil Seal Formula III 600. Formula III 700. | 1 |
| 2 | 420950400 | OIL SEAL Formula III 600. Formula III 700. | 2 |
| 1 | 414176000 | Open Clamp Formula III 600. Formula III 700. | 1 |
| 420922440 | Water Impeller Formula III 600. | ||
| 420922445 | Impeller Water Formula III 700. | ||
| 3 | 420924645 | Reed Valve Ass'y Includes 28 - 32. Formula III 600. | 3 |
| 3 | 420924519 | Reed Valve Ass'y Formula III 700. | 3 |
| XXXX | Not Available As Spare Part - Reed Valve Housing Formula III 600. Formula III 700. | ||
| 6 | 420924532 | Reed Pedal Formula III 600. Formula III 700. | 6 |
| 420924635 | Reed Pedal Stop Formula III 600. | ||
| 6 | 420924539 | Reed Pedal Stop Formula III 700. | 6 |
| 18 | 420941215 | Phillips Screw M3 X 5 Formula III 600. Formula III 700. | 18 |
| 3 | 420950292 | GASKET 1 MM Formula III 600. Formula III 700. | 3 |
| 420867841 | INTAKE SOCKET Formula III 600. Formula III 700. | ||
| 1 | 413707000 | Dow Corning 111, 150 g Formula III 600. Formula III 700. | 1 |
| 3 | 420851351 | CARRIER Formula III 600. Formula III 700. | 3 |
| 18 | 420841555 | Hex. Tapping Screw M5 X 20 Formula III 600. Formula III 700. | 18 |
| 420851360 | Clamp Formula III 600. Formula III 700. | ||
| 420867792 | Intake Resonator Formula III 600. Formula III 700. | ||
| 4 | 224001211 | Flat Washer 10 mm Formula III 600. Formula III 700. | 4 |
| 1 | 413711400 | Loctite 648, 10 ml Formula III 600. Formula III 700. | 1 |
| 4 | 228001045 | Hex. Nut M10 Formula III 600. Formula III 700. | 4 |
| 234100602 | WASHER-LOCK SPRING DIN.128A-A2 Formula III 600. Formula III 700. | ||
| 420834266 | Sprocket 32 T Formula III 600. Formula III 700. | ||
| 420834267 | SPROCKET, 32 TEETH Formula III 600. Formula III 700. | ||
| 4 | 420927952 | THRUST WASHER Formula III 600. Formula III 700. | 4 |
| 420227155 | Washer Formula III 700. | ||
| 1 | 420845020 | SPRING WASHER Formula III 700. | 1 |
| 420842042 | Locking Nut M6 Formula III 700. |
