Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

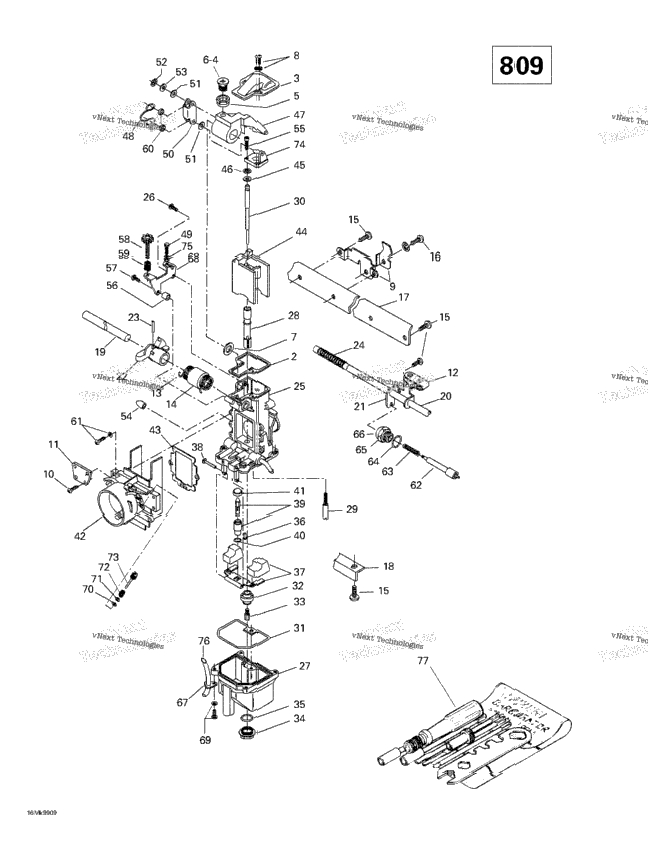

| 403138558 | Carburetors Ass'y TM38-C228 Includes 1 - 76. Formula III 800. | ||
| 404143600 | Gasket Formula III 800. | ||
| 404142700 | Cover Formula III 800. | ||
| 404139000 | Screw (PTO/Center) Formula III 800. | ||
| 404143500 | Ring (PTO/Center) Formula III 800. | ||
| 404138900 | Screw (MAG) Formula III 800. | ||
| 404144400 | Packing (MAG) Formula III 800. | ||
| 404139100 | Screw Formula III 800. | ||
| 404155100 | Bracket Ass'y Formula III 800. | ||
| 8 | 404136100 | Screw Formula III 800. | 8 |
| 404142400 | Plate Formula III 800. | ||
| 404143900 | Lever Formula III 800. | ||
| 404143200 | Spring Formula III 800. | ||
| 404141700 | Ring Formula III 800. | ||
| 9 | 404138800 | Screw Formula III 800. | 9 |
| 404140500 | Screw Formula III 800. | ||
| 404142300 | Plate Formula III 800. | ||
| 404142500 | Plate Formula III 800. | ||
| 404137100 | Throttle Shaft Formula III 800. | ||
| 404137200 | Choke Shaft Formula III 800. | ||
| 404140600 | Starter Lever Formula III 800. | ||
| 404142100 | Lever Ass'y Formula III 800. | ||
| 404140100 | Pin Formula III 800. | ||
| 404158000 | Spring Formula III 800. | ||
| XXXX | Not Available As Spare Part - Carburetor TM38-231 (MAG Side) Includes 25 - 76. Formula III 800. | ||
| XXXX | Not Available As Spare Part - CarburetorTM38-230 (Central) Formula III 800. | ||
| XXXX | Not Available As Spare Part - Carburetor TM38-229 (PTO Side) Formula III 800. | ||
| 404135900 | Screw (MAG) Formula III 800. | ||
| 404156300 | Float Body Ass'y Formula III 800. | ||
| 404161830 | Needle Jet Formula III 800. | ||
| 404144800 | Pilot Jet 50 Formula III 800. | ||
| 404161829 | Needle J8-8ADY01-41 Formula III 800. | ||
| 404137000 | O'Ring Formula III 800. | ||
| 404142900 | Ring Formula III 800. | ||
| 1 | 404100500 | Main Jet MJ 280 Formula III 800. | 1 |
| 1 | 404101100 | Main Jet 290 Formula III 800. | 1 |
| 1 | 404100400 | Main Jet MJ 270 Formula III 800. | 1 |
| 3 | 404107400 | Drain Plug Screw Formula III 800. | 3 |
| 3 | 404107300 | O-Ring Formula III 800. | 3 |
| 404141000 | Screw Formula III 800. | ||
| 404149800 | Float Formula III 800. | ||
| 3 | 404103300 | Lever Pin Formula III 800. | 3 |
| 404149500 | NEEDLE SEAT 1.5 Formula III 800. | ||
| 404139400 | O'Ring Formula III 800. | ||
| 404141200 | Filter Formula III 800. | ||
| 404161831 | Funnel (MAG) Formula III 800. | ||
| 404161832 | Funnel (CTR) Formula III 800. | ||
| 404161833 | Funnel (PTO) Formula III 800. | ||
| 404143700 | Gasket Formula III 800. | ||
| 404152900 | Piston Valve 2.0 Formula III 800. | ||
| 3 | 404137600 | Packing Formula III 800. | 3 |
| 404113300 | Circlip Formula III 800. | ||
| 404143000 | Throttle Lever (PTO/Center) Formula III 800. | ||
| 404143100 | Throttle Lever (MAG) Formula III 800. | ||
| 404144100 | Clip Formula III 800. | ||
| 404138000 | Bolt (MAG) Formula III 800. | ||
| 404144000 | Plate Formula III 800. | ||
| 404138100 | Packing Formula III 800. | ||
| 3 | 404138300 | E-Ring Formula III 800. | 3 |
| 404139500 | Washer Formula III 800. | ||
| 3 | 404154900 | CAP Formula III 800. | 3 |
| 6 | 404137400 | BOLT Formula III 800. | 6 |
| 404141800 | Ring (MAG) Formula III 800. | ||
| 1 | 404138800 | Screw Formula III 800. | 1 |
| 1 | 404137500 | Adjustment Screw Formula III 800. | 1 |
| 404138200 | Spring (MAG) Formula III 800. | ||
| 404144200 | Ring Formula III 800. | ||
| 404145100 | Screw Formula III 800. | ||
| 404140400 | Plunger Ass'y Formula III 800. | ||
| 404141100 | Spring Formula III 800. | ||
| 404140200 | O-Ring Formula III 800. | ||
| 3 | 404136900 | Guide Holder Formula III 800. | 3 |
| 3 | 404140000 | Cap Formula III 800. | 3 |
| 404144900 | Plate Formula III 800. | ||
| 404142600 | Bracket (MAG) Formula III 800. | ||
| 12 | 404138700 | Screw Formula III 800. | 12 |
| 3 | 404139900 | O-RING Formula III 800. | 3 |
| 404140900 | Washer Formula III 800. | ||
| 404139800 | SPRING Formula III 800. | ||
| 404154200 | Adjuster Screw Formula III 800. | ||
| 404142000 | Plate Ass'y Formula III 800. | ||
| 404139600 | Nut (MAG) Formula III 800. | ||
| 404161828 | Hose Formula III 800. | ||
| 404112000 | TOOL KIT Formula III 800. | ||
| 861766800 | High Altitude Kit (Not Shown) Formula III 800. |
