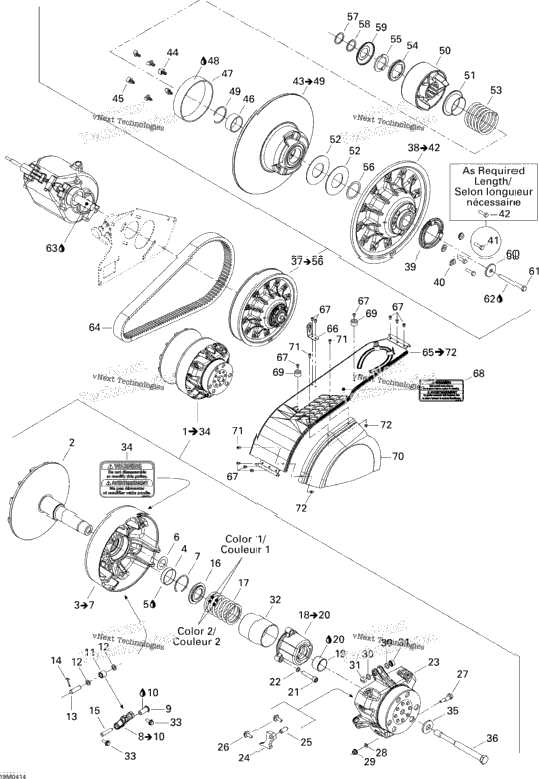

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Includes 1 to 34 | ||
| 417222593 | Fixed Flange | ||
| 1 | 417222646 | Sliding Flange Ass'y Includes 3 to 7 | 1 |
| 1 | 417006900 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| XXXX | Not Available As Spare Part - Balancing Ring | ||
| 1 | 293370037 | Circlip | 1 |
| 417222647 | Lever Ass'y Includes 8 to 10 | ||
| 1 | 417222633 | Bushing | 1 |
| 3 | 417003900 | Roller Ass'y | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004308 | Pin | 3 |
| 3 | 732958001 | Cotter Pin | 3 |
| 3 | 417009202 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 414748600 | CLUTCH SPRING, YELLOW/YELLOW | ||
| 1 | 417222649 | Cover Spring Ass'y Includes 18 to 20 | 1 |
| 1 | 417009204 | Bushing | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 417222640 | Governor Cup Ass'y | ||
| 417222696 | Rampe 609 | ||
| 3 | 250400009 | Rolled Pin 10 X 22 | 3 |
| 6 | 250000059 | Hex. Flange Screw M6 X 18 | 6 |
| 3 | 417222674 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417222362 | Slider Shoe | 6 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000182 | Serrated Hex. Flange Screw M6 X 16 | 6 |
| 516001726 | Security Label | ||
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 417300258 | Drive Pulley Bolt | ||
| XXXX | Not Available As Spare Part - Driven Pulley Ass'Y Includes 37 to 56 | ||
| 417126603 | Fixed Flange Ass'y Includes 38 to 42 | ||
| 415005800 | Adjustment Ring | ||
| 415005900 | Adjustment Shim | ||
| 3 | 207162544 | Hex. Screw M6 X 25 | 3 |
| 3 | 207162244 | HEX. SCREW M6 X 22 | 3 |
| 417126605 | Sliding Flange Ass'y Includes 43 to 49 | ||
| 417126373 | REAR CAM SLIDER SHOE, RED | ||
| 3 | 417126374 | Front Cam Slider Shoe, Black | 3 |
| XXXX | Not Available As Spare Part - Bushing | ||
| 414978100 | BUSHING | ||
| 371911200 | CIRCLIP | ||
| 417126843 | Cam | ||
| 1 | 415006000 | GUARD | 1 |
| 2 | 504099600 | STOPPER WASHER | 2 |
| 417126877 | Release Spring | ||
| 417126733 | SPACER | ||
| 417126734 | HALF KEY | ||
| 1 | 504112300 | SHIM | 1 |
| 1 | 417300054 | Spacer | 1 |
| 1 | 417300231 | Spacer | 1 |
| 417300238 | PROTECTOR | ||
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207087544 | HEX. SCREW M8 X 75 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 417300207 | DRIVE BELT | ||
| 417300206 | Belt Guard Ass'y Includes 65 to 72 | ||
| 1 | 293850075 | STRAP CLIP | 1 |
| 10 | 390402200 | Pop Rivet 3/16" | 10 |
| 1 | 516001190 | Security Label, Belt Guard | 1 |
| 293830043 | Rubber Stopper | ||
| XXXX | Not Available As Spare Part - Side Protector | ||
| 3 | 390402300 | Pop Rivet 3/16" | 3 |
| 2 | 234051410 | Flat Washer M5 | 2 |
