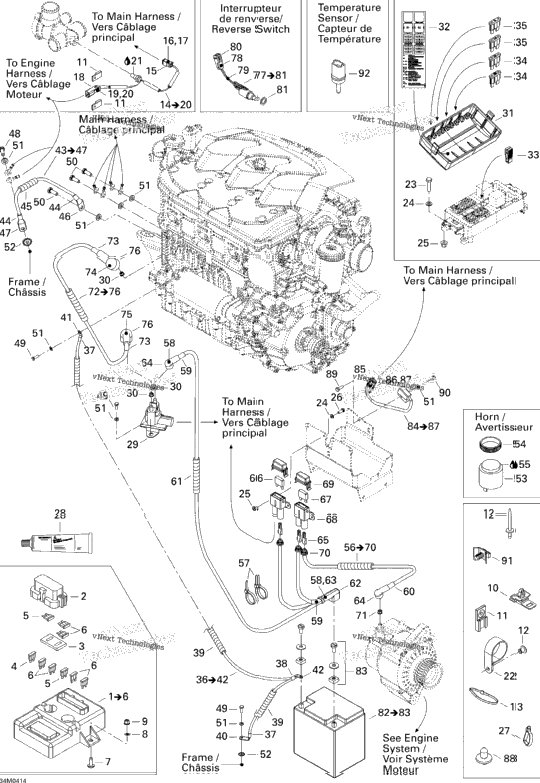

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 515175858 | Fuse Holder Includes items 1 to 6 | ||
| 278001618 | FUSE HOLDER COVER | ||
| 278001719 | COVER BUSHING | ||
| 1 | 278001442 | FUSE, 2 AMPERES | 1 |
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 6 | 278001197 | Fuse, 10 Amperes | 6 |
| 2 | 211000123 | Phillips Screw M6 X 20 | 2 |
| 2 | 234061410 | Flat Washer 6 mm | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 515175283 | Housing Support | 1 |
| 5 | 270000141 | Clip | 5 |
| 20 | 390402200 | Pop Rivet 3/16" | 20 |
| 5 | 293750008 | Tie Wrap 368 mm | 5 |
| 515175974 | Temperature Sensor Includes items 14 to 20 | ||
| 1 | 515175670 | Female Terminal Housing, 2 Circuits | 1 |
| 2 | 278000632 | Female Terminal | 2 |
| 1 | 515175675 | Female Lock, 2 Circuits | 1 |
| 1 | 515175665 | Male Terminal Housing, 2 Circuits | 1 |
| 2 | 278000631 | Male Terminal | 2 |
| 1 | 409207500 | Male Lock, 2 Circuits | 1 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 515176113 | Cable Clamp | ||
| 515176154 | Cable Clamp | ||
| 515176174 | Cable Clamp | ||
| 207152544 | HEX. SCREW M5 X 25 | ||
| 8 | 234051410 | Flat Washer M5 | 8 |
| 8 | 233251414 | Hex. Flange Elastic Nut M5 | 8 |
| 4 | 207151644 | Hex. Screw M5 X 16 | 4 |
| 13 | 414115200 | Tie-Rap 180 mm | 13 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 278001802 | Relay Starter | 1 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 1 | 515176066 | COVER | 1 |
| 516002107 | Fuse Decal | ||
| 1 | 515175811 | FUSE TOOL | 1 |
| 2 | 278001197 | Fuse, 10 Amperes | 2 |
| 2 | 409003900 | Fuse, 20 Amperes | 2 |
| 515175865 | Battery Ground Cable Includes items 36 to 42 | ||
| 1 | 219704447 | Was 710000483 Heat Shrink Tubing | 1 |
| 275500578 | Shrink Tubing | ||
| 710000497 | PROTECTOR TUBE, 9 MM | ||
| 710000508 | Open Barrel | ||
| 710000540 | Open Barrel | ||
| 710000539 | Open Barrel | ||
| 515175973 | Engine Cable Ground Includes items 43 to 47 | ||
| 710000507 | Flat Open Baril | ||
| 710000515 | Flat Terminal | ||
| 207362044 | Hex. Screw M6 X 20, Scotch Grip | ||
| 4 | 207361644 | Hex. Screw M6 X 16, Scotch Grip | 4 |
| 3 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 3 |
| 9 | 234061410 | Flat Washer 6 mm | 9 |
| 2 | 250200041 | Lock Washer Serrated M6 | 2 |
| 1 | 515175931 | Horn | 1 |
| 1 | 414805101 | PLASTIC NUT | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 515175868 | Battery Cable Includes items 56 to 70 | ||
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 710000479 | Flat Open Barel 6.6 mm | ||
| 512059668 | Heat Shrink Tubing 25 mm | ||
| 1 | 710000516 | Protector Cap | 1 |
| 1 | 710000518 | Open Barrel | 1 |
| 2 | 278001771 | PROTECTOR CAP | 2 |
| 515176106 | Female Terminal | ||
| 515176107 | Fuse 50 Amperes | ||
| 515176108 | Fuse 60 Amperes | ||
| 515176105 | Fuse Holder | ||
| 515176109 | Fuse Cover | ||
| 515176110 | Wire Seal | ||
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 515175972 | Starter Cable Includes items 72 to 76 | ||
| 1 | 515175967 | Switch Ass’Y Includes items 77 to 81 | 1 |
| 2 | 515175232 | Male Terminal | 2 |
| 293740005 | Tape | ||
| 1 | 515175654 | Male Terminal Housing, 2 Circuits | 1 |
| 1 | 250100012 | BRASS NUT | 1 |
| 1 | 515176151 | Battery YUASA YIX30L Includes items 82 to 83 | 1 |
| 1 | 515176081 | Battery Bolt Kit | 1 |
| 278001547 | T.O.P.S. SWITCH Includes items 84 to 87 | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| XXXX | Not Available As Spare Part - Female Terminal | ||
| 2 | 278000218 | Wire Seal | 2 |
| 2 | 293730018 | Mount Dart | 2 |
| 1 | 207162544 | Hex. Screw M6 X 25 | 1 |
| 278001775 | Self-Locking Clip | ||
| 1 | 270600000 | AIR TEMPERATURE SENSOR | 1 |
