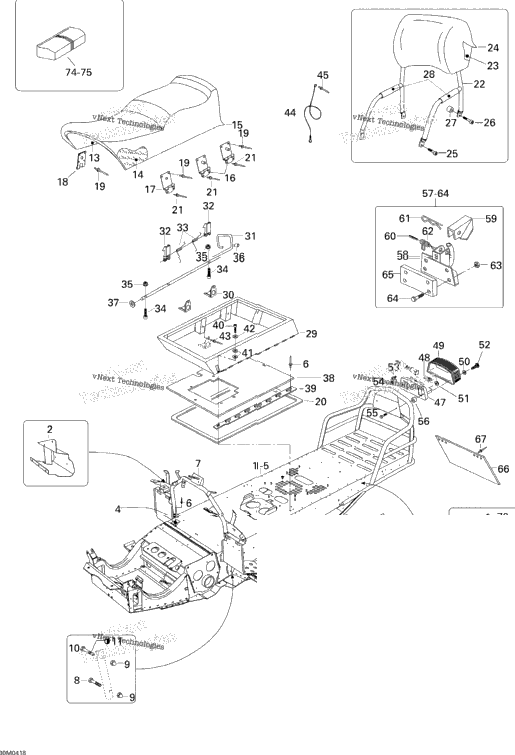

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 605150594 | Frame Assy Includes Items 1 to 5 | ||
| 605350839 | RH Toe Rest | ||
| 1 | 605350840 | LH TOE REST | 1 |
| 1 | 605250774 | RH REINFORCEMENT | 1 |
| 1 | 605250773 | LH REINFORCEMENT | 1 |
| 605349992 | Support Cooling | ||
| 605350846 | RH Coner Support | ||
| 1 | 605350845 | LH CONER SUPPORT | 1 |
| 1 | M36083 | Rivet *Rivet | 1 |
| 605150605 | Bar Support | ||
| 2 | 207063044 | Hex. Screw M6 X 30 | 2 |
| 4 | 232061414 | Hex. Nut M6 | 4 |
| 2 | 207064044 | Hex. Screw M6 X 40 | 2 |
| XXXX | Not Available As Spare Part - Loctite 243 | ||
| M28210 | Plug | ||
| M519394 | Sub Seat | ||
| 605150323 | Foam Seat | ||
| 605150324 | SEAT COVER | ||
| M549874 | HINGE | ||
| 1 | M5440581 | HINGE | 1 |
| M549732 | Lock Plate | ||
| M36071 | Rivet | ||
| 1 | M5440059 | SEALING STRIP PROFIL | 1 |
| M36489 | Rivet | ||
| M5245664 | Backrest | ||
| M539399 | Backrest Foam | ||
| 605350589 | Backrest Cover | ||
| 2 | M40388 | SCREW-SOCKET | 2 |
| M40389 | Allen Screw | ||
| M5440665 | Spacer | ||
| 415050300 | RH Grip, 250 mm | ||
| 605150634 | Seat Box | ||
| M5443661 | Support | ||
| M5344987 | Pivot Pin | ||
| 605451589 | CAM LOCK | ||
| 2 | M5444439 | SPRING | 2 |
| M40144 | Screw M4 X 16 | ||
| 3 | 232541414 | Elastic Stop Nut M4 | 3 |
| M28019 | Cap | ||
| 1 | 234081410 | Flat Washer 8 mm | 1 |
| 605350645 | Seat Box Cover | ||
| M5144029 | RH Support | ||
| M5144028 | LH Support | ||
| M40052 | Socket Head Screw M6 X 20 | ||
| 4 | M20009 | Washer 6.4 Din 9021 | 4 |
| 2 | 234161471 | Lock Washer M6, Black | 2 |
| 2 | M36009 | Rivet *Rivet | 2 |
| M5447746 | Retainer Cable | ||
| M36038 | Rivet | ||
| XXXX | Not Available As Spare Part - Rear Lamp Ass'y Includes Items 46 to 52 | ||
| 1 | 510004061 | LIGHT HOUSING | 1 |
| 1 | 410504000 | Bulb, Tail Lamp | 1 |
| 414513700 | Lens | ||
| 2 | 414516400 | Washer | 2 |
| 2 | M33200 | Nut M6 | 2 |
| 2 | 209632540 | Phillips Tapping Screw M3.9 X 25 | 2 |
| 3 | M42178 | Female Terminal | 3 |
| 3 | M42179 | Logement Femel.*Housing-Female | 3 |
| 2 | 207064544 | Hex. Screw M6 X 45 | 2 |
| M549103 | Sleeve | ||
| M5344156 | HOOK HITCH KIT Includes Items 57 to 64 | ||
| M5344208 | BRACKET-HITCH | ||
| 1 | M5440767 | HITCH PROTECTOR | 1 |
| 1 | M41012 | Retainer Pin | 1 |
| 1 | M41029 | Cheville *Pin | 1 |
| 1 | M545693 | Ressort *Spring | 1 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 4 | 207085044 | Hex. Screw M8 X 50 | 4 |
| 605351510 | SPACER | ||
| M535437 | Snow Guard | ||
| 6 | M36036 | Black, Rivet | 6 |
| 414975300 | RH Rear Footrest | ||
| 414975400 | LH Rear Footrest | ||
| M40870 | SCREW-HEX.TAPING | ||
| 605251249 | RH SIDE SNOW GUARD | ||
| 1 | 605251248 | LH SIDE SNOW GUARD | 1 |
| 2 | M5142828 | Lateral Snow Guard | 2 |
| M36097 | RIVET | ||
| 2 | M36005 | Rivet *Rivet | 2 |
| 605450158 | Tool Kit Includes Items 74 to 75 | ||
| 572036310 | BOX COVER |
