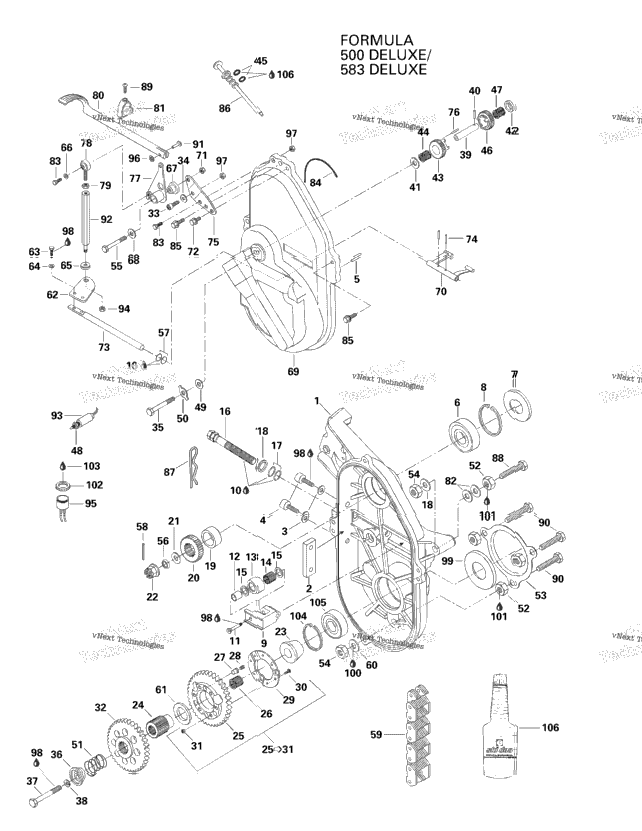

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 504150100 | Chaincase Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 504082400 | Chain Slider Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 732900040 | Copper Washer Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 2 | 222061665 | Hex. Screw M6 x 16 Formula 500 Deluxe. Formula 583 Deluxe. | 2 |
| 1 | 732620001 | CYLINDER PIN Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 405404400 | Ball Bearing <<6205>> Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 414882800 | OIL SEAL Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 371901700 | CIRCLIP Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 504081000 | MACHINED TENSIONER Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 413706100 | LITHIUM GREASE, 400 GR Formula Z 583. . | ||
| 1 | 732601144 | SCREW Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 504080200 | SPACER Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 414531300 | ROLLER Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 405403000 | NEEDLE BEARING Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 2 | 504080300 | WASHER Formula 500 Deluxe. Formula 583 Deluxe. | 2 |
| 732601275 | Tensioner Adjustment Screw (Forging) Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 2 | 414484400 | O-Ring Formula 500 Deluxe. Formula 583 Deluxe. | 2 |
| 3 | 224001211 | Flat Washer 10 mm Formula 500 Deluxe. Formula 583 Deluxe. | 3 |
| 504093400 | Shim Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 504078400 | Sprocket Narrow (23 Tooth) Formula Z 583. | ||
| 1 | 504084300 | Sprocket 25 Teeth (Large) . | 1 |
| 504087100 | Washer Formula 500 Deluxe. | ||
| 1 | 228911045 | Castellated Nut M20 Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 504076300 | RETAINING RING Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 504097700 | Coupling Axle Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 581095900 | SPROCKET ASS'Y (44 TEETH) Includes 25 - 31. Formula Z 583. | ||
| 1 | 581096800 | SPROCK ASSY, 44 TEETH . | 1 |
| 1 | 504088200 | SPROCKET (44 TEETH) Formula Z 583. | 1 |
| 504084400 | Sprocket, 44 Teeth . | ||
| 1 | 414772600 | NEEDLE BEARING Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 504076800 | DRIVE PIN Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 3 | 414772700 | SPRING Formula 500 Deluxe. Formula 583 Deluxe. | 3 |
| 504076100 | RETAINER RING Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 6 | 222052065 | Screw Hex. M5 x 20 Formula 500 Deluxe. Formula 583 Deluxe. | 6 |
| 228451046 | Nut Lock Hex. M5 Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 504096800 | SLIDING GEAR, 56 TEETH Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 222961665 | Allen Screw M6 x 16 Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 224061151 | Washer 6 mm Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 222089065 | Hex. Screw M8 x 90 Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 504099100 | Cap Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 222005065 | Hex. Screw M10 x 50 Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 504083100 | Reverse Shaft Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 732804003 | Spring Pin Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 504077300 | Spacer Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 504078700 | Ring Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 581122200 | SPROCK ASS?Y, 19 TEETH Includes 43 - 44. Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 414805000 | NEEDLE BEARING Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 414969400 | O-RING Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 581098200 | Sprocket Ass'y (19 Teeth) Includes 46 - 47. Formula 500 Deluxe. | ||
| 1 | 581096900 | Sprock Ass'y, 19 Teeth Formula 583 Deluxe. | 1 |
| 1 | 414773100 | NEEDLE BEARING Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 732610075 | Nut Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 504082900 | Washer Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 504087700 | TAB LOCK Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 504099200 | Release Spring Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 504083800 | Spacer Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 501022100 | Protector Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 5 | 228501045 | Elastic Stop Nut M10 Formula 500 Deluxe. Formula 583 Deluxe. | 5 |
| 1 | 222084565 | Screw-Hex.Cap Din.931 Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 417000900 | Spring Washer Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 2 | 414773200 | O-RING Formula 500 Deluxe. Formula 583 Deluxe. | 2 |
| 371801300 | Cotter Pin Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 412105500 | Drive Chain, (72 Links-Narrow) Formula 500 Deluxe. | ||
| 1 | 412106900 | Drive Chain (74 Links-Large) Formula 583 Deluxe. | 1 |
| 732900020 | Copper Washer Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 504094300 | WASHER Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 504094602 | Plate Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 2 | 222051465 | Hex. Screw M5 x 14 Formula 500 Deluxe. Formula 583 Deluxe. | 2 |
| 2 | 224751090 | Lock Washer 5 mm (Black) Formula 500 Deluxe. Formula 583 Deluxe. | 2 |
| 570045700 | Rubber Washer Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 224761110 | Lock Washer 6 mm Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 414927600 | Flanged Bushing Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 224081201 | FLAT WASHER Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 504098500 | Cover Chaincase Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 504075800 | Fork Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 228581045 | Elastic Stop Nut M8 Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 732600002 | Hex. Screw M6 x 16 Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 504142900 | Shaft Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 2 | 414772500 | SPRING PIN Formula 500 Deluxe. Formula 583 Deluxe. | 2 |
| 504095000 | Support-Pivot Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 570048600 | Alignement Rod Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 504094900 | Weld Plate Pivoting Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 414773500 | LH BALL-JOINT Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 228061045 | Nut M6 Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 570044600 | GRIP Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 572071100 | Stopper-Switch Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 504073700 | WASHER Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 2 | 222062065 | Hex. Screw M6 x 20 Formula 500 Deluxe. Formula 583 Deluxe. | 2 |
| 414362300 | O-Ring Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 4 | 732600004 | Hex. Flange Screw M6 x 30 Formula 500 Deluxe. Formula 583 Deluxe. | 4 |
| 572092700 | FILLER CAP ASS'Y Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 414575600 | Hair Pin Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 732601111 | Hex. Screw M10 x 70 Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 364901600 | Phillips Screw 8x1/2" Formula 500 Deluxe. Formula 583 Deluxe. | ||
| XXXX | Not Available As Spare Part - Hex. Screw M10 x 45 Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 390008900 | Rivet Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 504094700 | Tie Rod (Bar) Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 515172600 | Switch Connector Ass'y Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 228551045 | Elastic Stop Nut M5 Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 414805102 | DC Horn Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 389804300 | Push Nut Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 2 | 228561045 | Elastic Stop Nut M6 Formula 500 Deluxe. Formula 583 Deluxe. | 2 |
| 1 | 413707400 | Loctite 271, 10cc Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 581056500 | OIL SEAL ASS'Y Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 219704462 | ADHESIVE LOCTITE 515 50ML Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 1 | 413703000 | Loctite 242, 10 cc Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 414805101 | PLASTIC NUT Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml Formula 500 Deluxe. Formula 583 Deluxe. | 1 |
| 414784900 | Circlip (Int-rior) Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 405403900 | Ball Bearing 6206 Formula 500 Deluxe. Formula 583 Deluxe. | ||
| 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML (12 x 355 ml) Formula 500 Deluxe. Formula 583 Deluxe. |
