Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

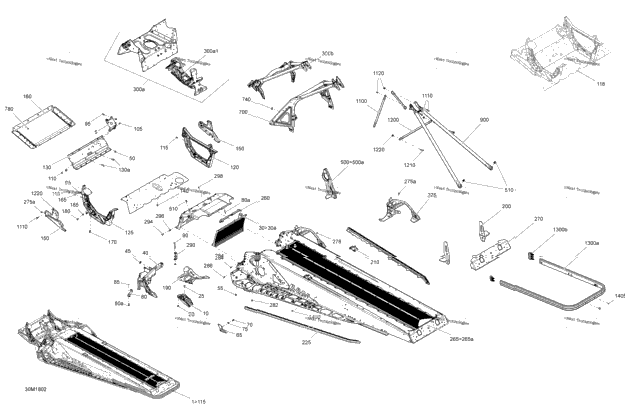

| 415130107 | BLACK FRAME TUNDRA XTREME Includes 10 to 10 | ||
| 1 | 518325943 | MAG Engine Support | 1 |
| 1 | 518325782 | RH Deflector, Black Polypropylene | 1 |
| 1 | 518325783 | LH Deflector, Black Polypropylene | 1 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 2 |
| 1 | 518326485 | Front Radiator | 1 |
| 1 | 518326486 | Front Radiator | 1 |
| 1 | 518326820 | LH Stirup | 1 |
| 2 | 250000079 | Panel Nut M5 X 0.8 | 2 |
| 2 | 293150119 | Hemlock Rivet, 6.5 mm | 2 |
| 3 | 293150174 | Hemlock Rivet, 6.4 mm | 3 |
| 1 | 518326960 | Support | 1 |
| 2 | 250000536 | Tork Screw M6 X 18 | 2 |
| 5 | 250200039 | Flat Washer | 5 |
| 1 | 518326986 | Attach | 1 |
| 2 | 250300027 | Clinch Stud M6 X 20 | 2 |
| 3 | 232561414 | Elastic Stop Nut M6 | 3 |
| 1 | 250000535 | Torx Screw M8 X 55 | 1 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 | 2 |
| 2 | 250000512 | Socket Screw Head 1/4-20 X 5/8'' | 2 |
| 2 | 250100140 | Elastic Hex. Flange Nut 1/4-20 | 2 |
| 4 | 293150191 | Monobolt Rivet, 4.8 mm | 4 |
| 1 | 518326927 | Module E TUNDRA Xtreme | 1 |
| 1 | 518326795 | RH Member | 1 |
| 1 | 518326796 | LH Member | 1 |
| 1 | 518326198 | Front Member | 1 |
| 2 | 250300038 | Clinch Stud | 2 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 1 | 518325949 | RH Front Member | 1 |
| 1 | 518325950 | LH Front Member | 1 |
| 1 | 518325951 | Front Bottom Plate | 1 |
| 5 | 390909100 | Avex Rivet | 5 |
| 2 | 293150182 | Monobolt Rivet 6.4 | 2 |
| 1 | 210261040 | Hex. Flange Screw M6 X 10 | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 1 | 518324874 | RH Reinforcement | 1 |
| 1 | 518324875 | LH Reinforcement | 1 |
| 518325955 | RH SLIDE BRACKET | ||
| 1 | 518325956 | LH Slide Bracket | 1 |
| 1 | 518325973 | RH Rear Base | 1 |
| 1 | 518325974 | LH Rear Base | 1 |
| 518325159 | RH ROLLER | ||
| 1 | 518325160 | LH Roller | 1 |
| 1 | 518326656 | Seal | 1 |
| 1 | 518326692 | Rear Radiator Ass'y, 154" | 1 |
| 1 | 293150144 | Stavex Rivet | 1 |
| 1 | 518327105 | Rear Cap | 1 |
| 1 | 518328938 | RH Stirup | 1 |
| 1 | 390909200 | Avex Rivet | 1 |
| 2 | 293730042 | Full Moon Dart 5 mm | 2 |
| 7 | 293150144 | Stavex Rivet | 7 |
| 12 | 293150146 | Henrob Rivet | 12 |
| 4 | 293150147 | Hemlock Rivet | 4 |
| 1 | 518326961 | U-Attach | 1 |
| 1 | 250000534 | Tork Screw M6 X 16 | 1 |
| 1 | 233061414 | Hex. Flange Nut M6 | 1 |
| 3 | 390402400 | Pop Rivet 3/16" | 3 |
| 1 | 518327133 | Driven Pulley Support Includes 500 to 500a | 1 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 | 3 |
| 1 | 518328306 | Front Member, S Module | 1 |
| 2 | 224061201 | Flat Washer | 2 |
| 4 | 390402200 | Pop Rivet 3/16" | 4 |
| 1 | 518326559 | Rear Member | 1 |
| 2 | 518325114 | Upper Lateral Column Support | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 1 | 518325115 | Center Column Support | 1 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 518326611 | Black Rear Bumper, 154" | 1 |
| 1 | 520000965 | Black RH Cap | 1 |
| 1 | 520000964 | Black LH Cap | 1 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 2 | 293730060 | Black, Dart 10 mm | 2 |
