Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

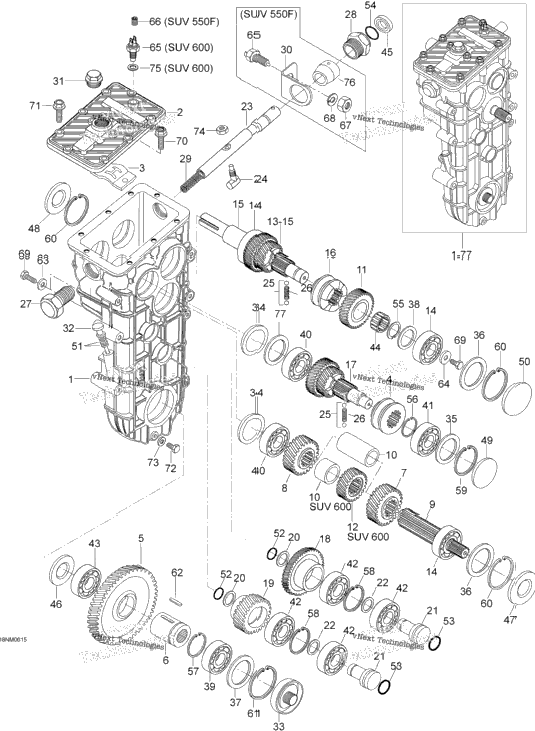

| M870156150 | Transmission Ass'y SUV 600, Includes 1 to 71 | ||
| 1 | M875156138 | Carter Chaine U*Case-Chain Mach. | 1 |
| M875156043 | COVER | ||
| M875156111 | H-SCHEME | ||
| M875156131 | Wheel Clutch | ||
| M875156114 | Sprocket 53 Th | ||
| M875156218 | SHAFT | ||
| M875156136 | Sprocket 27 Th SUV 600 | ||
| 1 | M875156054 | Sprocket 34Th | 1 |
| 1 | M875156069 | Axe *Shaft | 1 |
| 1 | M875156088 | SLEEVE SUV 600 | 1 |
| M875156135 | Sprocket 29 Th SUV 600 | ||
| M875156151 | Sprocket 29Th SUV 600 | ||
| 1 | M875156063 | Variator Shaft Includes 13 to 15 | 1 |
| M610063050 | BALL BEARING | ||
| M875156089 | Sleeve | ||
| M875156005 | WHEEL-CLUTCH | ||
| 1 | M875156068 | Reverse Shaft | 1 |
| M875156206 | Sprocket 28Th SUV 600 | ||
| M875156156 | Sprocket 31 Th SUV 600 | ||
| 2 | M875156094 | Ring | 2 |
| 2 | M875147204 | Axe *Shaft | 2 |
| M875147205 | Washer | ||
| M875156072 | SHAFT | ||
| M875156073 | PIN | ||
| 4 | M616810064 | Bille *Ball | 4 |
| 2 | M875156105 | Ressort *Spring | 2 |
| 1 | M875156076 | Sleeve Nut | 1 |
| M875156077 | SLEEVE NUT | ||
| 1 | M875156078 | Ressort *Spring | 1 |
| XXX | Not Available As Spare Parts | ||
| M875156098 | PLUG | ||
| M875156097 | Filler Cap Ass'y | ||
| M875156104 | Bouchon *Plug | ||
| 2 | M875152953 | Bouchon *Plug | 2 |
| 2 | M617394252 | Shim | 2 |
| 3 | M617395065 | Shim | 3 |
| 1 | M617395568 | Shim | 1 |
| 1 | M616092542 | WASHER-AXIAL | 1 |
| M610060080 | BALL BEARING | ||
| M610063044G | BALL BEARING | ||
| M610063040 | BEARING | ||
| 4 | M610063036 | Roulement Bille*Ball Bearing | 4 |
| M6008 | BALL BEARING | ||
| 1 | M611002529 | Needle Bearing | 1 |
| 1 | M614102031 | Oil Seal | 1 |
| 1 | M614102852 | Oil Seal | 1 |
| 1 | M614102562 | Oil Seal | 1 |
| 1 | M614103562 | Oil Seal | 1 |
| 1 | M614100052 | Bouchon *Plug | 1 |
| 1 | M614100062 | Bouchon *Plug | 1 |
| 3 | M614600725 | O'Ring | 3 |
| M614601224 | O'RING | ||
| 2 | M614602431 | O'Ring | 2 |
| 1 | M614601523 | O'Ring | 1 |
| 1 | M617450025 | Circlip *Circlip | 1 |
| M617450028 | Circlip *Circlip | ||
| 1 | M617300040 | CIRCLIP | 1 |
| 2 | M617330047 | Circlip *Circlip | 2 |
| 1 | M31002 | Circlip *Circlip | 1 |
| M617330062 | LOCK RING | ||
| 1 | M617330068 | Circlip *Circlip | 1 |
| 1 | M603345080 | KEY | 1 |
| 2 | M501150902 | WASHER | 2 |
| M875156112 | WASHER | ||
| 1 | M654100225 | Transmetteur *Sender-Backup | 1 |
| 3 | M40036 | Screw-Hex. | 3 |
| M534801362 | Screw | ||
| M537001402 | SCREW | ||
| M528801342 | PLUG | ||
| M615580812 | RING-GASKET | ||
| M510611002 | NUT | ||
| M617391218 | Shim | ||
| M617394352 | SHIM 0.5 MM |
