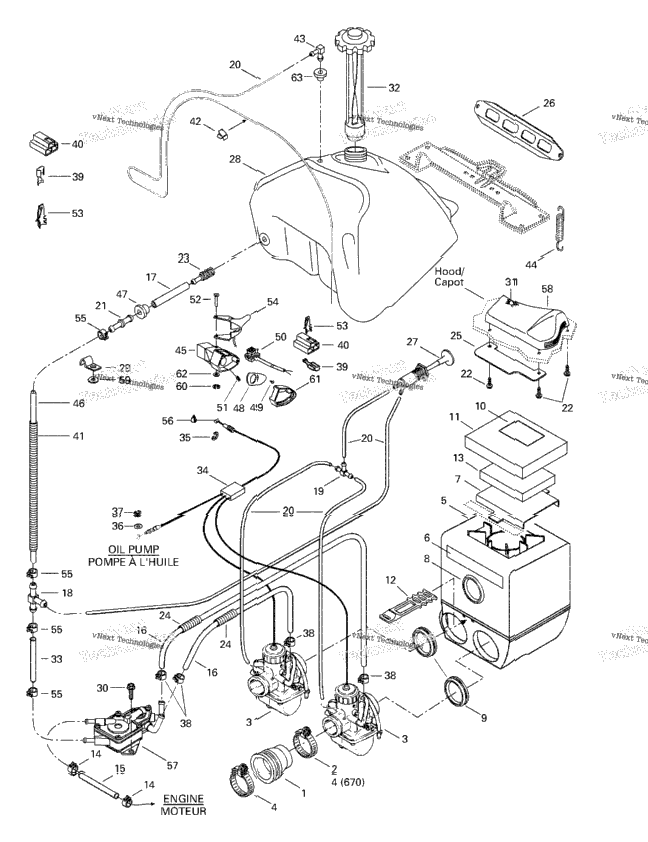

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 570048100 | Adaptor Caburetor (38 mm) Summit 500. Summit 583. | ||
| 570048400 | Adaptor Caburetor Summit 670. | ||
| 415038400 | Clamp (50 mm) Summit 500. Summit 583. | ||
| 403134800 | Carburetor VM 38-384 (PTO) Summit 500. | ||
| 403136500 | Carburetor VM 38-388 (PTO) Summit 583. | ||
| 403136900 | Carburetor VM 40-103 (PTO) Summit 670. | ||
| 403134900 | Carburetor VM 38-385 (MAG) Summit 500. | ||
| 403136600 | Carburetor VM 38-389 (MAG) Summit 583. | ||
| 403137000 | Carburetor VM 40-104 (MAG) Summit 670. | ||
| 414532800 | Collar | ||
| 580667101 | Air Silencer Ass'y Includes 5 - 13. Summit 500. Summit 583. | ||
| 580667102 | Air Silencer Ass'y Summit 670. | ||
| 414857500 | H.A.C. Decal | ||
| 517283900 | Grill Intake | ||
| 570044000 | H.A.C. Adaptor | ||
| 570048900 | Intake Adaptor VM 38 Summit 500. Summit 583. | ||
| 570049000 | Intake Adaptor VM 40 Summit 670. | ||
| 414161500 | Warning Decal | ||
| 415105900 | Exterior Foam | ||
| 570069700 | LATCH | ||
| 1 | 415014800 | Air Filter | 1 |
| 2 | 414415200 | Spring Clamp | 2 |
| 1 | 219704439 | Hose 1/4 1000Mm Long - Call Your Local BRP Dealership | 1 |
| 415117800 | Tube | ||
| XXXX | Not Available As Spare Part - Fuel Line 4.76 mm Summit 500. | ||
| 1 | 415005700 | Hose Summit 583. Summit 670. | 1 |
| 1 | 414222500 | T-fitting Summit 500. | 1 |
| 1 | 415119300 | T-Fitting Summit 583. Summit 670. | 1 |
| 1 | 414222400 | T-Fitting | 1 |
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 1 | 414518500 | Male Connector Summit 500. | 1 |
| 1 | 414872700 | Male Connector Summit 583. Summit 670. | 1 |
| 3 | 365901100 | HEX. SCREW 12 X 3/4 | 3 |
| 1 | 414865700 | Fuel Filter Summit 500. | 1 |
| 1 | 414872100 | Fuel Filter Strainer Summit 583. Summit 670. | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 517298800 | Deflector | ||
| 517249200 | Fuel Tank Bracket | ||
| 1 | 415060500 | Primer | 1 |
| 572108900 | Fuel Tank | ||
| 1 | 415018200 | CLIP | 1 |
| 732601120 | Hex. Screw M6 x 12 | ||
| 1 | 414972600 | Air Filter | 1 |
| 1 | 572161200 | Fuel Tank Cap | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long Summit 500. | 1 |
| 415111400 | Formed Tube Summit 583. Summit 670. | ||
| 414968801 | Throttle Cable and Housing (38 mm) Summit 500. Summit 583. | ||
| 414966201 | Throttle Cable and Housing (40 mm) Summit 670. | ||
| 1 | 414274500 | Circlip | 1 |
| 1 | 414753300 | Washer | 1 |
| 1 | 414753500 | Circlip | 1 |
| 4 | 414420700 | Spring Clamp | 4 |
| 561503200 | Female Terminal PACKARD | ||
| 409008500 | Female Terminal Housing (3 circuits) | ||
| 1 | 219704407 | Tubing 10 MM 1000MM Long Summit 500. | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long Summit 583. Summit 670. | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 414814100 | Male Connector | 1 |
| 2 | 517182100 | SPRING | 2 |
| 1 | 572086700 | Throttle Handle Housing | 1 |
| 219704411 | FUEL LINE 10000MM LONG Summit 583. Summit 670. | ||
| 1 | 570045500 | Grommet Summit 500. | 1 |
| 1 | 570273900 | Grommet Summit 583. Summit 670. | 1 |
| 1 | 572099400 | Plate | 1 |
| 1 | 414473200 | Screw | 1 |
| 1 | 414612700 | Kill Switch | 1 |
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 1 | 414438700 | Lever Pin | 1 |
| 561503400 | MALE TERMINAL (18/16 GA.) | ||
| 572090300 | Heat Throttle Handle Ass'y (38 mm) Summit 500. Summit 583. | ||
| 572101900 | Handle Ass'y 40 mm Summit 670. | ||
| 4 | 414554800 | Spring Clamp Summit 500. | 4 |
| 4 | 414655700 | Spring Clamp Summit 583. Summit 670. | 4 |
| 413701700 | Dielectric Grease, 3 Oz | ||
| 403801100 | FUEL PUMP ASS'Y Summit 500. | ||
| 403801200 | Fuel Pump Ass'y Summit 583. Summit 670. | ||
| 572077900 | INTAKE COVER | ||
| 1 | 414438900 | Washer | 1 |
| 1 | 414439000 | Circlip | 1 |
| 1 | 572044600 | THROTTLE COVER Summit 500. | 1 |
| 1 | 224061121 | Flat Washer | 1 |
| 1 | 570135100 | Grommet | 1 |
