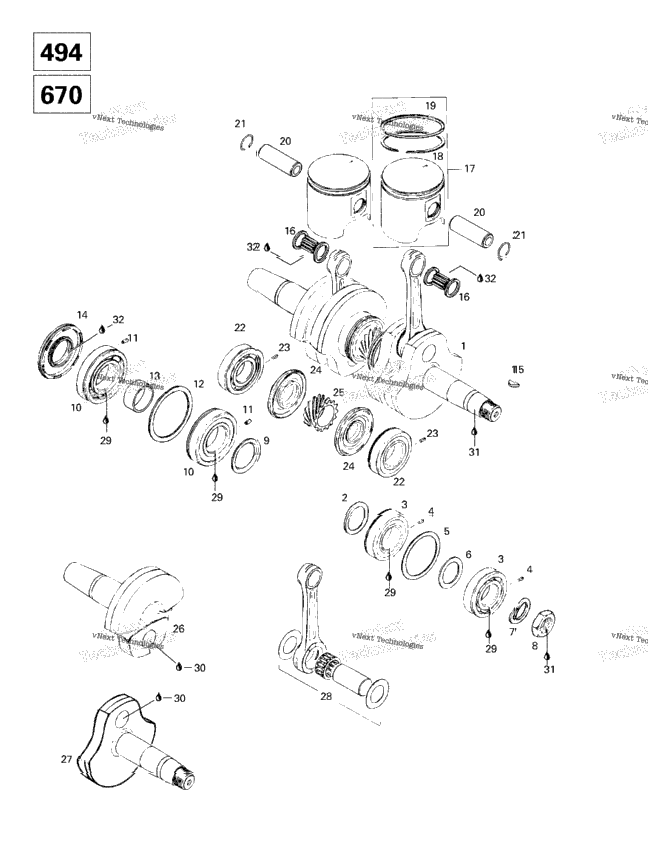

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420886932 | Crankshaft Ass'y Includes 1 - 15. (It. 7 & 8 Not Included) Summit 500. | ||
| 420887980 | Crankshaft Ass'y (It. 7 & 8 Not Included) Summit 670. | ||
| 1 | 420827445 | DISTANCE RING Summit 500. Summit 670. | 1 |
| 420932589 | BALL BEARING 6206 ASS'Y Includes 3 - 4. Summit 500. Summit 670. | ||
| 420929972 | Dowel Pin Summit 500. Summit 670. | ||
| 1 | 420427684 | ADJUSTMENT WASHER Summit 500. Summit 670. | 1 |
| 1 | 420827050 | RETAINING DISK Summit 500. Summit 670. | 1 |
| 1 | 420945759 | Lock Washer, 22 mm Summit 500. Summit 670. | 1 |
| 1 | 420842230 | Hex. Nut M22 X 15 Summit 500. Summit 670. | 1 |
| 1 | 420827760 | DISTANCE RING Summit 500. Summit 670. | 1 |
| 2 | 420832239 | Ball Bearing 6207 Ass'y Includes 10 - 11. Summit 500. Summit 670. | 2 |
| 1 | 420927710 | Retaining Disk Summit 500. Summit 670. | 1 |
| 420847684 | Distance Sleeve Summit 500. Summit 670. | ||
| 1 | 420831950 | Oil Seal Summit 500. Summit 670. | 1 |
| 1 | 420246015 | Woodruff Key Summit 500. Summit 670. | 1 |
| 420832438 | Needle Bearing Summit 500. | ||
| 2 | 420832425 | Needle Bearing Summit 670. | 2 |
| 420887553 | Piston Ass'y (2 rings 69.39 mm) Includes 17 - 19. Summit 500. | ||
| 420887610 | Piston Ass'y (2 rings 77.90 mm) Summit 670. | ||
| 420887554 | Oversize Pist. Ass'y (2 rings 69.64 mm) Summit 500. | ||
| 420887611 | Oversize Pist. Ass'y (2 rings 78.15 mm) Summit 670. | ||
| 420915985 | Rectangular Ring 69.5 mm Summit 500. | ||
| 420815025 | Rectangular Ring 78.0 mm Summit 670. | ||
| 420915986 | OVERSIZE RECTANGULAR RING 69.75 MM Summit 500. | ||
| 420815021 | Oversize Rectangular Ring 78.25 mm Summit 670. | ||
| 420815045 | Semi-trapez Ring 69.5 mm Summit 500. | ||
| 2 | 420815090 | SEMI-TRAPEZ RING 78.00 MM Summit 670. | 2 |
| 420815046 | Oversize Semi-trapez Ring 69.75 mm Summit 500. | ||
| 420815091 | Oversize Semi-trapez Ring 78.25 mm Summit 670. | ||
| 420916186 | GUDGEON PIN Summit 500. | ||
| 420916370 | GUDGEON PIN Summit 670. | ||
| 4 | 420945735 | Piston Circlip Summit 500. | 4 |
| 4 | 420845100 | CIRCLIP Summit 670. | 4 |
| 420932589 | BALL BEARING 6206 ASS'Y Includes 22 - 23. Summit 500. | ||
| 420832538 | BALL BEARING Summit 670. | ||
| 2 | 420831990 | Oil Seal Summit 500. Summit 670. | 2 |
| 420935748 | Central Gear 14 Teeth Summit 500. Summit 670. | ||
| 420818660 | Crankshaft (PTO side) Summit 500. | ||
| 420818702 | Half Crankshaft (P.T.O.) Summit 670. | ||
| 420818690 | Crankshaft (MAG side) Summit 500. | ||
| 420818732 | Half Crankshaft (MAG) Summit 670. | ||
| 420886955 | Crankshaft Repair Kit (PTO side) Summit 500. | ||
| 420887038 | Crankshaft Rod Repair Kit (MAG) Summit 670. | ||
| 420886956 | CRANKSHAFT REPAIR KIT (MAG SIDE) Summit 500. | ||
| 420887039 | Crankshaft Rod Repair Kit (P.T.O.) Summit 670. | ||
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML Summit 500. Summit 670. | ||
| 1 | 293800039 | Loctite 642, 50 ml Summit 500. Summit 670. | 1 |
| 1 | 413703000 | Loctite 242, 10 cc Summit 500. Summit 670. | 1 |
| 1 | 413707000 | Dow Corning 111, 150 g Summit 500. Summit 670. | 1 |
