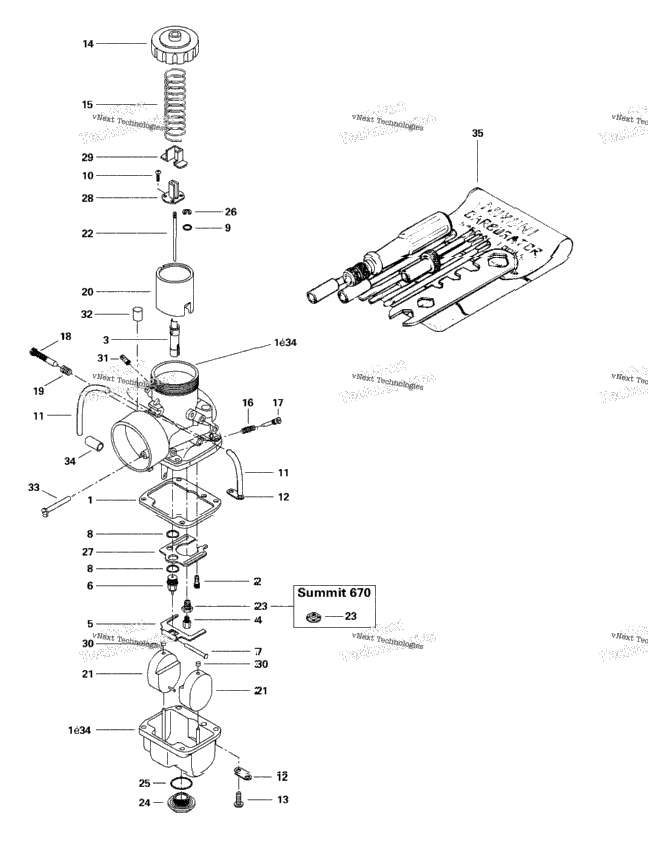

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 403134800 | Carburetor VM 38-384 (PTO) Includes 1 - 34. Summit 500. | ||
| 403134900 | Carburetor VM 38-385 (MAG) Summit 500. | ||
| 403136500 | Carburetor VM 38-388 (PTO) Includes 1 - 34. Summit 583. | ||
| 403136600 | Carburetor VM 38-389 (MAG) Summit 583. | ||
| 403136900 | Carburetor VM 40-103 (PTO) Includes 1 - 34. Summit 670. | ||
| 403137000 | Carburetor VM 40-104 (MAG) Summit 670. | ||
| 404104700 | GASKET | ||
| 404148100 | Pilot Jet PJ 75 | ||
| 404157600 | Needle Jet NJ-480-Q6 Summit 500. | ||
| 2 | 404161700 | NEEDLE JET 480-P-8 Summit 583. | 2 |
| 404148300 | Needle Jet 224-AA-2 Summit 670. | ||
| 1 | 404106000 | Main Jet 350 Summit 500. | 1 |
| 1 | 404101400 | Main Jet 330 Summit 500. | 1 |
| 1 | 404101400 | Main Jet 330 Summit 583. | 1 |
| 1 | 404101300 | Main Jet MJ 320 (PTO) Summit 583. | 1 |
| 1 | 404106300 | Main Jet 380 Summit 670. | 1 |
| 1 | 404106200 | Main Jet MJ 370 (MAG) Summit 670. | 1 |
| 2 | 404105000 | FLOAT LEVER | 2 |
| 2 | 404147400 | Needle Valve 1.5 | 2 |
| 2 | 404103300 | Lever Pin | 2 |
| 4 | 404101600 | Seat Washer | 4 |
| 2 | 404117000 | Packing Summit 500. Summit 583. | 2 |
| 4 | 404121300 | Screw With Washer | 4 |
| 404109800 | Hose | ||
| 2 | 404103000 | PLATE | 2 |
| 8 | 404102000 | Screw With Lock Washer | 8 |
| 404105100 | COVER Summit 500. Summit 583. | ||
| 404126800 | Cover Summit 670. | ||
| 2 | 404154800 | Spring Summit 500. Summit 583. | 2 |
| 404156500 | Spring Summit 670. | ||
| 404139800 | SPRING | ||
| 2 | 404149000 | AIR SCREW | 2 |
| 404102800 | IDLE SPEED SCREW Summit 500. Summit 583. | ||
| 404151900 | Throttle Adjustment Screw Summit 670. | ||
| 2 | 404101700 | Spring | 2 |
| 404161600 | Throttle Valve 2.5 Summit 500. Summit 583. | ||
| 404161300 | Throttle Valve CA 2.5 Summit 670. | ||
| 404105400 | FLOAT | ||
| 404161500 | Jet Needle J8-6DHY48 Summit 500. | ||
| 404156800 | Jet Needle J8 6FEY1 Summit 583. | ||
| 404157700 | Jet Needle J8 7DPI1-3 Summit 670. | ||
| 2 | 404105500 | Guide Screw Summit 500. Summit 583. | 2 |
| 404116700 | Washer Summit 670. | ||
| 404105600 | DRAIN PLUG SCREW Summit 500. Summit 583. | ||
| 404112900 | Drain Plug Screw Summit 670. | ||
| 2 | 404101500 | O-RING Summit 500. Summit 583. | 2 |
| 404112800 | Washer Summit 670. | ||
| 2 | 404152400 | E-Ring Summit 500. Summit 583. | 2 |
| 2 | 404152200 | E-Ring Summit 670. | 2 |
| XXXX | Not Available As Spare Part - Baffle Plate Summit 500. Summit 583. | ||
| 404112700 | Baffle Summit 670. | ||
| 2 | 404160800 | CONNECTOR | 2 |
| 2 | 404122100 | Cover Summit 500. Summit 583. | 2 |
| 404128100 | Cover Summit 670. | ||
| 4 | 404105800 | Cap | 4 |
| 2 | 404153400 | Nipple | 2 |
| 404158900 | Filter | ||
| 404131700 | Plug Screw | ||
| 2 | 404140700 | Cap | 2 |
| 404112000 | TOOL KIT |
