Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

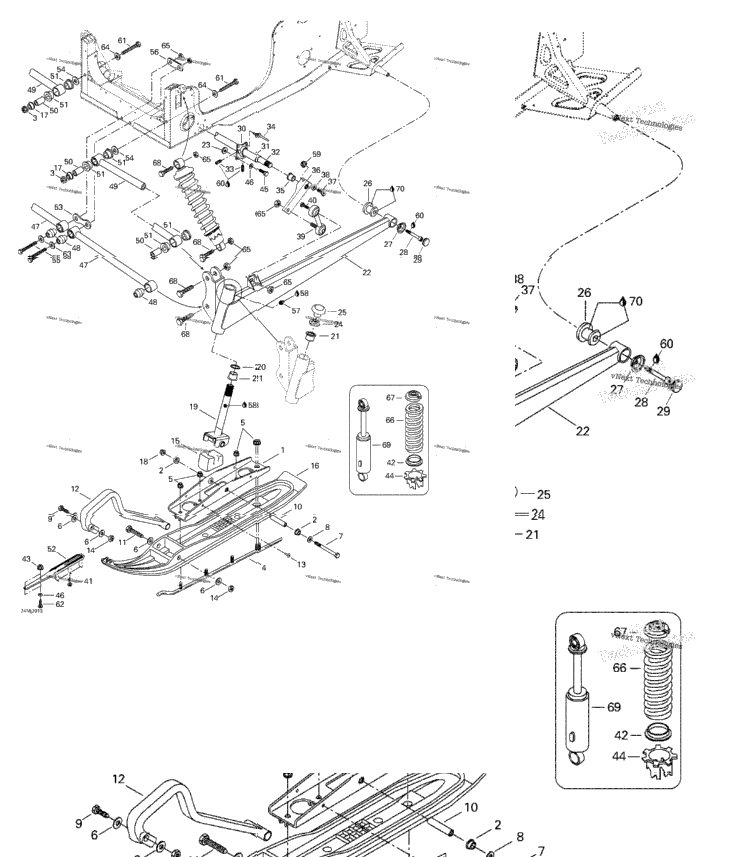

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 505070055 | Bridge-ass'y Includes 1 - 2. | ||
| 505070479 | Bridge Ass'y | ||
| 505070001 | BUSHING | ||
| 2 | 233201414 | Hex. Flange Elastic Nut M10 | 2 |
| 860501900 | CARBIDE RUNNER Includes 4 - 5. | ||
| 8 | 233601416 | Elastic Locking Nut M10 X 1.5 | 8 |
| 8 | 234081410 | Flat Washer 8 mm | 8 |
| 2 | 250000001 | HEX. SCREW M10 X 110 | 2 |
| 2 | 732900049 | Washer | 2 |
| 2 | 207085044 | Hex. Screw M8 X 50 | 2 |
| 2 | 506133300 | Spacer | 2 |
| 2 | 230080044 | SCREW-HEX. M8 X 100 | 2 |
| 2 | 572101000 | Plastic Handle (Europe) | 2 |
| 390911100 | RIVET_POP 1/4 | ||
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 2 | 506151233 | Ski Stopper | 2 |
| 2 | 505070189 | Ski-Liner Flex | 2 |
| 506148400 | Spacer | ||
| 506151234 | Ski Leg | ||
| 2 | 505070004 | WASHER | 2 |
| 4 | 505070003 | Cushion | 4 |
| 505070386 | RH Swing Arm | ||
| 505070387 | LH Swing Arm | ||
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 371910400 | CIRCLIP | 2 |
| 2 | 572091300 | Cap | 2 |
| 570062700 | Damper | ||
| 506128500 | Cup | ||
| 2 | 205002544 | Socket Head Screw M10 X 25 | 2 |
| 2 | 572045900 | CAP | 2 |
| 505070276 | RH Housing | ||
| 506138900 | LH Housing | ||
| 506136200 | Main Tube | ||
| 506134300 | Stabilizator | ||
| 4 | 414440800 | Socket Set Screw M8 X 10 | 4 |
| 390404900 | Rivet pop 1/4" | ||
| 2 | 415039500 | CUSHION | 2 |
| 506134402 | Stabilizer Lever | ||
| 2 | 207084544 | Hex. Screw M8 X 45 | 2 |
| 224081410 | Washer 8 mm | ||
| 415101400 | Double Ball Joint | ||
| 2 | 207103544 | Hex. Screw M10 X 35 | 2 |
| 12 | 250000016 | Phillips Pan Head Quadrex Screw | 12 |
| 2 | 503165100 | GUIDE_SPRING | 2 |
| 4 | 233251414 | Hex. Flange Elastic Nut M5 | 4 |
| 503169000 | Cam | ||
| 2 | 207162544 | Hex. Screw M6 X 25 | 2 |
| 6 | 234061410 | Flat Washer 6 mm | 6 |
| 505070140 | Lower Arm Ass'y Includes 47 - 48. | ||
| 505070025 | Bushing | ||
| 505070405 | Adjustable Arm Ass'y Includes 49 - 51. | ||
| 505070143 | Bushing | ||
| 506149100 | CUSHION | ||
| 505070232 | PROACTIVE CONTROL (GT ONLY) | ||
| 506147900 | Plate | ||
| 2 | 506148100 | WASHER | 2 |
| 2 | 207008544 | Hex. Screw M10 x 85 | 2 |
| 506148300 | Plate | ||
| 2 | 408200700 | Grease Fitting | 2 |
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 230001044 | HEX. SCREW M10 X 110 | ||
| 250000015 | Socket Head Screw M5 x 25 (Europe) | ||
| 2 | 503175800 | Washer | 2 |
| 399910100 | Flat Washer | ||
| 14 | 233601416 | Elastic Locking Nut M10 X 1.5 | 14 |
| 505070153 | Spring | ||
| 2 | 503140600 | Spring Stopper | 2 |
| 8 | 207005544 | Hex. Screw M10 X 55 | 8 |
| 505070171 | Front Shock | ||
| 1 | 293550014 | Grease, Super Lube #823-28 | 1 |
