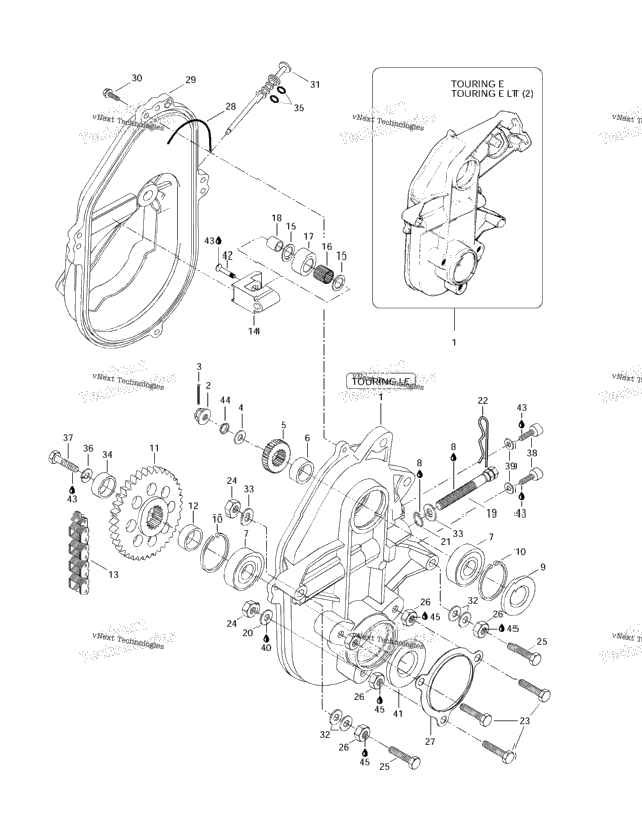

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 504144600 | Machined Chaincase Touring E. Touring E LT (2). | ||
| 504144701 | Chaincase Touring LE. | ||
| 1 | 228911045 | Castellated Nut M20 Touring E. Touring E LT (2). Touring LE. | 1 |
| 371801300 | Cotter Pin Touring E. Touring E LT (2). Touring LE. | ||
| 504087100 | Washer Touring E. Touring E LT (2). Touring LE. | ||
| 504091200 | Sprocket, 21 Teeth Touring E. Touring E LT (2). Touring LE. | ||
| 504093400 | Shim Touring E. Touring E LT (2). Touring LE. | ||
| 2 | 405404400 | Ball Bearing <<6205>> Touring E. Touring E LT (2). Touring LE. | 2 |
| 413706100 | LITHIUM GREASE, 400 GR Touring E. Touring E LT (2). Touring LE. | ||
| 1 | 414882800 | OIL SEAL Touring E. Touring E LT (2). Touring LE. | 1 |
| 371901700 | CIRCLIP Touring E. Touring E LT (2). Touring LE. | ||
| 504070900 | Sprocket 44Th Touring E. Touring E LT (2). Touring LE. | ||
| 504146400 | Spacer Touring E. Touring E LT (2). Touring LE. | ||
| 412105500 | Drive Chain, (72 Links-Narrow) Touring E. Touring E LT (2). Touring LE. | ||
| 1 | 504081000 | MACHINED TENSIONER Touring E. Touring E LT (2). Touring LE. | 1 |
| 2 | 504080300 | WASHER Touring E. Touring E LT (2). Touring LE. | 2 |
| 1 | 405403000 | NEEDLE BEARING Touring E. Touring E LT (2). Touring LE. | 1 |
| 414531300 | ROLLER Touring E. Touring E LT (2). Touring LE. | ||
| 1 | 504080200 | SPACER Touring E. Touring E LT (2). Touring LE. | 1 |
| 732601267 | Tensioner Adjustment Screw (Forging) Touring E. Touring E LT (2). Touring LE. | ||
| 732900020 | Copper Washer Touring E. Touring E LT (2). Touring LE. | ||
| 1 | 414484400 | O-Ring Touring E. Touring E LT (2). Touring LE. | 1 |
| 1 | 414575600 | Hair Pin Touring E. Touring E LT (2). Touring LE. | 1 |
| 732601112 | Hex. Screw M10 x 40 Touring E. Touring E LT (2). Touring LE. | ||
| 5 | 228501045 | Elastic Stop Nut M10 Touring E. Touring E LT (2). Touring LE. | 5 |
| 732601111 | Hex. Screw M10 x 70 Touring E. Touring E LT (2). Touring LE. | ||
| 504083800 | Spacer Touring E. Touring E LT (2). Touring LE. | ||
| 501022100 | Protector Touring E. Touring E LT (2). Touring LE. | ||
| 414362300 | O-Ring Touring E. Touring E LT (2). Touring LE. | ||
| 080037100 | CASTING COVER Touring E. Touring E LT (2). Touring LE. | ||
| 4 | 732600004 | Hex. Flange Screw M6 x 30 Touring E. Touring E LT (2). Touring LE. | 4 |
| 572092700 | FILLER CAP ASS'Y Touring E. Touring E LT (2). Touring LE. | ||
| 1 | 504073700 | WASHER Touring E. Touring E LT (2). Touring LE. | 1 |
| 3 | 224001211 | Flat Washer 10 mm Touring E. Touring E LT (2). Touring LE. | 3 |
| 1 | 501026200 | CAP Touring E. Touring E LT (2). Touring LE. | 1 |
| 414969400 | O-RING Touring E. Touring E LT (2). Touring LE. | ||
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 Touring E. Touring E LT (2). Touring LE. | ||
| 1 | 222002565 | Hex. Screw M10 x 25 Touring E. Touring E LT (2). Touring LE. | 1 |
| 732601132 | Socket Head Screw M8 x 10 Touring E. Touring E LT (2). Touring LE. | ||
| 2 | 504082900 | Washer Touring E. Touring E LT (2). Touring LE. | 2 |
| 219704462 | ADHESIVE LOCTITE 515 50ML Touring E. Touring E LT (2). Touring LE. | ||
| 1 | 581101700 | Oil Seal Touring E. Touring E LT (2). Touring LE. | 1 |
| 1 | 732601144 | SCREW Touring E. Touring E LT (2). Touring LE. | 1 |
| 1 | 413707400 | Loctite 271, 10cc Touring E. Touring E LT (2). Touring LE. | 1 |
| 417000900 | Spring Washer Touring E. Touring E LT (2). Touring LE. | ||
| 1 | 413703000 | Loctite 242, 10 cc Touring E. Touring E LT (2). Touring LE. | 1 |
