Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

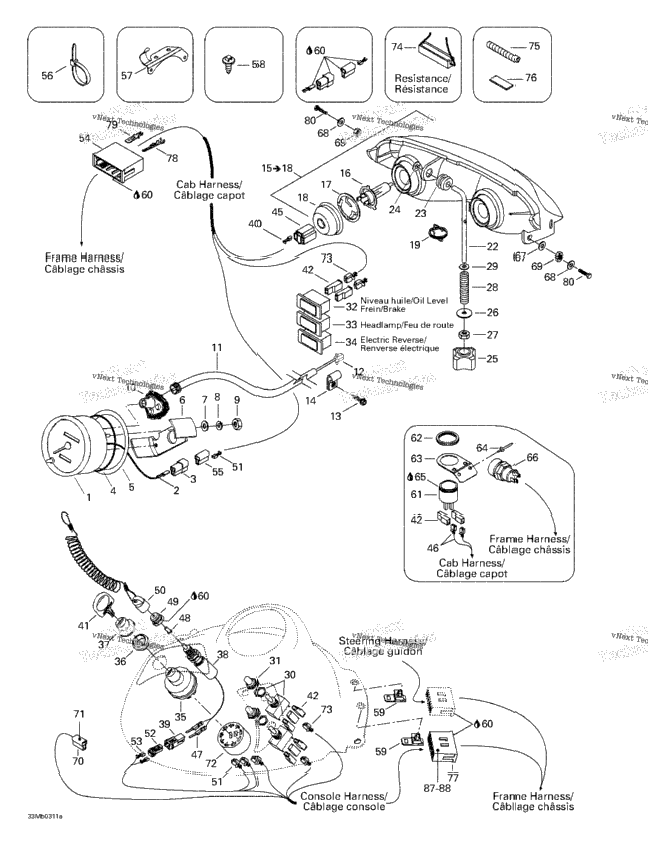

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 515175335 | Speedometer, Kmh | ||
| 515175336 | Speedometer, Mph | ||
| 409210000 | MALE TERMINAL | ||
| 409204500 | MALE HOUSING | ||
| 414807100 | O-Ring | ||
| 517258500 | Washer | ||
| 414806500 | Case Holder | ||
| 2 | 391301700 | Washer | 2 |
| 414806700 | Lock Washer | ||
| 414806900 | Nut | ||
| 515175400 | Drive Angle | ||
| 415101500 | Speedometer Cable | ||
| 1 | 572010100 | SPEEDO DRIVE INSERT | 1 |
| XXXX | Not Available As Spare Part - Hex. Tapping Screw | ||
| 3 | 414176000 | Open Clamp | 3 |
| 1 | 515175909 | Halogen Headlamp Includes 15 - 18. | 1 |
| 2 | 410504401 | Halogen Bulb | 2 |
| 515175910 | BULB HOLDER | ||
| 515175911 | COVER | ||
| 1 | 515175324 | SPRING 550 F. | 1 |
| 1 | 517295800 | ADJUSTER ROD | 1 |
| 1 | 415100800 | Grommet | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 1 | 515175548 | Handle | 1 |
| 1 | 224060251 | Washer | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 415100600 | SPRING | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 2 | 410107300 | Switch (Heating Grip) | 2 |
| 2 | 515175281 | Switch Cover | 2 |
| 1 | 515175728 | PILOT LAMP, OIL LEVEL/BRAKE | 1 |
| 1 | 515175726 | PILOT LAMP, HEADLAMP | 1 |
| 1 | 410113400 | PILOT LAMP, ELECTRIC REVERSE | 1 |
| 410113602 | IGNITION SWITCH | ||
| 1 | 410112100 | FACE NUT | 1 |
| 1 | 570013700 | Switch Boot | 1 |
| 1 | 515175653 | Brake Switch | 1 |
| 1 | 515175654 | Male Terminal Housing, 2 Circuits | 1 |
| 515175320 | FEMALE TERMINAL | ||
| 414991700 | BLANK KEY | ||
| 1 | 409010400 | Female Terminal Housing, 1 Circuit | 1 |
| 515175623 | Console Harness, Not Shown | ||
| 515175847 | Hood Harness, Not Shown | ||
| 409202700 | FEMALE TERMINAL HOUSING, 3 CIRCUITS | ||
| 1 | 409010600 | FEMALE TERMINAL | 1 |
| 2 | 515175232 | Male Terminal | 2 |
| 1 | 570151100 | Plunger Cap | 1 |
| 1 | 515145900 | Switch Nut | 1 |
| 1 | 515151500 | Cap Ass’Y | 1 |
| 1 | 561503100 | FEMALE TERMINAL | 1 |
| 1 | 515175658 | Female Housing, 2 Circuits | 1 |
| 1 | 515175231 | Female Terminal | 1 |
| 1 | 515175720 | MALE TERMINAL HOUSING, 11 CIRCUITS | 1 |
| 1 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership | 1 |
| 515175254 | Cable Support | ||
| 3 | 293730018 | Mount Dart | 3 |
| 2 | 515175283 | Housing Support | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 415060900 | Horn | 1 |
| 1 | 414805101 | PLASTIC NUT | 1 |
| 1 | 515175688 | PLATE | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 415101200 | Push Button | 1 |
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 2 | 234051410 | Flat Washer M5 | 2 |
| 2 | 250100018 | NUT M5 | 2 |
| 1 | 572150700 | FEMALE TERMINAL HOUSING, 9 CIRCUITS | 1 |
| 1 | 409010100 | Female Terminal | 1 |
| 1 | 515175241 | Resistance | 1 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 293740005 | Tape | ||
| 1 | 515175351 | MALE TERMINAL HOUSING, 15 CIRCUITS | 1 |
| 1 | 515175232 | Male Terminal | 1 |
| 1 | 515175273 | MALE TERMINAL | 1 |
| 2 | 207053544 | Hex. Screw M5 X 35 | 2 |
