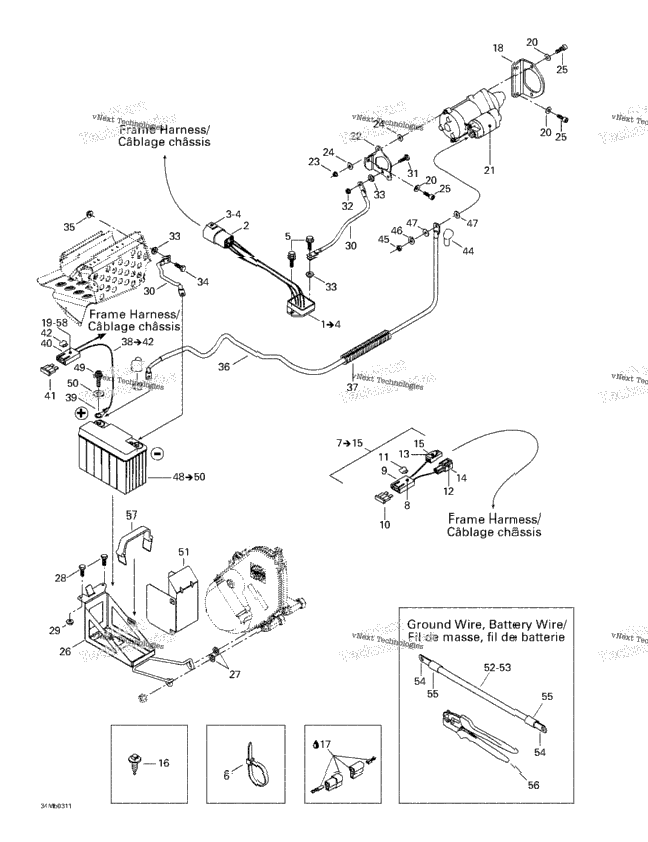

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 515175939 | Voltage Regulator Ass'y Includes 1 - 4. | 1 |
| 1 | 278001477 | FEMALE HOUSING, 4 CIRCUITS | 1 |
| XXXX | Not Available As Spare Part - Male Terminal | ||
| 1 | 278001478 | MALE WEDGE, 4 CIRCUITS | 1 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| XXXX | Not Available As Spare Part - Fuse Wire Ass'y (ground) Includes 7 - 15. | ||
| 2 | 409011600 | Female Terminal | 2 |
| 1 | 409004000 | Fuse Holder | 1 |
| 1 | 409003900 | Fuse, 20 Amperes | 1 |
| 1 | 409014200 | CLIP | 1 |
| 1 | 515175273 | MALE TERMINAL | 1 |
| 1 | 515175282 | Female Terminal | 1 |
| 1 | 515175509 | MALE TERMINAL HOUSING, 1 CIRCUIT | 1 |
| 1 | 515175510 | FEMALE TERMINAL HOUSING, 1 CIRCUIT | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 515175659 | Starter Bracket (PTO) 380 F. | ||
| 515175652 | STARTER BRACKET 550 F. | ||
| XXXX | Not Available As Spare Part - Female Terminal | ||
| 5 | 234181401 | Lock Washer 8 mm | 5 |
| 515175795 | STARTER ASS'Y | ||
| 515175660 | Starter Bracket (MAG) 380 F. | ||
| 515175633 | STARTER SUPPORT MAG SIDE 550 F. | ||
| 2 | 232551414 | Elastic Stop Nut M5 | 2 |
| 4 | 391301700 | Washer | 4 |
| 5 | 205082044 | Socket Head Screw M8 X 20 | 5 |
| 515175718 | Battery Support | ||
| 2 | 503175800 | Washer | 2 |
| 2 | 207151444 | Hex. Screw M5 X 14 | 2 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 | 2 |
| XXXX | Not Available As Spare Part - Ground Wire | ||
| 1 | 207762044 | Carriage Bolt M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 250200000 | Serrated Lock Washer M6 | ||
| 1 | 207161644 | Hex. Screw M6 X 16 | 1 |
| XXXX | Not Available As Spare Part - Battery Wire | ||
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 515175489 | Battery Fuse Wire Includes 38 - 42. | ||
| 1 | 278000992 | Open Barrel | 1 |
| 1 | 410917200 | Fuse, 30 Amperes | 1 |
| 1 | 570151000 | Protection Cap | 1 |
| 1 | 278001771 | PROTECTOR CAP | 1 |
| 1 | 232081414 | Hex. Nut M8 | 1 |
| 1 | 234181401 | Lock Washer 8 mm | 1 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 1 | 410301203 | Battery YUASA YTX20L Includes 48 - 50. | 1 |
| XXXX | Not Available As Spare Part - Hex. Screw M6 | ||
| XXXX | Not Available As Spare Part - Washer | ||
| 515175643 | DEFLECTOR | ||
| 278001680 | Ground Cable Battery, no 6, meter) | ||
| 278001681 | Ground Cable Battery, No. 4, Meter | ||
| 278001690 | Cable Battery, no 6, meter) | ||
| 278001682 | Terminal 45°, Small Hole | ||
| 278001683 | TERMINAL 45, SMALL HOLE | ||
| 278001684 | TERMINAL 90, SMALL HOLE | ||
| 278001685 | FLAT TERMINAL, BIG HOLE | ||
| 278001686 | TERMINAL 45, BIG HOLE | ||
| 278001687 | TERMINAL 90, BIG HOLE | ||
| 278001688 | FLAT TERMINAL | ||
| 1 | 219704447 | Was 710000483 Heat Shrink Tubing | 1 |
| 529035730 | Crimp Plier | ||
| 1 | 515175475 | Battery Strap | 1 |
| 415079200 | Hose |
