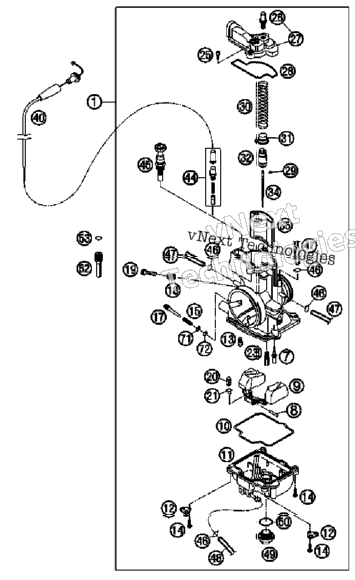

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 54831101044 | CARBURETOR PWK36-S AG ONLY FOR EXC-E AUS 04, As Required | ||
| 1 | 54831101844 | CARB. KEIH. PWK 36S AG FK24 08, As Required | 1 |
| 54831201044 | CARB. KEIH. PWK 36S AG FK26 ONLY FOR EXC-E EU 08, As Required | ||
| 1 | 54531607035 | IDLE JET 35 KEIHIN As Required | 1 |
| 1 | 54531607038 | IDLE JET 38 KEIHIN As Required | 1 |
| 1 | 54531607040 | IDLE JET 40 KEIHIN As Required | 1 |
| 1 | 54531607042 | IDLE JET 42 KEIHIN As Required | 1 |
| 1 | 54531607045 | IDLE JET 45 KEIHIN As Required | 1 |
| 1 | 54531607048 | IDLE JET 48 KEIHIN As Required | 1 |
| 1 | 54531607050 | IDLE JET 50 KEIHIN As Required | 1 |
| 1 | 54831007138 | IDLE JET SIZE 38X38 KEIHIN As Required | 1 |
| 1 | 57331008000 | ARM PIN FLOAT | 1 |
| 1 | 57331009000 | FLOAT CPL. | 1 |
| 1 | 54831010000 | GASKET FLOAT CHAMBER | 1 |
| 1 | 54831011000 | FLOAT CHAMBER PWK38-S AG | 1 |
| 2 | 54531612100 | RETAINING PLATE FOR BLEEDER | 2 |
| 1 | 54831051050 | STARTER JET 50 KEIHIN As Required | 1 |
| 1 | 54831051085 | STARTER JET 85 KEIHIN As Required | 1 |
| 4 | 0016040163 | HH COLLAR SCREW M 4X16 WS=6 | 4 |
| 1 | 54531615000 | SPRING FOR ADJUSTMENT SCREW | 1 |
| 1 | 54531617000 | ADJUSTMENT SCREW | 1 |
| 1 | 54631118000 | SPRING | 1 |
| 1 | 54631219100 | ADJUSTMENT SCREW M 5 | 1 |
| 1 | 54631220000 | FLOAT NEEDLE | 1 |
| 1 | 54531621000 | CLAMP | 1 |
| 1 | 54531623115 | MAIN JET 115 KEIHIN As Required | 1 |
| 1 | 54531623150 | MAIN JET 150 KEIHIN As Required | 1 |
| 1 | 54531623152 | MAIN JET 152 KEIHIN As Required | 1 |
| 1 | 54531623155 | MAIN JET 155 KEIHIN As Required | 1 |
| 1 | 54531623158 | MAIN JET 158 KEIHIN As Required | 1 |
| 1 | 54531623160 | MAIN JET 160 KEIHIN As Required | 1 |
| 1 | 54531623162 | MAIN JET 162 KEIHIN As Required | 1 |
| 1 | 54531623165 | MAIN JET 165 KEIHIN As Required | 1 |
| 1 | 54531623168 | MAIN JET 168 KEIHIN As Required | 1 |
| 1 | 54531623170 | MAIN JET 170 KEIHIN As Required | 1 |
| 1 | 54531623172 | MAIN JET 172 KEIHIN As Required | 1 |
| 1 | 54531623175 | MAIN JET 175 KEIHIN As Required | 1 |
| 2 | 54831025000 | SPECIAL-AH-SCREW M 4X12 | 2 |
| 1 | 54831029000 | THROTTLE CALBE HOLDER M6X0,75 | 1 |
| 1 | 54831127000 | CARBURETOR COVER PWK36-S AG | 1 |
| 1 | 54831028000 | GASKET FOR CARBURETOR COVER | 1 |
| 1 | 54531629000 | CLIP FOR JET NEEDLE | 1 |
| 1 | 54831030000 | SLIDING SPRING | 1 |
| 1 | 54631231000 | SPRING CAP | 1 |
| 1 | 54631232000 | NIPPLE | 1 |
| 1 | 54731134100 | JET NEEDLE KEIHIN N2ZW 08 08, As Required | 1 |
| 1 | 54731134200 | JET NEEDLE KEIHIN N2ZJ 08 08, As Required | 1 |
| 1 | 54731134600 | JET NEEDLE KEIHIN N2ZG 08 08, As Required | 1 |
| 1 | 54731134700 | JET NEEDLE KEIHIN N2ZH 08 08, As Required | 1 |
| 1 | 54731134800 | JET NEEDLE KEIHIN N2ZK 08 08, As Required | 1 |
| 1 | 54831034100 | JET NEEDLE KEIHIN N84K 08, As Required | 1 |
| 1 | 54631035000 | THROTTLE VALVE 7 FOR 38 PJ '00 00 | 1 |
| 1 | 54831078000 | CABLE F. COLD START ACT. 08 08 | 1 |
| 1 | 58502096044 | CONNECT. COLD START CABLE CPL. | 1 |
| 1 | 54631245000 | STARTER PISTON CPL. | 1 |
| 5 | 54531696000 | CLAMP 6 MM | 5 |
| 2 | 31007007101 | PVC-HOSE 4X6MM | 2 |
| 1 | 52031137001 | PVC-HOSE 3X5MM | 1 |
| 1 | 54531699000 | PLUG M 18X1 | 1 |
| 1 | 0770180230 | O-RING 18,00X2,30 NBR 70 | 1 |
| 1 | 50331029038 | SLIDE STOP L=38MM As Required | 1 |
| 52331029000 | SLIDE STOP L=36 08 08, As Required | ||
| 1 | 0770060018 | O-RING 6,07X1,78 FPM75 As Required | 1 |
| 1 | 54831071000 | WASHER ADJUSTING SCREW | 1 |
| 1 | 54831072000 | O-RING ADJUSTING SCREW | 1 |
