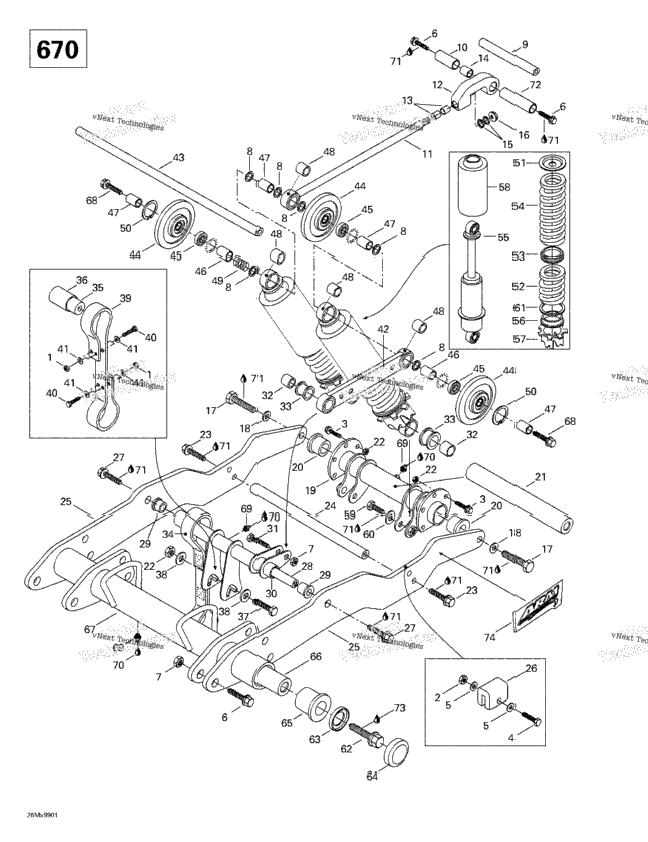

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4 | 228561045 | Elastic Stop Nut M6 Formula Deluxe 670. | 4 |
| 2 | 228551045 | Elastic Stop Nut M5 Formula Deluxe 670. | 2 |
| 10 | 732601284 | Hex. Flange Screw M8 x 25 Formula Deluxe 670. | 10 |
| 222054065 | SCREW-HEX.CAP DIN.931 Formula Deluxe 670. | ||
| 4 | 391301700 | Washer Formula Deluxe 670. | 4 |
| 8 | 207603044 | Hex. Flange Screw M10 X 30 Formula Deluxe 670. | 8 |
| 7 | 228501045 | Elastic Stop Nut M10 Formula Deluxe 670. | 7 |
| 6 | 503180400 | Washer Formula Deluxe 670. | 6 |
| 503180500 | Shaft Formula Deluxe 670. | ||
| 572102400 | Spacer Formula Deluxe 670. | ||
| 503183900 | Rear Arm Formula Deluxe 670. | ||
| 503184000 | Rear Arm Stopper Formula Deluxe 670. | ||
| 503184100 | Bushing Formula Deluxe 670. | ||
| 503184200 | Bushing Formula Deluxe 670. | ||
| 572104100 | Washer Formula Deluxe 670. | ||
| 1 | 228701045 | Flange Elastic Nut M10 Formula Deluxe 670. | 1 |
| 222075065 | Hex. Screw M14 x 50 Formula Deluxe 670. | ||
| 2 | 732900021 | Conical Spring Washer Formula Deluxe 670. | 2 |
| 503179200 | Shock Support Formula Deluxe 670. | ||
| 503179900 | Cushion Formula Deluxe 670. | ||
| 503179300 | Shaft Formula Deluxe 670. | ||
| 11 | 228581045 | Elastic Stop Nut M8 Formula Deluxe 670. | 11 |
| 732601304 | Hex. Flange Screw M12 x 30 Formula Deluxe 670. | ||
| 503189200 | Axle Formula Deluxe 670. | ||
| 503178900 | Arm Formula Deluxe 670. | ||
| 570067600 | Rubber Stopper Formula Deluxe 670. | ||
| 732601283 | SCREW-HEX.FLANGE DIN.6921 Formula Deluxe 670. | ||
| 503179500 | Shaft Formula Deluxe 670. | ||
| 503180900 | Cushion Formula Deluxe 670. | ||
| 503180000 | Pivot Formula Deluxe 670. | ||
| 1 | 222004565 | Hex. Cap Screw M10 X 45 Formula Deluxe 670. | 1 |
| 503180100 | Spacer Formula Deluxe 670. | ||
| 3 | 503181300 | CUSHION Formula Deluxe 670. | 3 |
| 503181200 | Belt Formula Deluxe 670. | ||
| 503180300 | Spacer Formula Deluxe 670. | ||
| 572102100 | Cushion Formula Deluxe 670. | ||
| 1 | 222088065 | Hex. Screw M8 x 80 Formula Deluxe 670. | 1 |
| 2 | 503183200 | Yellow, Washer Formula Deluxe 670. | 2 |
| 570068400 | Rubber Belt Formula Deluxe 670. | ||
| 4 | 222062565 | Hex. Screw M6 x 25 Formula Deluxe 670. | 4 |
| 503185100 | Washer Formula Deluxe 670. | ||
| 503179400 | Arm Formula Deluxe 670. | ||
| 503178800 | Shaft Formula Deluxe 670. | ||
| 572091700 | IDLER WHEEL 100 Includes 44 - 45. Formula Deluxe 670. | ||
| 3 | 405404500 | Ball Bearing 6205 Formula Deluxe 670. | 3 |
| 503178500 | Spacer Formula Deluxe 670. | ||
| 503178600 | Spacer Formula Deluxe 670. | ||
| 503184800 | Cushion Formula Deluxe 670. | ||
| 415088900 | Axle Spring Formula Deluxe 670. | ||
| 371910200 | CIRCLIP Formula Deluxe 670. | ||
| 503182300 | Spring Guide Formula Deluxe 670. | ||
| 415090300 | Spring Formula Deluxe 670. | ||
| 572103200 | Spring Spacer Formula Deluxe 670. | ||
| 415090400 | Spring Formula Deluxe 670. | ||
| 503189250 | Rear Shock Formula Deluxe 670. | ||
| 503185500 | Guide Ressort Formula Deluxe 670. | ||
| 503189205 | Cam Formula Deluxe 670. | ||
| 570067800 | Protector Formula Deluxe 670. | ||
| 2 | 222004565 | Hex. Cap Screw M10 X 45 Formula Deluxe 670. | 2 |
| 2 | 503183800 | Washer Formula Deluxe 670. | 2 |
| 503185600 | Washer Formula Deluxe 670. | ||
| 503185300 | Protector Support Formula Deluxe 670. | ||
| 2 | 572045900 | CAP Formula Deluxe 670. | 2 |
| 503179800 | Cushion Formula Deluxe 670. | ||
| 503179700 | Shaft Formula Deluxe 670. | ||
| 503179600 | Upper Tube Formula Deluxe 670. | ||
| 2 | 732601287 | Hex. Flange Screw M12 x 30 Formula Deluxe 670. | 2 |
| 3 | 408200700 | Grease Fitting Formula Deluxe 670. | 3 |
| 413706100 | LITHIUM GREASE, 400 GR Formula Deluxe 670. | ||
| 1 | 413707400 | Loctite 271, 10cc Formula Deluxe 670. | 1 |
| 572102500 | Spacer Formula Deluxe 670. | ||
| 1 | 413703000 | Loctite 242, 10 cc Formula Deluxe 670. | 1 |
| 516000221 | Warning Label | ||
| 516000222 | ARM" Decal L.H`Formula Deluxe 670.`` |
